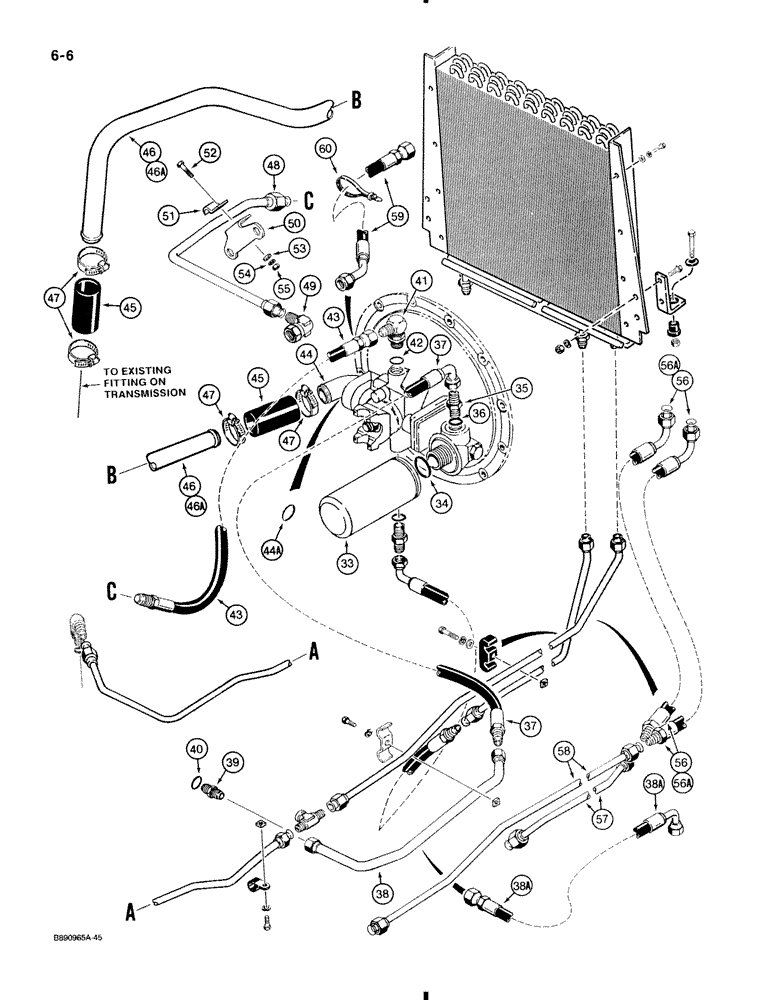

Запчасти Case 580K (6-006) - TORQUE CONVERTER AND TRANSAXLE, SHUTTLE COOLING SYSTEM (06) - POWER TRAIN

33

N9025

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY, filter, at torque converter, Includes: Ref. 34

1шт.

34

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

35

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

37

D141502

HOSE

torque converter charge outlet, 625 mm long, not used on models with PTO, see Ref. 38A

1шт.

38

D141691

TUBE

torque converter to transaxle, charge, not used on models with PTO, see Ref. 38A

1шт.

38a

D149339

HOSE ASSY.

HOSE, torque converter to transaxle charge, 1030 mm long, replaces Ref. 37 and 38 on models with PTO

1шт.

39

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, Includes: Ref. 40

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

41

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

adjustable, 90°, Includes: Ref. 42

1шт.

42

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

43

D141830

TUBE

HOSE, torque converter to transaxle tube, Ref. 48, lube, 750 mm long, if used

1шт.

44

A186721

FITTING

ELBOW barb stem, 90°, Includes: Ref. 44A

1шт.

44a

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk, Elbow

1шт.

45

D125962

HOSE

suction, 3-15/16", 100 mm long

2шт.

46

D142609

TUBE

suction, used on models without PTO, see Figure 6-030, Ref. 10, for tube guard

1шт.

46a

D149331

TUBE

suction, used on models with PTO, see Figure 6-030, Ref. 10, for tube guard

1шт.

47

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

48

D141828

TUBE

torque converter hose, Ref. 43, to transaxle, if used

1шт.

49

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Street, Attaches to tee on page 6-020, if used 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

1шт.

50

D145262

SUPPORT

BRACKET tube mounting, uses existing transaxle hardware, if used

1шт.

51

38188

CLAMP

tube to bracket, if used

1шт.

52

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If used Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

53

195-521

WASHER,5/16", SAE

flat, 5/16", if used

1шт.

54

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

1шт.

55

9635082

NUT,5/16" - 18, Gr 5

If used 5/16"-18, G5

1шт.

56

D146438

HOSE,12.7mm ID x 365mm L

at cooler inlet and outlet, 365 mm long, used on models without auxiliary hydraulics for optional rear hydraulic attachments, if used

2шт.

56a

D146772

HOSE

at cooler inlet and outlet, 400 mm long, used on models with auxiliary hydraulics for optional rear hydraulic attachments, if used

2шт.

57

D146437

TUBE

torque converter hose to cooler inlet hose, used with Ref. 56 hose, if used

1шт.

58

D146435

TUBE

transaxle tube to cooler outlet hose, used with Ref. 56 hose, if used

1шт.

59

D146666

HOSE

torque converter to transaxle, lube, 1050 mm long, replaces Ref. 43 hose and 48 tube and clamping hardware used on some models, if used

1шт.

60

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15"

1шт.
