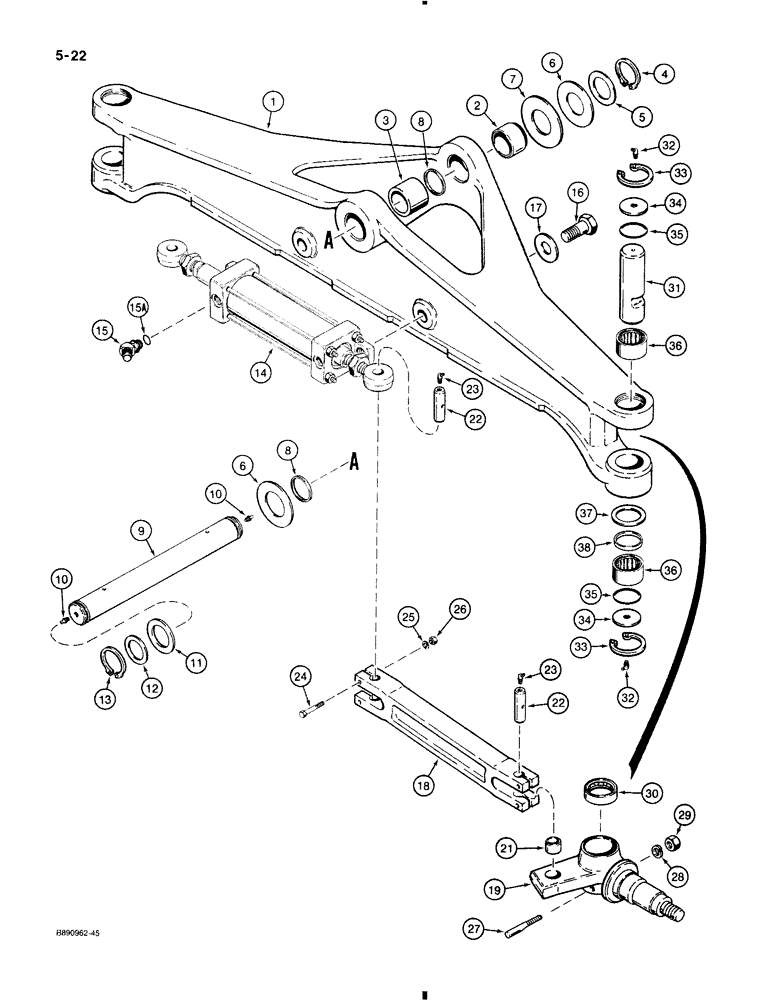

Запчасти Case 580K (5-022) - FRONT AXLE AND SPINDLES (05) - STEERING

1

D138954

AXLE, FRONT

AXLE ASSEMBLY, front, with single rear bushing, Includes: Ref. 2 and 3

1шт.

D138954R

REMAN-FRT AXLE wo DL

580K ASN JJG0020000

1шт.

D138954C

CORE-FRONT AXLE

Return Number

1шт.

2

D137345

BUSHING,50.19mm ID x 60mm OD x 36mm L

axle, front

1шт.

3

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

axle, rear

1шт.

4

800-50050

SNAP RING,M50, Ext, Hvy

RING snap, axle pivot pin retaining, front

1шт.

5

195-2155

WASHER,2 1/16" x 3" x .109"

flat, 2" bolt size, 2-1/16 x 3 x 1/8"

1шт.

6

D143408

WASHER,51.56mm ID x 101.6mm OD x 1.98mm Thk

flat, spacer, 2-1/32 x 4 x 1/16", Replaces: D37449

1шт.

7

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

thrust, front, 2-1/16 x 4-1/2 x 3/16"

1шт.

8

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

grease

2шт.

9

D127445

PIVOT PIN,50mm OD x 444mm L

PIN axle pivot

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

11

S49415

WASHER

special

1шт.

12

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat, 1-3/4" bolt size, 1-13/16 x 2-1/2 x 1/8"

1шт.

13

D25280

SNAP RING,#175, Ext

Ring, Snap, , axle pivot pin, rear #175, Ext

1шт.

14

G107720

CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke

ASSEMBLY, steering, two wheel drive front axle, see Figure 5-020

1шт.

14

G107720R

REMAN-HYD CYLINDER

580K,ASN JJG0020000

1шт.

14

G107720C

CORE-HYD CYLINDER

Return Number

1шт.

15

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

adjustable, 45°, Incl. Ref 15A

2шт.

15a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

16

113-923

BOLT,Hex, 1" - 8 x 2-1/4", Gr 5, Full Thd

2шт.

17

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, hardened, 1"

2шт.

18

D123806

LINK, CONNECTING

LINK steering

2шт.

19

D125340

SPINDLE

ASSEMBLY, right hand

1шт.

20

D125341

SPINDLE

ASSEMBLY, left hand, Includes: Ref. 21, not shown

1шт.

21

D127507

BUSHING,22.33mm ID x 32.25mm OD x 25mm L

D125340 or D125341 spindle

1шт.

22

D123682

PIN

steering link

4шт.

23

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING grease, self tapping, 1/8" pipe, 45°

4шт.

24

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

27

D57486

PIN

- kingpin lock

2шт.

Part of kingpin kit P/N D103626.

1шт.

28

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

29

129-125

NUT,1/2"-20, G5

2шт.

30

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING roller, spindle

2шт.

Part of kingpin kit P/N D103626.

1шт.

31

D123865

PIVOT PIN,50.8mm OD x 168.91mm L

KINGPIN front axle

2шт.

Part of kingpin kit P/N D103626.

1шт.

32

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING grease, self tapping, 1/8" pipe, 45°

4шт.

Part of kingpin kit P/N D103626.

1шт.

33

A27463

SNAP RING,2.375", Int, #237

Brg 2.375", Int, #237

4шт.

Part of kingpin kit P/N D103626.

1шт.

34

D72371

WASHER,3.17mm ID x 60.2mm OD x 4.57mm Thk

SPACER kingpin

4шт.

Part of kingpin kit P/N D103626.

1шт.

35

A23904

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

-139, 90 Duro, 2.175" ID x .103" Thk, King pin seal

4шт.

Part of kingpin kit P/N D103626.

1шт.

36

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING needle, kingpin

4шт.

Part of kingpin kit P/N D103626.

1шт.

37

D72372

WASHER,50.85mm ID x 69.6mm OD x 0.81mm Thk

thrust, bearing

2шт.

Part of kingpin kit P/N D103626.

1шт.

38

D61297

SEAL,50.8mm ID x 60.22mm OD x 6.4mm Thk

oil

2шт.

Part of kingpin kit P/N D103626.

1шт.

D103626

PACKAGE

KIT kingpin, Includes: Ref. 27 and 30 - 38, quantity in kit services one side of axle

1шт.
