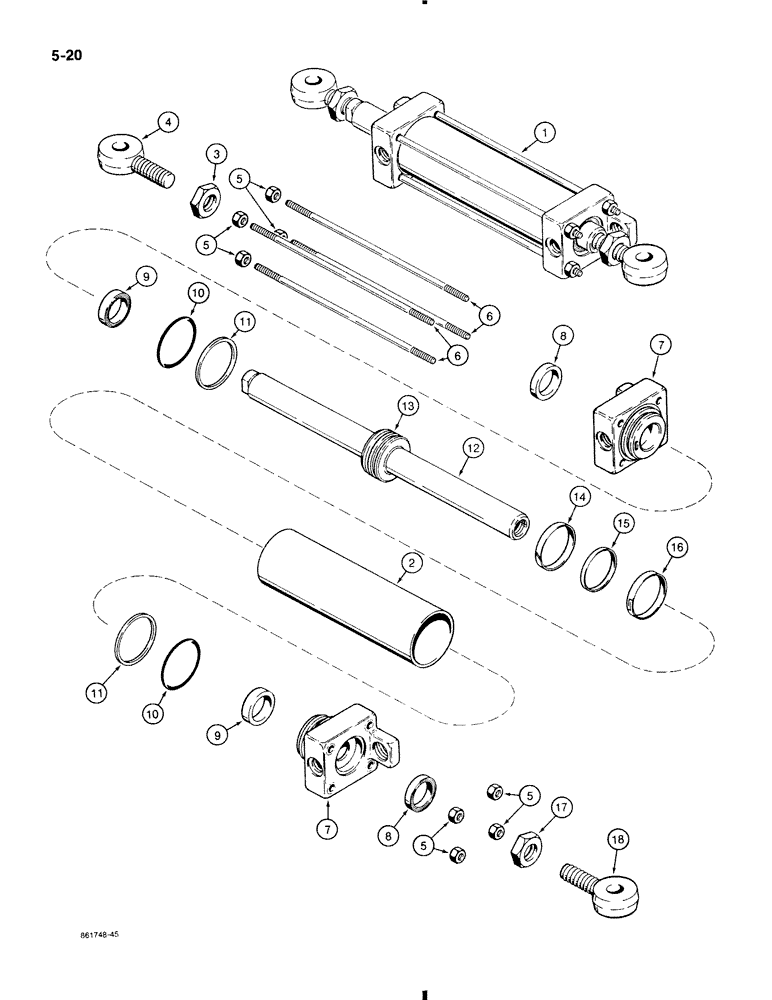

Запчасти Case 580K (5-020) - STEERING CYLINDER, TWO-WHEEL DRIVE FRONT AXLE (05) - STEERING

1

G107720

CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke

ASSEMBLY, stroke, steering, two wheel drive front axle, 2-3/4", 70 mm ID x 6-45/64", 170 mm, Includes: Ref. 1 - 18

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

G107720R

REMAN-HYD CYLINDER

580K,ASN JJG0020000

1шт.

1

G107720C

CORE-HYD CYLINDER

Return Number

1шт.

2

G106808

TUBE,69.85 mm ID x 79.76 mm OD x 233.60 mm L

cylinder

1шт.

3

129-369

JAM NUT,Jam, 7/8"-14, G5

LH thread Jam, 7/8"-14, G5

1шт.

4

G106832

BALL JOINT

EYE rod, left hand thread

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

6

G106817

TIE-ROD

ROD tie, cylinder, 13-5/16", 338 mm long

4шт.

G109996

GLAND

ASSEMBLY, cylinder, Includes: Ref. 7 - 11

2шт.

7

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

8

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod, outer

1шт.

Part of seal kit P/N G110045.

1шт.

9

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-cup with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G110045.

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

gland

1шт.

Part of seal kit P/N G110045.

1шт.

11

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N G110045.

1шт.

G107721

ROD ASSY.

ROD ASSEMBLY, piston, 1-1/2", 38 mm diameter, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

ROD piston

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON cylinder

1шт.

14

G105187

RING

wear, piston

1шт.

Part of seal kit P/N G110045.

1шт.

15

G104439

RING

seal, inner

1шт.

Part of seal kit P/N G110045.

1шт.

16

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

expandable, outer, piston

1шт.

Part of seal kit P/N G110045.

1шт.

17

129-169

JAM NUT,Jam, 7/8"-14, G5

RH thread Jam, 7/8"-14, G5

1шт.

18

G106813

BALL JOINT

EYE rod, right hand thread

1шт.

G110045

KIT

seal, Includes: Ref. 8 - 11 and 14 - 16

1шт.
