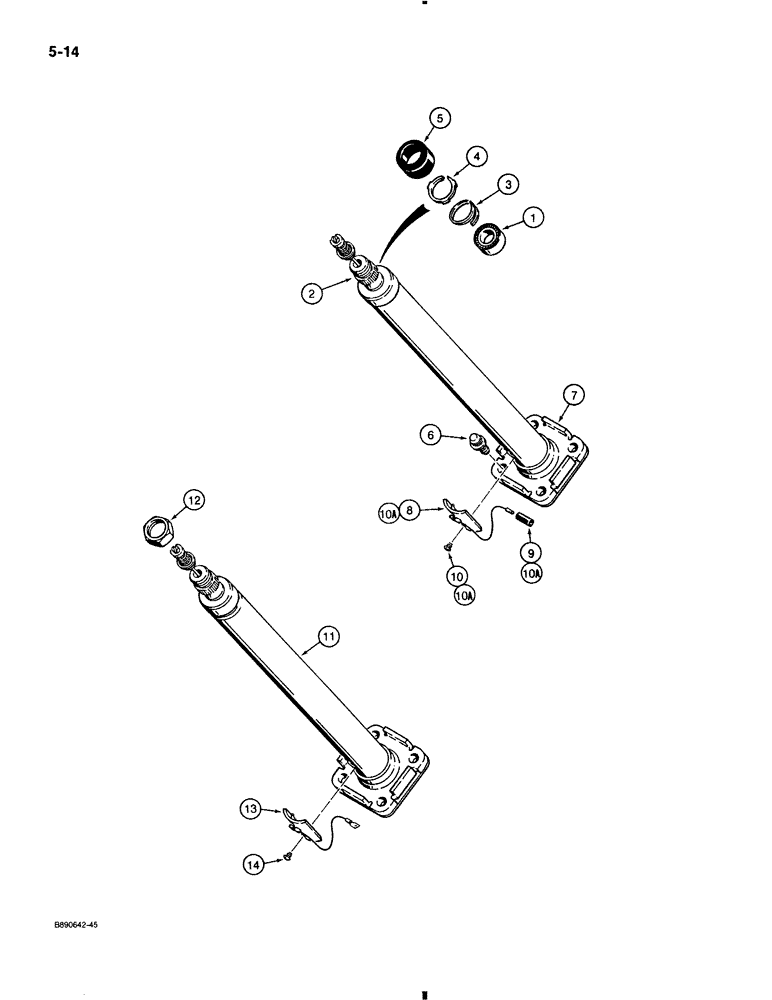

Запчасти Case 580K (5-014) - STEERING COLUMNS, MODELS WITH HORN (05) - STEERING

D133510

STEERING COLUMN

COLUMN ASSEMBLY, steering, may receive either Eaton or Danfoss complete steering column assembly, see below for service of internal parts, Includes: steering column assembly below and Ref. 1 - 14

1шт.

NSS

NOT SOLD SEPARAT

COLUMN ASSEMBLY, steering, Eaton No. 204-1067-007, 18-1/8", 460 mm long, replaces Eaton No. 204-1067-005, if used, Includes: Ref. 1 - 10A

1шт.

1

NSS

NOT SOLD SEPARAT

ROLLER BEARING steering shaft

1шт.

The roller bearing is NSS in D133510 column assembly as the bearing is held in by a crimping process done at the supplier for safety reasons.

1шт.

2

NSS

NOT SOLD SEPARAT

COLUMN steering shaft, with wire

1шт.

3

NSS

NOT SOLD SEPARAT

RING retaining, bearing

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER bearing

1шт.

5

S115351

CAP

shaft

1шт.

6

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

BOLT ferry head, 3/8 NC x 3/4", grade 8, not required, see Figure 5-002

2шт.

7

NSS

NOT SOLD SEPARAT

FLANGE tube

1шт.

S109356

BRUSH, COMMUTATOR

BRUSH ASSEMBLY, horn, Eaton No. 204-1067-005 column, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

BRUSH horn

1шт.

9

S63473

CONNECTOR, ELEC

CONNECTOR horn, attaches to front console harness

1шт.

10

187-1116

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/4"

SCREW pan Phillips head, self-tapping, No. 10 NC x 1/4", brush retaining, Eaton No. 204-1067-005 column

2шт.

10a

D145713

KIT

brush, includes (2) screws and (1) brush which are not serviced separately, Eaton No. 204-1067-007 column

1шт.

NSS

NOT SOLD SEPARAT

STEERING COLUMN ASSEMBLY, Danfoss type No. OTPB400, code No. 150X1315, 17-15/16", 456 mm long, if used, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

COLUMN steering shaft, with wire

1шт.

12

N14118

SPECIAL NUT

special

1шт.

N14216

BRUSH, COMMUTATOR

BRUSH ASSEMBLY, horn, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

BRUSH horn

1шт.

14

983-4005

SCREW,Pan Slotted, M4 x 5mm, Cl 4.8

slotted pan head, plated, 4 mm x 5 mm

2шт.
