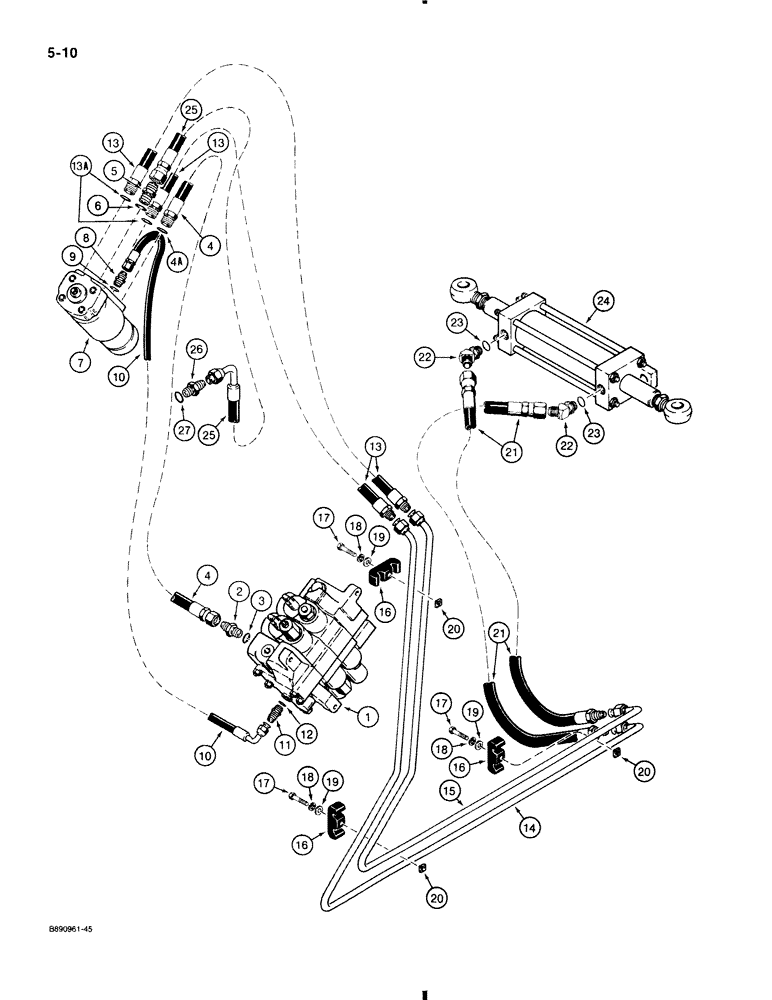

Запчасти Case 580K (5-010) - STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY, loader control, for correct assembly and components, see Figures 8-084 and 8-086

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, Incl. Ref 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Connector

1шт.

4

D143189

HOSE

steering pressure, 24-5/8", 625 mm long, loader control valve to steering control valve lower right-hand port, Includes: Ref. 4A

1шт.

4a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Hose

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, Incl. Ref 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Connector

1шт.

7

D135338

PUMP, HYDRAULIC

VALVE ASSEMBLY, control, steering, see Figures 5-016 and 5-018

1шт.

8

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER straight, male, Incl. Ref. 9

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Adapter

1шт.

10

D135246

HOSE

steering pilot, 25-5/8", 650 mm long, steering control valve small center port to loader control valve

1шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR straight, male, Incl. Ref. 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Connector

1шт.

13

D143188

HOSE ASSY.

HOSE, 22-7/16", 570 mm long, steering control valve upper and lower left-hand ports to tubes, Includes: Ref. 13A

2шт.

13a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Hose

1шт.

14

D143207

TUBE

lower, to steering cylinder right-hand port hose

1шт.

15

D143205

TUBE

upper, to steering cylinder left-hand port hose

1шт.

16

D120679

CLAMP,Tube, 1/2"

tube

3шт.

17

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

19

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

3шт.

20

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC

3шт.

21

D124648

HOSE

19-11/16", 500 mm long, at steering cylinder

2шт.

22

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

adjustable, 45°, Incl. Ref 23

2шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

24

G107720

CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke

ASSEMBLY, steering, see Figure 5-020

1шт.

24

G107720R

REMAN-HYD CYLINDER

580K,ASN JJG0020000

1шт.

24

G107720C

CORE-HYD CYLINDER

Return Number

1шт.

25

D133857

HOSE

steering return, 24-5/8", 625 mm long, steering control valve upper right-hand port to hydraulic oil filter

1шт.

26

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR straight, male, Incl. Ref. 27

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Connector

1шт.
