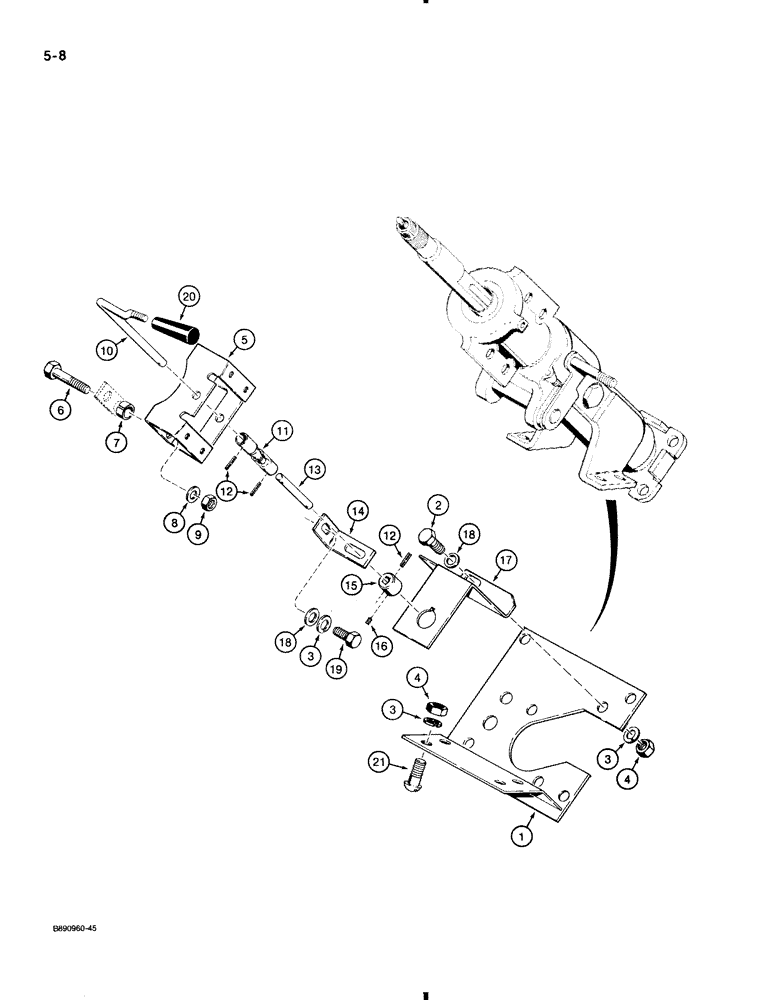

Запчасти Case 580K (5-008) - STEERING COLUMN AND TURN SIGNAL, SPECIAL PARTS USED ON MODELS WITH TILT/TELESCOPING STEERING COLUMN (05) - STEERING

1

D143769

PLATE ASSY.

BRACKET steering column

1шт.

2

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

3

492-11038

LOCK WASHER,3/8"

6шт.

4

425-106

NUT,3/8"-16, Cl 5

5шт.

5

D143762

BRACKET

upper, turn signal

1шт.

6

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

hex, plated, 3/8"-16 NC x 1-3/4"

4шт.

7

D76208

SPACER

upper bracket to steering column

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

425-106

NUT,3/8"-16, Cl 5

4шт.

10

D144544

LEVER turn signal

1шт.

11

D144516

JOINT

U-JOINT turn signal

1шт.

12

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, 1/8" x 11/16", Slotted

3шт.

13

D138515

ROD

turn signal

1шт.

14

D140501

BRACKET

SUPPORT turn signal bracket

1шт.

15

D138517

COLLAR

turn signal rod

1шт.

16

178-830

SET SCREW,Hex Soc, #10-24 x 3/8"

SCREW set, hex headless, cup point, special, No. 10 - 24 NC x 3/8"

1шт.

17

D138578

BRACKET

lower, turn signal

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, plated, 3/8"

2шт.

19

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

hex, 3/8 NF x 1"

1шт.

20

D136995

KNOB

turn signal lever

1шт.

21

173-247

SCREW machine, round head, 3/8 NC x 3/4"

4шт.
