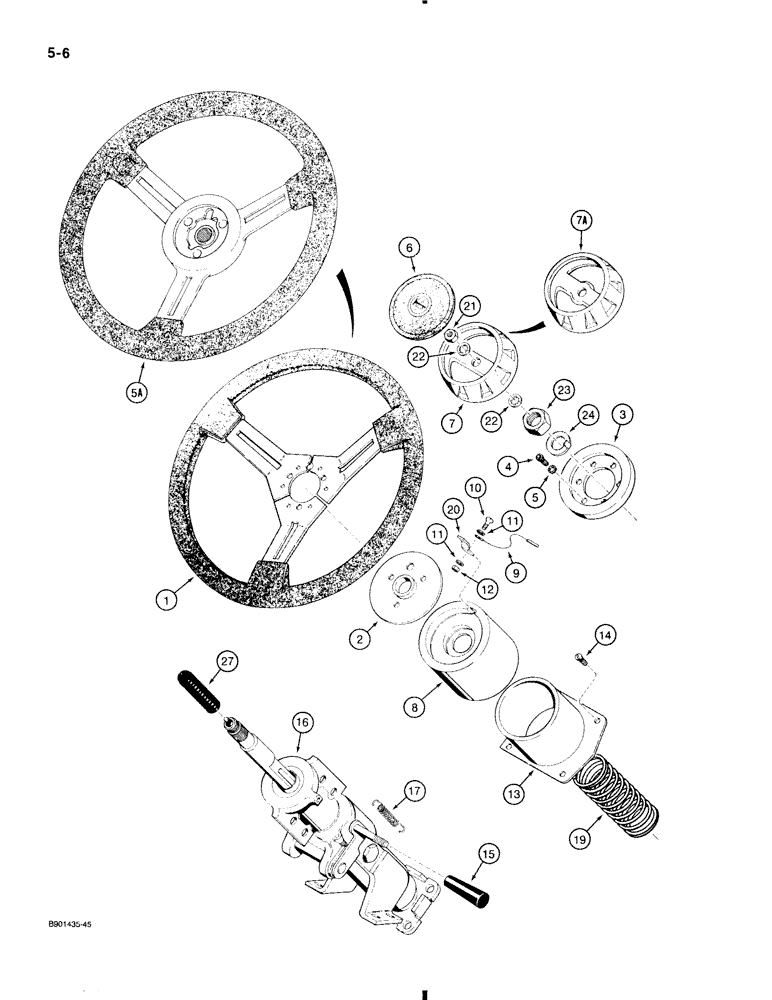

Запчасти Case 580K (5-006) - STEERING WHEEL AND COLUMN, SPECIAL PARTS USED ON MODELS WITH TILT/TELESCOPING STEERING COLUMN (05) - STEERING

D139645

WHEEL

ASSEMBLY, steering, no longer available, order D148204 wheel assembly, Ref. 5A, Includes: Ref. 1 - 5

1шт.

1

D148204

WHEEL (STEERING)

WHEEL steering, Replaces: D147465

1шт.

2

D147466

HUB

lower

1шт.

3

D147464

SPACER

ring, upper

1шт.

4

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

hex socket, 8-1.25 x 20 mm

3шт.

5

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch, plated

3шт.

5a

D148204

WHEEL (STEERING)

WHEEL steering, component parts not serviced separately

1шт.

6

D141979

BUTTON

horn actuating

1шт.

7

D141980

OIL SEAL

RING lock, no longer available, order D148211 ring, Ref. 7A

1шт.

7a

D148211

OIL SEAL

RING lock

1шт.

8

D139780

COVER

column, outer

1шт.

9

D141182

ELECTRICAL WIRE

WIRE ground, horn, attaches to horn button

1шт.

10

182-5

SCREW,Sl Pan Hd, #4 - 40 x 3/8"

machine, pan head, slotted, No. 4-20 NC x 3/8"

1шт.

11

193-22

LOCK WASHER,Int Tooth, #4

WASHER, LOCK, , Replaces 193-81 Int Tooth, #4

2шт.

12

129-13

NUT,#4-40

1шт.

13

D139781

COVER

column, inner

1шт.

14

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips, slotted, No. 10 NC x 1/2"

4шт.

15

D136995

KNOB

tilt/telescoping control lever

1шт.

D138501

COLUMN JACKET

COLUMN ASSEMBLY, tilt/telescoping, steering, Includes: Ref. 16 - 26

1шт.

16

NSS

NOT SOLD SEPARAT

COLUMN tilt/telescoping, steering

1шт.

For horn, Ref. 25, D147341 brush assembly and Ref. 26, D147554 plate assembly fit where Ref. 16 is pointing on the art. Both parts are available.

1шт.

17

D147552

SPRING

small, lower column

3шт.

18

D147553

SPRING

small, side, not shown

2шт.

19

D147550

SPRING

large, upper column

1шт.

20

D141183

CONTACT

SPRING wire ground

1шт.

21

131-497

LOCK NUT,3/8"-16, GC

NUT hex, self-locking, plated, 3/8" - 16 NC

1шт.

22

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

23

N14864

NUT

hex, special, no longer used, service with F19646, Ref. 3 on Figure 5-002

1шт.

24

D147549

BRACKET

RETAINER lock

1шт.

25

D147341

BRUSH ASSY.

BRUSH ASSEMBLY, horn, component parts not serviced separately, not shown

1шт.

For horn, Ref. 25, D147341 brush assembly and Ref. 26, D147554 plate assembly fit where Ref. 16 is pointing on the art. Both parts are available.

1шт.

26

D147554

PLATE ASSY.

PLATE ASSEMBLY, housing, component parts not serviced separately, not shown

1шт.

For horn, Ref. 25, D147341 brush assembly and Ref. 26, D147554 plate assembly fit where Ref. 16 is pointing on the art. Both parts are available.

1шт.

27

D143637

GUARD

steering column

1шт.
