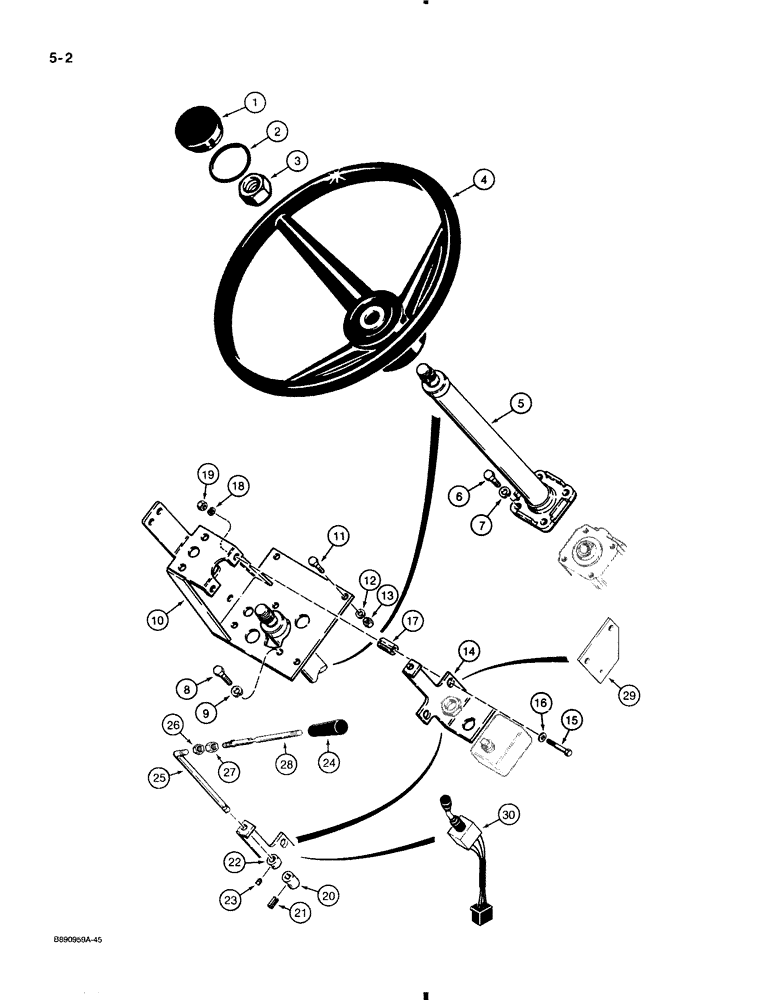

Запчасти Case 580K (5-002) - STEERING WHEEL, COLUMN AND TURN SIGNAL, USED ON MODELS WITHOUT TILT/TELESCOPING STEERING COLUMN (05) - STEERING

1

A62210

PLUG

CAP steering wheel

1шт.

This part is for use on models without a horn. For models with a horn with the horn button on the steering wheel, see Figure 5-004 for steering wheel, column and horn button. Other parts listed on this page are common to models with or without a horn.

1шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

cap

1шт.

This part is for use on models without a horn. For models with a horn with the horn button on the steering wheel, see Figure 5-004 for steering wheel, column and horn button. Other parts listed on this page are common to models with or without a horn.

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT special, steering wheel retaining

1шт.

4

A65544

STEERING WHEEL

- Tractor

1шт.

This part is for use on models without a horn. For models with a horn with the horn button on the steering wheel, see Figure 5-004 for steering wheel, column and horn button. Other parts listed on this page are common to models with or without a horn.

1шт.

5

D135411

STEERING COLUMN

COLUMN ASSEMBLY, steering, without horn wire, see Figure 5-012

1шт.

This part is for use on models without a horn. For models with a horn with the horn button on the steering wheel, see Figure 5-004 for steering wheel, column and horn button. Other parts listed on this page are common to models with or without a horn.

1шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

D134527

BRACKET

steering column

1шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

13

9635082

NUT,5/16" - 18, Gr 5

4шт.

14

D133224

BRACKET

turn signal, if used

1шт.

15

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

16

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

2шт.

17

D121476

BUSHING

SPACER bracket

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

2шт.

20

D126446

COUPLING

COUPLER, rod to turn signal switch, if used

1шт.

21

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, , If used 1/8" x 11/16", Slotted

1шт.

22

D126453

COLLAR

turn signal rod, if used, Includes: Ref. 23

1шт.

23

83-3254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW set, hex socket headless, cup point, 1/4" - 20 NC x 3/16", Replaces: 83-43

1шт.

24

D136995

KNOB

turn signal lever, if used

1шт.

25

D140239

ROD

turn signal, if used

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

If used 5/16"-18, G5

1шт.

27

D140966

NUT

special, if used

1шт.

28

D140513

LEVER

turn signal, if used

1шт.

29

D147686

BRACKET

PLATE turn signal, if used

1шт.

30

E46938

FLASHER SWITCH

LEVER switch, turn signal and horn, attaches to front harness, replaces Ref. 20 - 28 on models with horn in turn signal lever

1шт.
