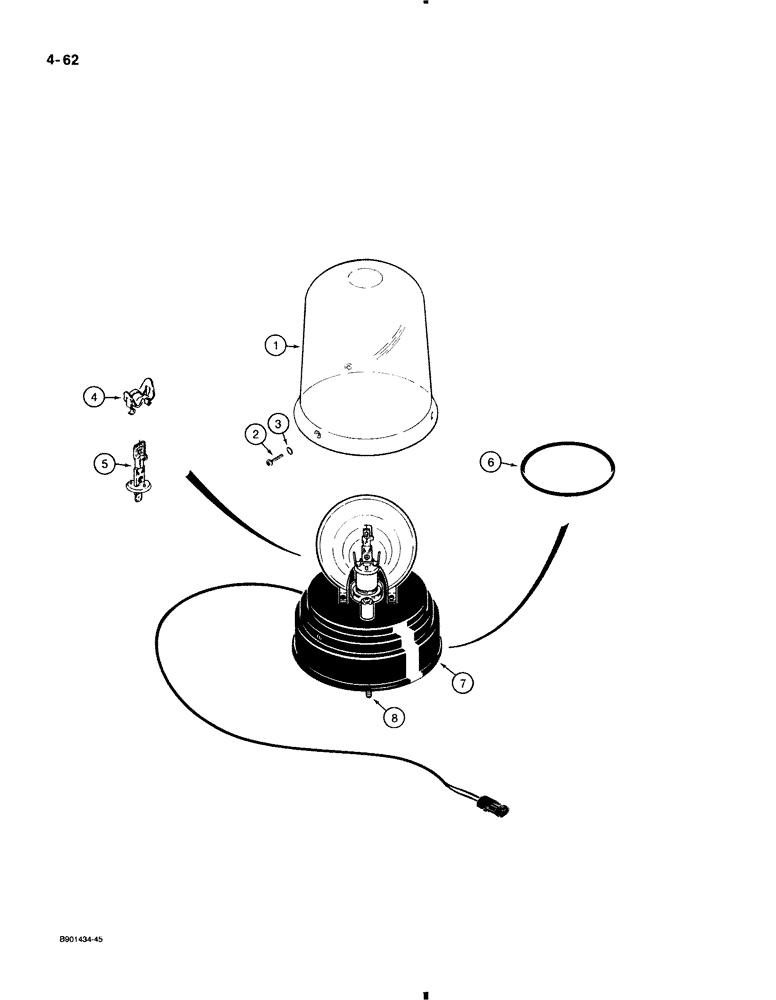

Запчасти Case 580K (4-062) - ROTATING BEACON, USED ON CAB OR CANOPY MODELS (04) - ELECTRICAL SYSTEMS

D147114

LIGHT, WARNING

BEACON ASSEMBLY, rotating, Includes: Ref. 1 - 8

1шт.

1

A187542

LENS

beacon, amber

1шт.

2

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

- drive, Lens mounting, No. 8 x 1/2"

3шт.

3

S5598

O-RING,0.106" ID x 0.218" OD x 0.73"

SEAL lens mounting screw

3шт.

4

NSS

NOT SOLD SEPARAT

CLIP bulb

1шт.

5

3217312R1

BULB,H1, 12V, 55W

12V - 55W, Halogen, Rotating beacon

1шт.

6

A187575

O-RING

Drive Motor, Rotating Beacon

1шт.

7

NSS

NOT SOLD SEPARAT

BASE ASSEMBLY, with drive motor, rotating beacon

1шт.

8

814-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex, 6 mm - 1.0 x 20 mm

3шт.
