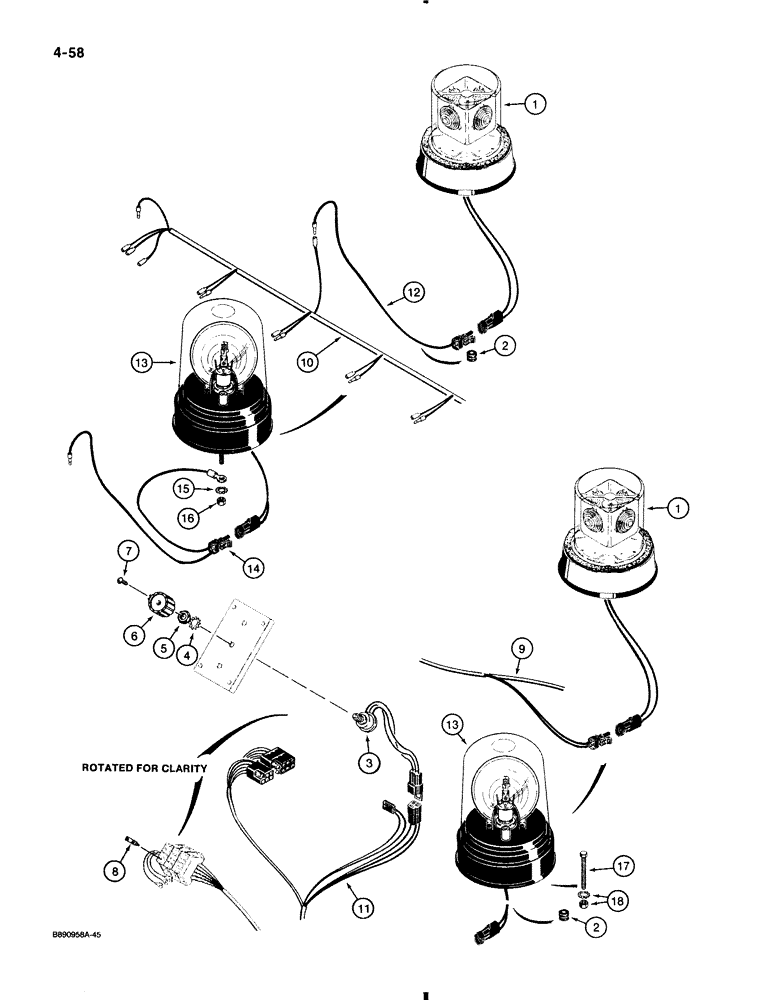

Запчасти Case 580K (4-058) - ROTATING BEACON AND CIRCUIT (04) - ELECTRICAL SYSTEMS

1

D137275

LIGHT, WARNING

BEACON ASSEMBLY rotating, used on cab or canopy models, see Figure 4-060, no longer available, canopy models order Ref. 13 - 16 and 8-68912 instructions, cab models order Ref. 2, 13, 17 and 18 plus 8-68921 instructions

1шт.

2

A23870

GROMMET

wire

1шт.

D138377

SWITCH

ASSEMBLY, rotating beacon, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

SWITCH rotating beacon

1шт.

4

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER external tooth lock, plated, 1/2"

1шт.

5

129-125

NUT,1/2"-20, G5

1шт.

6

A141735

KNOB

rotating beacon switch, see Figure 9-188 for rotating beacon symbol decal

1шт.

7

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

machine, pan head slotted, No. 8 NC x 1/2"

1шт.

8

A149801

FUSE,Lt Blue, 15 Amp

15 amperes, mounts in fuse holder in side instrument console harness

1шт.

9

REF

INSTRUCTION

HARNESS cab models, see Figure 9-154 for cab harness options

1шт.

10

D146580

HARNESS

ROPS canopy models

1шт.

11

REF

INSTRUCTION

HARNESS side console, right-hand, see Figure 4-028 for side console harness options

1шт.

12

D140447

ELECTRICAL WIRE

WIRE adapting, used on canopy models with D137275 beacon, if used

1шт.

13

D147114

LIGHT, WARNING

BEACON ASSEMBLY, rotating, used on cab or canopy models, see Figure 4-062

1шт.

14

D148584

ELECTRICAL WIRE

WIRE adapting, used on canopy models with D147114 beacon

1шт.

15

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER internal-external tooth lock, ground, 1/4", used with D148584 wire on canopy models

1шт.

16

495-21031

WASHER,1/4"

flat, ground, , used with D148584 wire on canopy models 1/4"

1шт.

17

113-75

BOLT,Hex, 1/4" - 20 x 3", Gr 5, Full Thd

hex, full thread, 1/4 NC x 3", replaces existing beacon studs, used on cab models

3шт.

18

193-1006

NUT,Keps, w/LW, 1/4"-20

hex, with external tooth lock washer, 1/4" NC, used with Ref. 17 on cab models

3шт.
