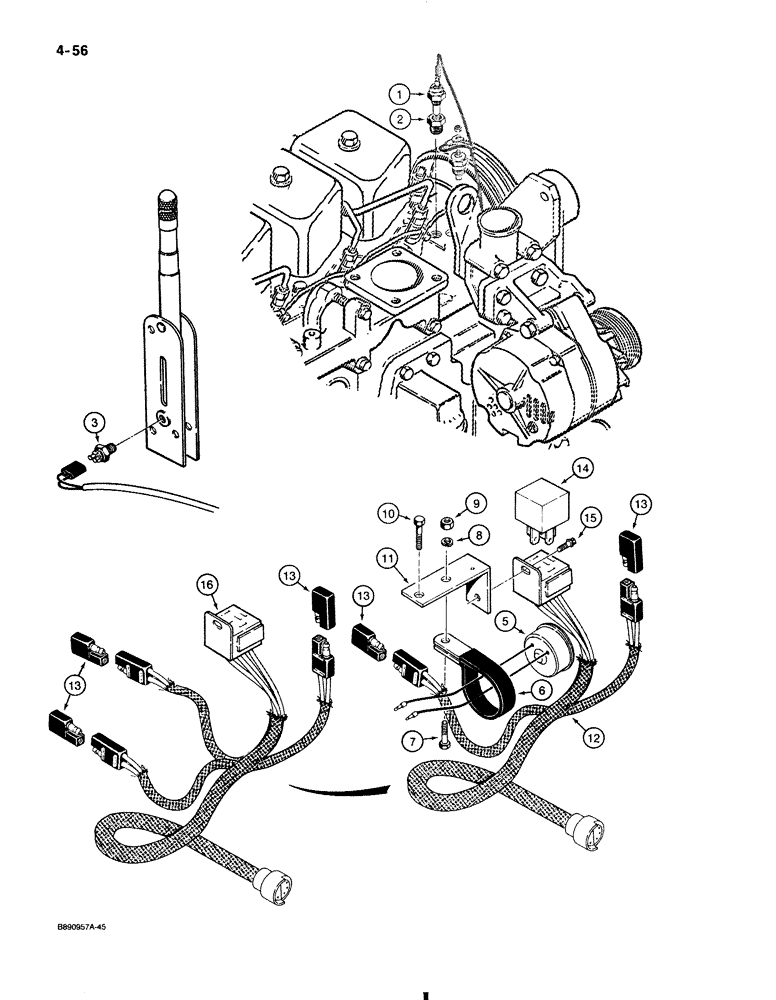

Запчасти Case 580K (4-056) - SPECIAL PARTS USED ON MODELS W/AUDIBLE WARNING ALARM FOR WATER TEMP/ENG OIL PRESSURE & PARKING BRAKE (04) - ELECTRICAL SYSTEMS

1

D70163

SWITCH,1/4" - 18 NPT, 230 Degrees F

engine coolant temperature, replaces existing engine block plug

1шт.

2

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

1/2" x 1/4" NPT

1шт.

3

D136514

SWITCH

parking brake, mounts in parking brake lever on Figure 7-012 and attaches to side instrument panel harness

1шт.

5

D137468

BUZZER

ALARM warning, for engine water temperature, engine oil pressure and parking brake

1шт.

6

D120561

CLAMP

warning alarm, Serial Range: mounting-bracket

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Alarm clamp to bracket Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

8

492-11038

LOCK WASHER,3/8"

1шт.

9

425-106

NUT,3/8"-16, Cl 5

1шт.

10

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

D103387

KIT

service, audible warning alarm, includes instructions, Includes: Ref. 11 - 16

1шт.

11

D143873

SUPPORT

BRACKET alarm mounting, uses existing mounting bolt, mounts under side console

1шт.

12

D143962

HARNESS

WIRE alarm, uses two diodes, attaches to side instrument console harness, no longer available, no longer part of kit, replaced by D146664 wire and (1) L71879 diode, Ref. 13 and 16

1шт.

13

L71879

DIODE ELEMENT,400V, 3A

DIODE isolation

2-3шт.

14

D128310

RELAY

alarm

1шт.

The D128310 relay is marked 40 amp on the relay. This is the resistance rating. The inductive rating is 30 amps. We use this inductive rating in our literature.

1шт.

15

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW hex slotted washer, self-tapping, No. 10 NC x 3/8", relay mounting

1-2шт.

16

D146664

HARNESS

WIRE alarm, uses three diodes, attaches to side instrument console harness

1шт.
