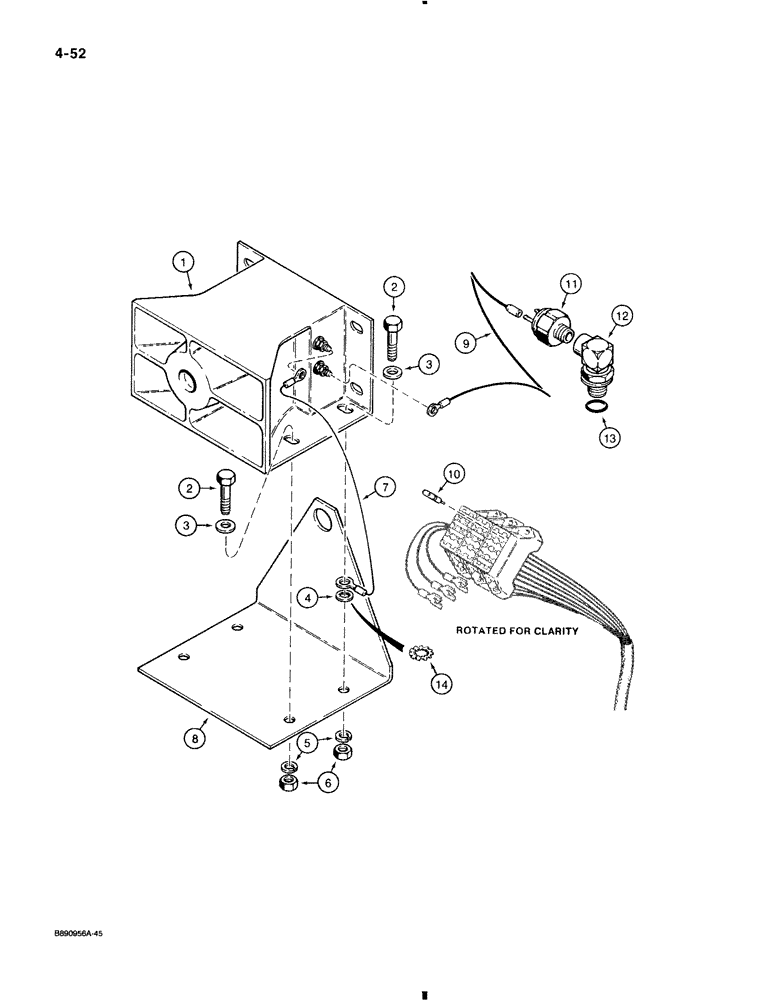

Запчасти Case 580K (4-052) - BACKUP ALARM, MODELS WITHOUT PTO (04) - ELECTRICAL SYSTEMS

1

D121972

ALARM

backup, electric

1шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex head, plated, 5/16" - 18 NC x 1"

4шт.

3

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

4шт.

4

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , No longer used, order 493-11039, Ref. 14 Int Tooth, 5/16"

1шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

425-105

NUT,5/16"-18, G5

hex, plated, 5/16" - 18 NC

4шт.

7

D70125

ELECTRICAL WIRE

WIRE ground

1шт.

8

D145812

SUPPORT

BRACKET backup alarm mounting, mounts to transaxle with existing bolt

1шт.

9

D144517

ELECTRICAL WIRE

WIRE backup alarm

1шт.

10

A149798

FUSE

5 ampere, at fuse block

1шт.

11

D139904

SWITCH

pressure, backup alarm

1шт.

12

D144477

FITTING

ELBOW, 90°, at transaxle, Includes: Ref. 13

1шт.

14

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
