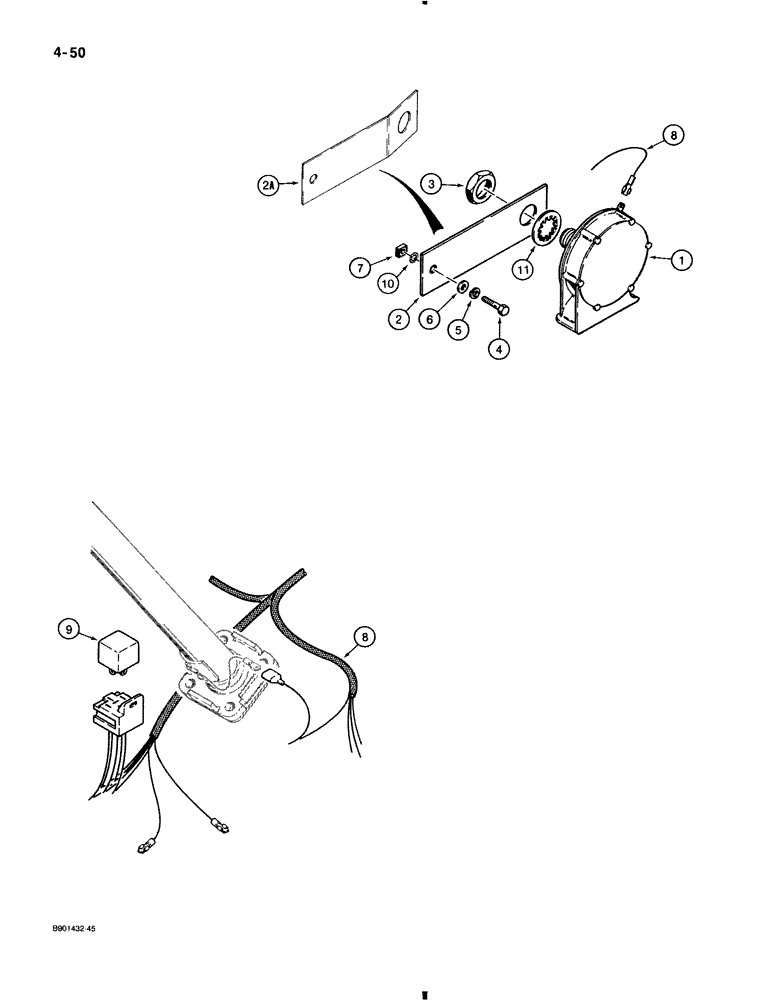

Запчасти Case 580K (4-050) - HORN, MODELS WITH OR WITHOUT TILT/TELESCOPING STEERING COLUMN (04) - ELECTRICAL SYSTEMS

1

D123205

HORN

12 volt

1шт.

2

D137007

BRACKET

horn mounting, if used

1шт.

2a

D147455

BRACKET

horn mounting, if used

1шт.

3

L30866

LOCK NUT

special, horn mounting

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex head, plated, 5/16" - 18 NC x 3/4"

1шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

7

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

square, 5/16" - 18 NC

1шт.

8

REF

INSTRUCTION

HARNESS instrument, front console, see Figure 4-026 for front console instrument harness options

1шт.

9

D128310

RELAY

horn, attaches to front console instrument harness

1шт.

The D128310 relay is marked 40 amp on the relay. This is the resistance rating. The inductive rating is 30 amps. We use this inductive rating in our literature.

1шт.

10

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

11

493-21091

LOCK WASHER,Int Tooth, 7/8"

WASHER internal tooth lock, 7/8"

1шт.
