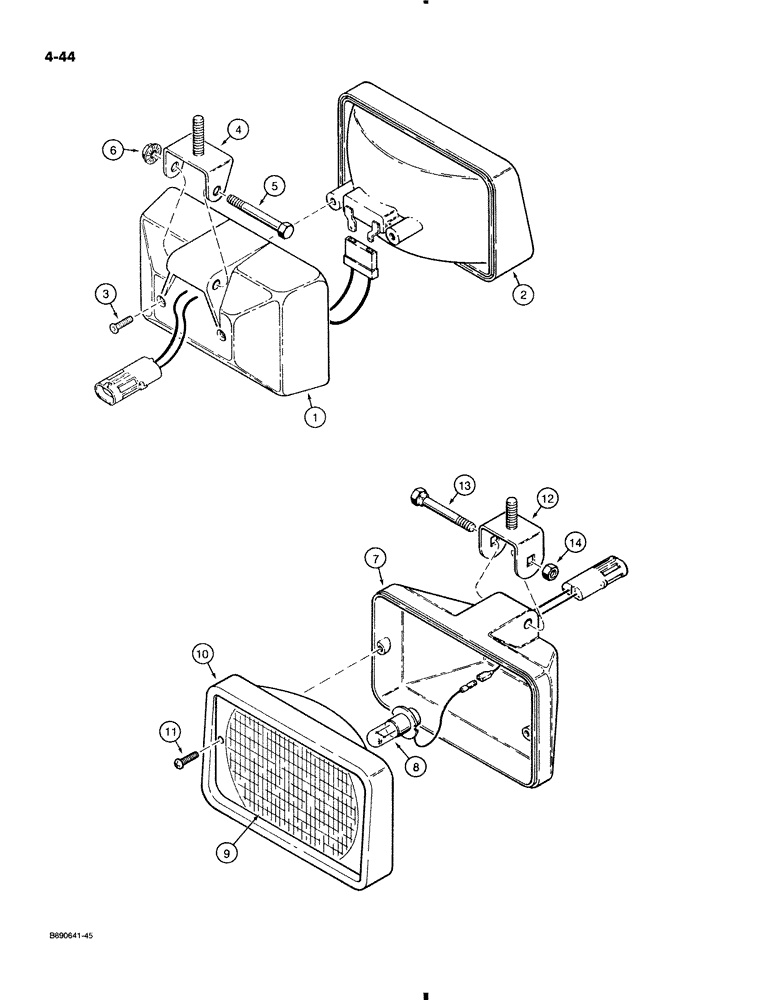

Запчасти Case 580K (4-044) - CAB TRACTOR LAMPS, FRONT DRIVING, REAR FLOOD AND OPTIONAL FRONT AND REAR WORK LAMPS (04) - ELECTRICAL SYSTEMS

R54411

LAMP

ASSEMBLY, front driving, may receive either Hobbs or ABL complete lamp assembly, see below for service, Includes: A187666 and 92264C1 lamp assembly

2шт.

A187666

LIGHT ASSY.

LAMP ASSEMBLY, Hobbs, with glare guard, with 3/8" mounting stud, order R54411, Includes: Ref. 1 - 6, front driving lamp assembly

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING lamp, front driving lamp assembly

1шт.

2

A187912

LAMP,12V, 50W

sealed beam, Hobbs lamp, designated on lens as SW, front driving lamp assembly

1шт.

3

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW flat, self-tapping, No. 8 x 1/2", front driving lamp assembly

2шт.

4

A187914

BRACKET

mounting, lamp, front driving lamp assembly

1шт.

5

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5, Housing to bracket, front driving lamp assembly

1шт.

6

131-934

NUT,Flg, USR, 1/4"-20

hex, serrated flange, self-locking, 1/4" NC, front driving lamp assembly

1шт.

92264C1

LAMP

ASSEMBLY, ABL, without glare guard, with 10 mm mounting stud, Includes: Ref. 7 - 14, front driving lamp assembly

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING lamp, front driving lamp assembly

1шт.

8

1312210C1

BULB

lamp, front driving lamp assembly

1шт.

9

1983290C1

LENS

lamp, front driving lamp assembly

1шт.

10

1964806C1

BEZEL

RETAINER lens, front driving lamp assembly

1шт.

11

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW pan, self-tapping, No. 8 - 16 x 3/4", front driving lamp assembly

2шт.

12

A187915

BRACKET

mounting, lamp, front driving lamp assembly

1шт.

13

931418R1

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

shoulder, hex, 8 mm x 45 mm, housing to bracket, front driving lamp assembly

1шт.

14

30382R1

NUT,M8 x 1.25, Cl 10

NUT hex, self-locking, 8 mm, class 10.9, Front driving lamp assembly

1шт.

R54412

LAMP, WORK

LAMP ASSEMBLY, rear flood and optional front and rear work lamps, may receive either Hobbs or ABL complete lamp assembly, see below for service, Includes: A187665 and 92263C1 lamp assembly

2-6шт.

A187665

LIGHT ASSY.

LAMP ASSEMBLY, Hobbs, with glare guard, with 3/8" mounting stud, order R54412, Includes: Ref. 1 - 6, rear flood lamp assembly and optional front and rear work lamps

2-6шт.

1

NSS

NOT SOLD SEPARAT

HOUSING lamp, rear flood lamp assembly and optional front and rear work lamps

1шт.

2

A187911

LAMP

sealed beam, Hobbs lamp, designated on lens as SW, rear flood lamp assembly and optional front and rear work lamps

1шт.

3

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW flat, self-tapping, No. 8 x 1/2", rear flood lamp assembly and optional front and rear work lamps

2шт.

4

A187914

BRACKET

mounting, lamp, rear flood lamp assembly and optional front and rear work lamps

1шт.

5

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5, Housing to bracket, rear flood lamp assembly and optional front and rear work lamps

1шт.

6

131-934

NUT,Flg, USR, 1/4"-20

hex, serrated flange, self-locking, 1/4" NC, rear flood lamp assembly and optional front and rear work lamps

1шт.

92263C1

LIGHT ASSY.

LAMP ASSEMBLY, ABL, without glare guard, with 10 mm mounting stud, Includes: Ref. 7 - 14, rear flood lamp and optional front and rear work lamps

2-6шт.

7

NSS

NOT SOLD SEPARAT

HOUSING lamp, rear flood lamp assembly and optional front and rear work lamps

1шт.

8

1312210C1

BULB

lamp, rear flood lamp assembly and optional front and rear work lamps

1шт.

9

1964807C1

LAMP BASE

LENS lamp, rear flood lamp assembly and optional front and rear work lamps

1шт.

10

1964806C1

BEZEL

RETAINER lens, rear flood lamp assembly and optional front and rear work lamps

1шт.

11

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW pan, self-tapping, No. 8 - 16 x 3/4", rear flood lamp assembly and optional front and rear work lamps

2шт.

12

A187915

BRACKET

mounting, lamp, rear flood lamp assembly and optional front and rear work lamps

1шт.

13

931418R1

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

shoulder, hex, 8 mm x 45 mm, housing to bracket, rear flood lamp assembly and optional front and rear work lamps

1шт.

14

30382R1

NUT,M8 x 1.25, Cl 10

NUT hex, self-locking, 8 mm, class 10.9, Rear flood assembly and optional front and rear work lamps

1шт.
