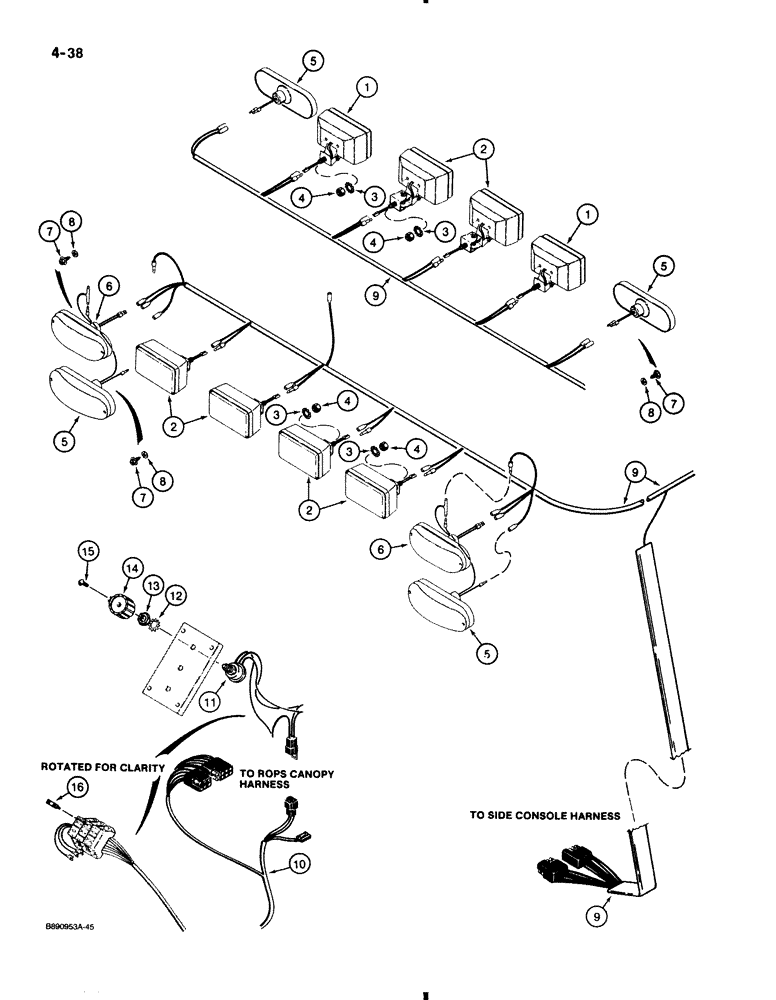

Запчасти Case 580K (4-038) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CANOPY (04) - ELECTRICAL SYSTEMS

1

D132681

LAMP,Halogen, 12V, 50W, Clear

ASSEMBLY, front driving, outer, see Figure 4-042

2шт.

D132681 lamp assembly is available in the depots as D132681.

1шт.

2

D132682

HEADLIGHT,Halogen, 12V, 50W, Clear

LAMP ASSEMBLY, rear flood, outer, and optional front and rear work lamps, center, see Figure 4-042

2-6шт.

D132682 lamp assembly is available in the depots as D132682.

1шт.

3

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER internal, external tooth lock, plated, 1/2"

4-8шт.

4

129-145

JAM NUT,Jam, 1/2"-13, G5

4-8шт.

5

D135384

LAMP,12V

ASSEMBLY, turn signal and flasher, front and rear, amber, see Figure 4-046

4шт.

6

D121152

LAMP,12V

ASSEMBLY, stop and tail, rear, red, see Figure 4-046

2шт.

7

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW hex washer head, slotted, self tapping, lamp, No. 10 - 24 x 3/8", base to ROPS canopy frame

12шт.

8

495-31022

WASHER,#10

12шт.

9

D146580

HARNESS

ROPS canopy, lamps, attaches to side console instrument harness, see Figure 9-176 for harness cover that mounts to the ROPS canopy

1шт.

10

REF

INSTRUCTION

HARNESS instrument, side console, see Figure 4-028 for harness options

1шт.

D141394

SWITCH

ASSEMBLY, four position, separate switching of optional front and rear work lamps, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

SWITCH optional front and rear work lamps

1шт.

12

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER external tooth lock, plated, 1/2"

1шт.

13

129-125

NUT,1/2"-20, G5

1шт.

14

A141735

KNOB

optional work lamp switch, see Figure 9-188 for work lamp symbol decal

1шт.

15

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

machine, pan head slotted, plated, No. 8 - 32 NC x 1/2"

1шт.

16

A149802

FUSE

20 amperes, mounts in fuse holder in side console harness

1шт.
