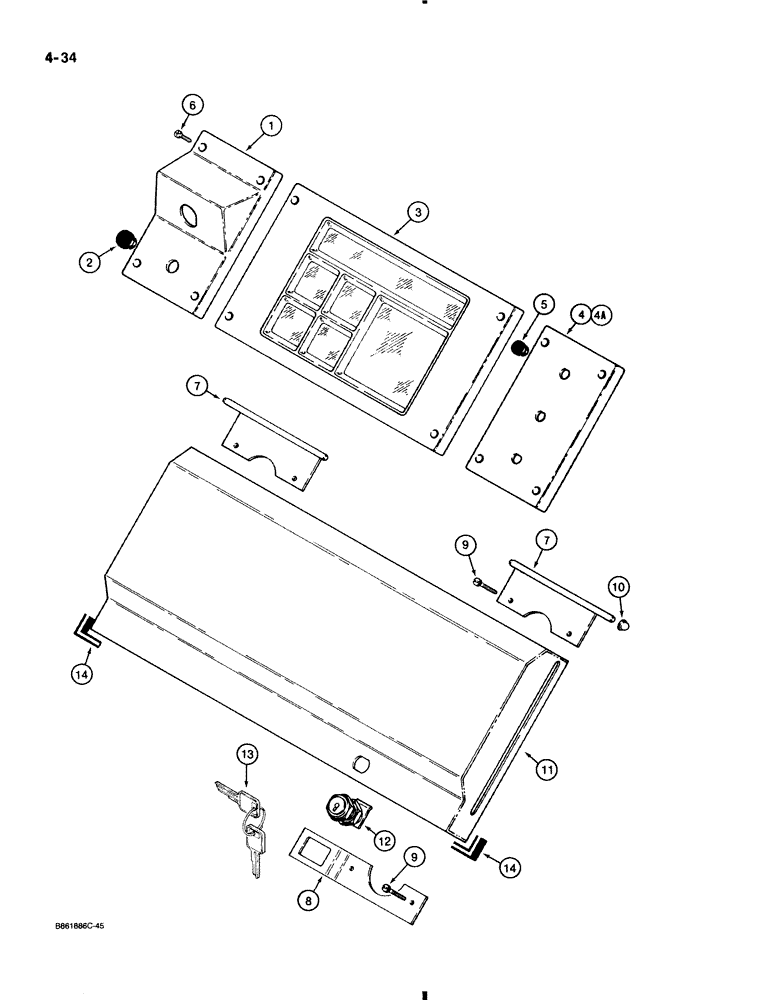

Запчасти Case 580K (4-034) - SIDE INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS

1

D135675

PLATE

front, key switch

1шт.

2

353-406

PLUG,Dome, .625" hole, Nylon

nylon, 5/8", not required on models with cold start

1шт.

3

REF

INSTRUCTION

INSTRUMENT CLUSTER ASSEMBLY, see Figure 4-036

1шт.

See Figure 4-030 for electronic instrument control center.

1шт.

4

D141501

LARGE PLATE

PLATE rear, accessory switches, see Figure 9-188 for decals

1шт.

5

353-404

PLUG,Dome, .500" hole, Nylon

If used Dome, .500" hole, Nylon

3шт.

6

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips, slotted, No. 10 NC x 1/2"

6-12шт.

7

D136695

BRACKET

upper, front and rear switch plates, anti-vandalism, if used

2шт.

8

D136692

BRACKET

lower, front switch plate, anti-vandalism, if used

1шт.

9

182-597

SCREW,Cross Pan Hd, #10-24 x 7/8"

machine, pan head slotted, black, No. 10 - 24 NC x 7/8"

6шт.

10

131-868

PUSH-ON NUT,5/16", Sq, Push-on

push on type with cap, 5/16"

2шт.

11

D136696

COVER

side instrument panel, anti-vandalism, if used

1шт.

D136696 replaced by (1) D149553 cover, (1) D93733 padlock and (8) 140-117 screws.

1шт.

12

D136738

LOCK

ASSEMBLY, Includes two keys, anti-vandalism cover, if used, Includes: Ref. 13

1шт.

Per print, D136738 lock assembly does not include keys.

1шт.

13

N14440

KEY

cover lock

2шт.

14

D55218

SEAL, GLASS,76mm L

TRIM edge, 3" long, cut into two 1-1/2" strips

1шт.
