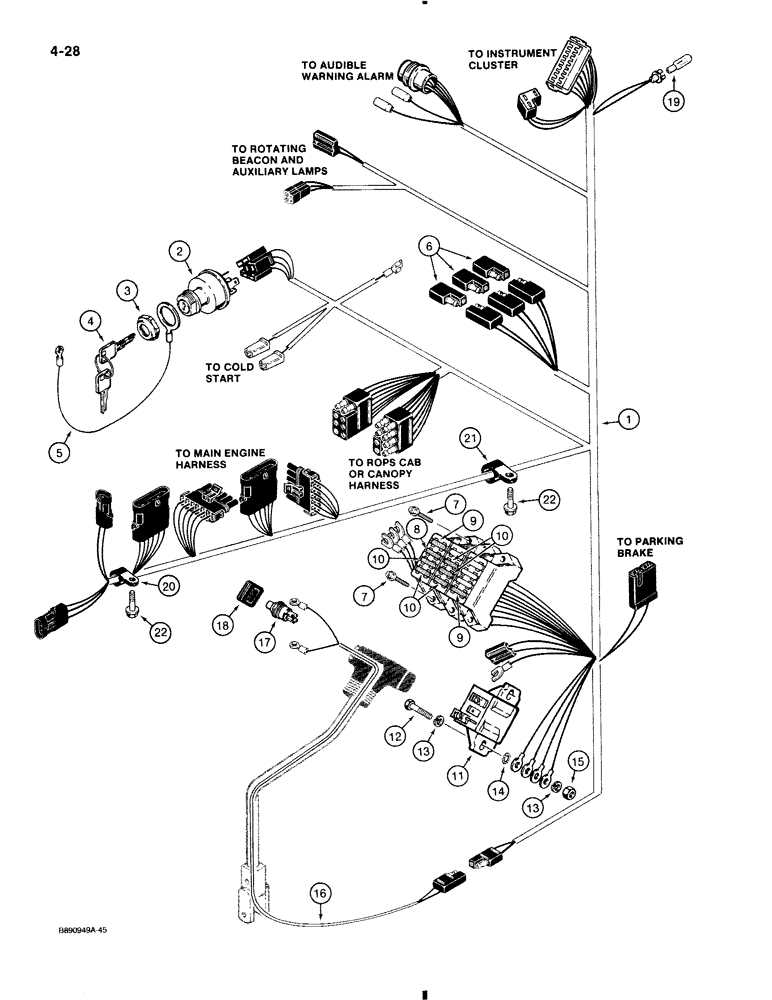

Запчасти Case 580K (4-028) - SIDE CONSOLE WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

D143731

HARNESS

side console, used on models without electronic instrument control center, Serial Range: -JJG0020000

1шт.

1

CASD147433

HARNESS

side console, used on models without electronic instrument control center, Start Serial: JJG0020000

1шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY, key, Includes keys, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

SWITCH key, without keys

1шт.

Connects to P/N L79667 Packard connector, which is shown as being part of the harness that goes to the key switch.

1шт.

3

A77314

NUT

key switch mounting

1шт.

4

A77313

SET OF 2 KEYS

Metal Without Padding

1шт.

5

D144977

ELECTRICAL WIRE

WIRE ground, key switch, uses existing hardware

1шт.

6

L71879

DIODE ELEMENT,400V, 3A

DIODE harness

3шт.

7

187-580

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW hex slotted washer head, self tapping, No. 10 - 32 x 3/4"

6шт.

245435C1

FUSE HOLDER

Fuse Block

3шт.

8

A149803

FUSE,25 Amp

25 amperes

1шт.

Fuse block in illustration is 245435C1. Order three pieces.

1шт.

9

A149800

FUSE,10 Amp

10 amperes

2шт.

Fuse block in illustration is 245435C1. Order three pieces.

1шт.

10

A149801

FUSE,Lt Blue, 15 Amp

15 amperes

5шт.

Fuse block in illustration is 245435C1. Order three pieces.

1шт.

11

D144471

RELAY

power

1шт.

12

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , 2 of the 3 washers are at the lower mounting hole 1/4"

3шт.

14

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER internal, external tooth lock, plated, lower mounting hole only, 1/4"

1шт.

15

193-1006

NUT,Keps, w/LW, 1/4"-20

ASSEMBLY, plated, Includes washer, 1/4" - 20 NC

2шт.

16

D140063

HARNESS

transaxle shift lever switch to side console harness

1шт.

17

D141486

SWITCH

clutch cutout, transaxle shift lever handle

1шт.

18

D140149

PROTECTOR

COVER switch

1шт.

This square boot was used on some 580K's. The clutch cutout switch uses a round boot, D138252, same as used on the loader lift handle.

1шт.

19

D71346

TAIL LAMP,12V

BULB warning, transmission filter, No. 168

1шт.

20

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.

21

D40471

CLAMP

P-type

1шт.

22

D141589

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

BOLT hex washer, self locking, retains side console harness clamps to underside of chassis, 5/16 NC x 3/4"

2шт.
