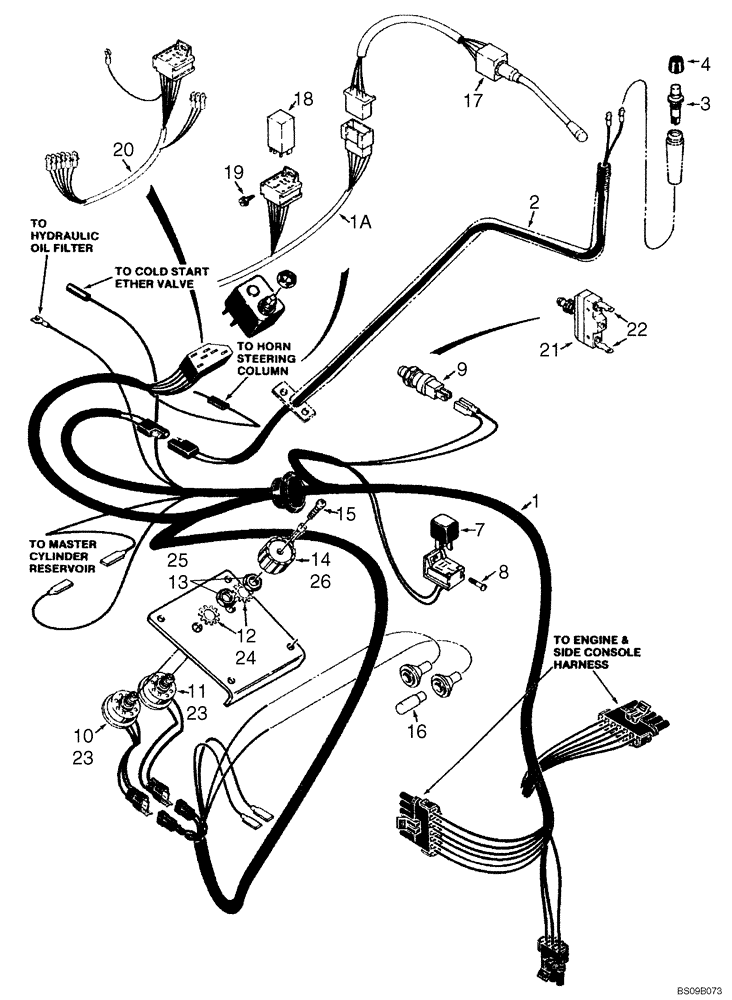

Запчасти Case 580K (4-026) - FRONT CONSOLE WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

D143730

HARNESS

front console, Serial Range: -JJG0020000

1шт.

1

D147434

HARNESS

front console, used on models with horn button on steering wheel, Start Serial: JJG0020000

1шт.

When D147434 subs to D150198 harness, connection to flasher switch may not fit. If not, order one each D147166 flasher, D147686 mounting plate, E46938 switch, E47509 cover plate and two each 614-4012 screw and 892-11004 lock washer.

1шт.

1a

D148604

HARNESS

front console, used on models with horn on turn signal

1шт.

2

D140063

HARNESS

loader control lever, to fast cycle switch

1шт.

3

D141486

SWITCH

fast cycle, loader control lever

1шт.

4

D138252

BOOT

COVER switch

1шт.

5

A77184

SWITCH

turn signal, used on models with horn button on steering wheel, if used

1шт.

See additional information on this turn signal flasher switch in service bulletin NLB SB 022 91 of 11 Nov 91.

1шт.

6

D91352

JAM NUT

hex, special, 3/4" - 20 national extra fine, if used

1шт.

7

D128310

RELAY

30 amperes, used on models with horn

1шт.

The D128310 relay is marked 40 amp on the relay. This is the resistance rating. The inductive rating is 30 amps. We use this inductive rating in our literature.

1шт.

8

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW hex washer head, slotted, self tapping, harness, relay socket mounting, No. 10 - 24 x 3/8"

1шт.

9

D128886

SWITCH

brake lamps, Includes nut, no longer available, order D149365 brake switch kit, Ref. 21 and 22

1шт.

10

D138376

SWITCH

ASSEMBLY front driving and rear flood lamps, three position with octagonal shaft, Includes 11 - 13; No Longer Available, For Service Order 133820A1 Switch and D149932 Knob

1шт.

D138377

SWITCH

ASSEMBLY flasher lamps, two position with octagonal shaft, Includes: Ref. 11 - 13; No longer available, order 133818A1 switchand D149932 knob

1шт.

11

NSS

NOT SOLD SEPARAT

SWITCH D138376 or D138377 switch

1шт.

12

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER external tooth lock, plated, 1/2", D138376 or D138377 switch

1шт.

13

129-125

NUT,1/2"-20, G5

D138376 or D138377 switch 1/2"-20, G5

1шт.

14

A141735

KNOB

- D138376 work lamp and D138377 flasher switches with octagonal shaft, see Figure 9-188 for lamp and flasher symbol decals

2шт.

15

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

machine, pan head slotted, No. 8 - 32 NC x 1/2"

2шт.

16

D71346

TAIL LAMP,12V

BULB warning, indicator lamp, No. 168

2шт.

17

E46938

FLASHER SWITCH

LEVER switch, turn signal and horn, if used

1шт.

18

D147166

FLASHER UNIT

SWITCH flasher, used on models with horn on turn signal, if used

1шт.

19

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW hex washer, slotted, self tapping, No. 10 - 24 x 3/8", mounts flasher socket to plate on Figure 5-002

1шт.

20

D148487

HARNESS

WIRE jumper, flasher and turn signal, used with D147434 harness, Ref. 1, to adapt harness for use with Ref. 17 horn and turn signal switch lever, if used

1шт.

REFERENCE

SPARE PART

brake switch, Includes instructions, Includes: Ref. 21 and 22

1шт.

21

D148108

SWITCH

brake lamp

1шт.

22

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL Male

2шт.

133820A1

SWITCH

ASSEMBLY, front driving and rear flood lamps, three position with square shaft, includes Ref. 23 - 25, Replaces D138376 Switch

1шт.

133818A1

SWITCH

ASSEMBLY, flasher lamps, two position with square shaft, includes Ref 23 - 25, Replaces D138377 Switch

1шт.

23

NSS

NOT SOLD SEPARAT

SWITCH, 133820A1 or 133818A1 switch

1шт.

24

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch

1шт.

25

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

26

D149932

KNOB

KNOB - 133820A1 and 133818A1 switch with square shaft

2шт.
