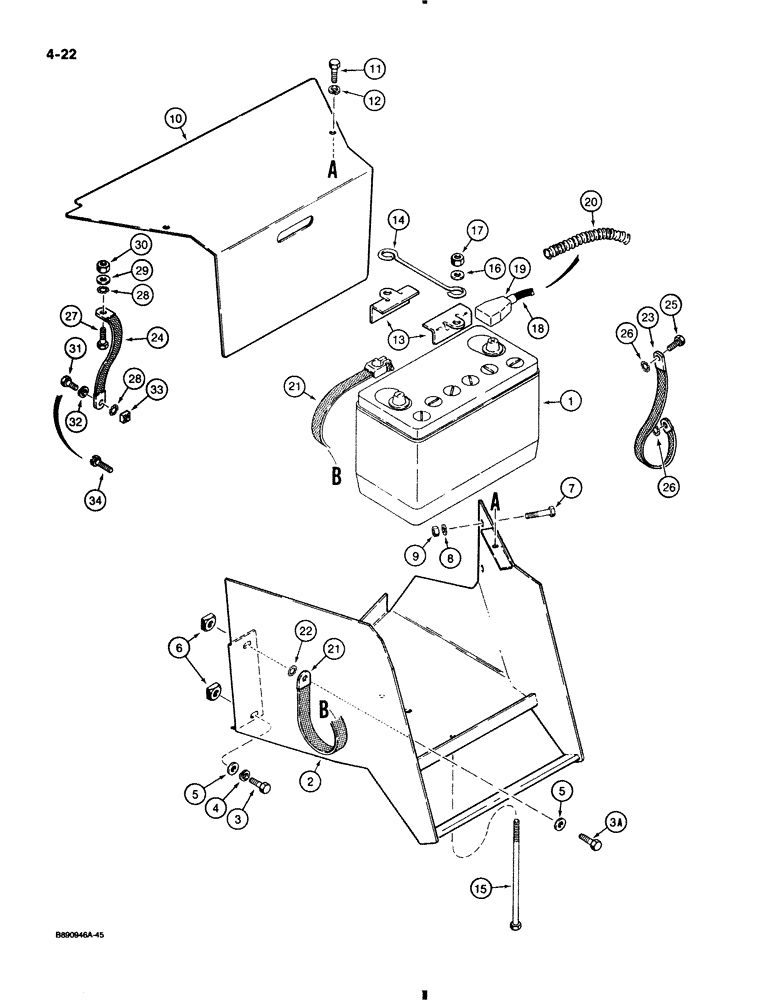

Запчасти Case 580K (4-022) - BATTERY, BOX AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

A180406

BATTERY

dry, 12 volt, service replacement, order BMF31E

1шт.

For use on models without a dual battery cold start system. For models with a dual battery cold start system, see Figure 4-024.

1шт.

2

D131882

TRANSFER BOX

BOX battery

1шт.

Battery box is used as step for right-hand side. Cover is P/N D131887.

1шт.

3

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

3a

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

For use on models without a dual battery cold start system. For models with a dual battery cold start system, see Figure 4-024.

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

2шт.

6

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, plated, 3/8" - 16 NC

2шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

D131887

COVER

battery box

1шт.

11

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

D125079

BRACKET

battery hold down

2шт.

For use on models without a dual battery cold start system. For models with a dual battery cold start system, see Figure 4-024.

1шт.

14

D55561

RETAINER

battery, hold down

1шт.

For use on models without a dual battery cold start system. For models with a dual battery cold start system, see Figure 4-024.

1шт.

15

115-218

BOLT,Hex, 3/8" - 16 x 10", Gr 2

2шт.

For use on models without a dual battery cold start system. For models with a dual battery cold start system, see Figure 4-024.

1шт.

16

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

2шт.

17

131-217

LOCK NUT

NUT hex, self locking, 3/8" NC, grade 8

2шт.

18

D139095

CABLE

positive, battery, Includes: Ref. 19

1шт.

For use on models without a dual battery cold start system. For models with a dual battery cold start system, see Figure 4-024.

1шт.

19

A27072

COVER

cable, battery end

1шт.

20

D139094

SLEEVE

positive cable, guard, 37-13/32", 950 mm long, cut from D99461 bulk sleeve, see below

1шт.

21

D83485

CABLE,300mm L

STRAP negative, at battery

1шт.

For use on models without a dual battery cold start system. For models with a dual battery cold start system, see Figure 4-024.

1шт.

22

193-72

LOCK WASHER

internal, external tooth lock, plated, 3/8"

1шт.

23

D127018

STRAP

ground

1шт.

24

D140369

GROUND STRAP,260mm L

STRAP ground, pod and chassis

1шт.

25

187-573

SELF-TAP SCREW,Hex Hd, 3/8" x 1"

SCREW hex head, self tapping, 3/8" - 16 NC x 1"

1шт.

26

193-72

LOCK WASHER

internal, external tooth lock, plated, 3/8"

2шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

28

193-72

LOCK WASHER

internal, external tooth lock, plated, 3/8"

2шт.

29

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

1шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

31

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

If used Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

1шт.

33

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC, if used

1шт.

34

187-573

SELF-TAP SCREW,Hex Hd, 3/8" x 1"

SCREW hex, self tapping, 3/8 NC x 1", if used

1шт.

D99461

LOOM

SLEEVE bulk, 80", 2032 mm long

1шт.
