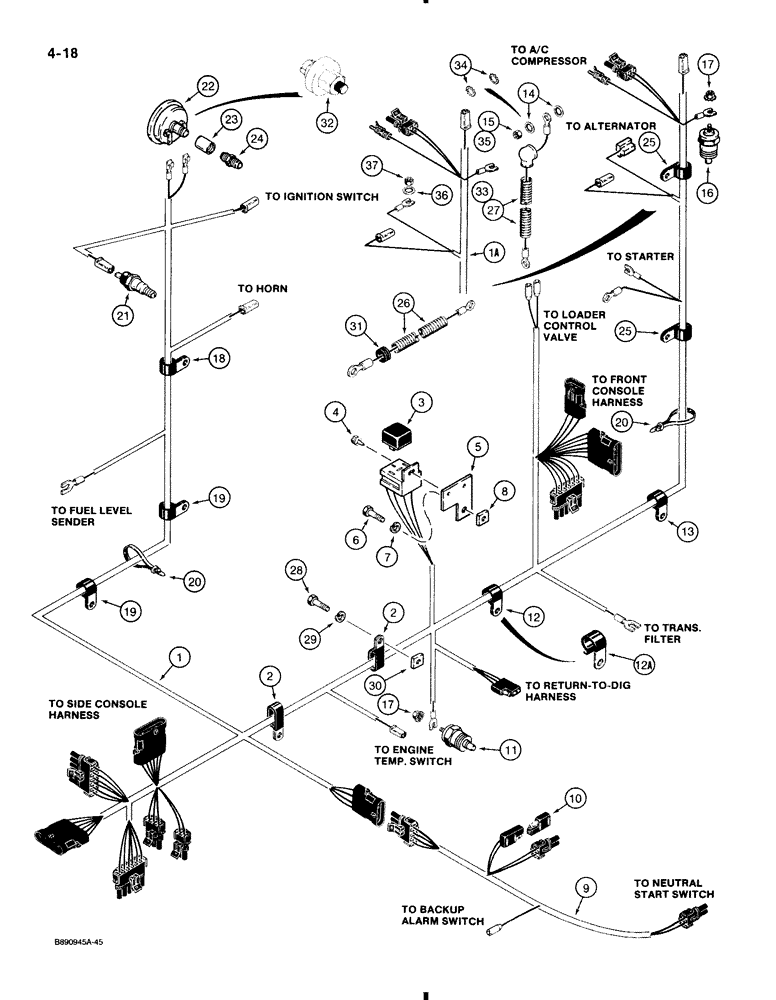

Запчасти Case 580K (4-018) - ENGINE ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

D143732

HARNESS

engine, main, used on models without electronic instrument control center, used on models prior to tractor P.I.N. JJG0020000 on models with A186125 alternator or 95 amp alternator

1шт.

See Figure 4-030 for special parts used on models with electronic instrument control center.

1шт.

1

D146031

HARNESS

engine, main, used on models without electronic instrument control center, used on models with tractor P.I.N. JJG0020000 and after on models with A186125 alternator or 95 amp alternator, Replaces: 147432

1шт.

See Figure 4-030 for special parts used on models with electronic instrument control center.

1шт.

1a

D149272

HARNESS

engine, main, used on models without electronic instrument control center, used on models with A187873 alternator or 95 amp alternator

1шт.

See Figure 4-030 for special parts used on models with electronic instrument control center.

1шт.

2

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

double, harness, uses existing hardware

2шт.

3

D128310

RELAY

starter, 30 amperes

1шт.

The D128310 relay is marked 40 amp on the relay. This is the resistance rating. The inductive rating is 30 amps. We use this inductive rating in our literature.

1шт.

4

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW self tapping, No. 10 - 24 x 3/8"

1шт.

5

D140282

SUPPORT

PLATE relay mounting

1шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC

1шт.

9

D144986

HARNESS

transaxle

1шт.

10

L71879

DIODE ELEMENT,400V, 3A

DIODE harness, at power shuttle

1шт.

11

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER transaxle temperature

1шт.

12

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, harness, uses existing steering hydraulic tube hardware, if used

1шт.

12a

D147383

CLIP,5/8" J

CLAMP J-type, harness, Replaces: P-type clamp, Ref. 12, used on some models

1шт.

13

49838

CLAMP

P-type, harness, uses existing hardware

1шт.

14

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER internal tooth lock, 1/4", used with A186125 alternator

2шт.

Not used on models with 95 amp alternator or A187873 65 amp alternator. See Figure 4-014 for special parts used on models with 95 amp alternator and A187873 65 amp alternator.

1шт.

15

825-1106

NUT,Hex, M6, Cl 8

hex, 6 mm - 1, used with A186125 alternator

1шт.

Not used on models with 95 amp alternator or A187873 65 amp alternator. See Figure 4-014 for special parts used on models with 95 amp alternator and A187873 65 amp alternator.

1шт.

16

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER engine water coolant temperature

1шт.

17

193-1000

NUT,Keps, w/LW,#10-32

ASSEMBLY, plated, with lockwasher, No. 10 - 32 NF

2шт.

18

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, harness, left hand side of engine, uses existing engine hardware

1шт.

19

49838

CLAMP

P-type, harness, left hand side of engine, uses existing pump outlet hydraulic line hardware

2шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15"

1шт.

21

A162297

SWITCH

SENDER oil pressure, used on models without electronic instrument control center

1шт.

See Figure 4-030 for special parts used on models with electronic instrument control center.

1шт.

22

L103131

INDICATOR

SENDER air filter restriction indicator, if used

1шт.

23

221-1335

COUPLING,Pipe, 1/8" NPT

if used Pipe, 1/8" NPT

1шт.

24

D36264

FITTING

ADAPTER special, Includes safety filter, if used

1шт.

25

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, harness, uses existing engine hardware

2шт.

26

D147514

HARNESS

WIRE power, battery terminal on starter to cab relay

1шт.

27

D143792

HARNESS

WIRE alternator to starter, 980 mm long, used with A186125 and D146895 plug and D148684 spring on Figure 6-032, Ref. 18A and 20

1шт.

Not used on models with 95 amp alternator or A187873 65 amp alternator. See Figure 4-014 for special parts used on models with 95 amp alternator and A187873 65 amp alternator.

1шт.

28

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

30

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" NC

1шт.

31

D141118

GROMMET

power wire

1шт.

32

1983233C1

RESTRICTION SWITCH

SENDER air filter restriction indicator, Replaces: Ref. 22 - 24 on some models, if used

1шт.

33

D143830

CABLE

WIRE alternator to starter, 675 mm long, used with A187873 65 amp alternator or 95 amp alternator

1шт.

34

493-21033

LOCK WASHER,Int Tooth, 5/16"

WASHER external tooth lock, 5/16", used with Ref. 33

2шт.

35

825-1108

NUT,Hex, M8, Cl 8

hex, 8 mm - 1.25, Used with Ref 33

1шт.

36

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16"), Used with Ref. 1A Int Tooth, #10

1шт.

37

825-1105

NUT,M5, Cl 8

hex, 5 mm - 0.8, used with Ref. 1A

1шт.
