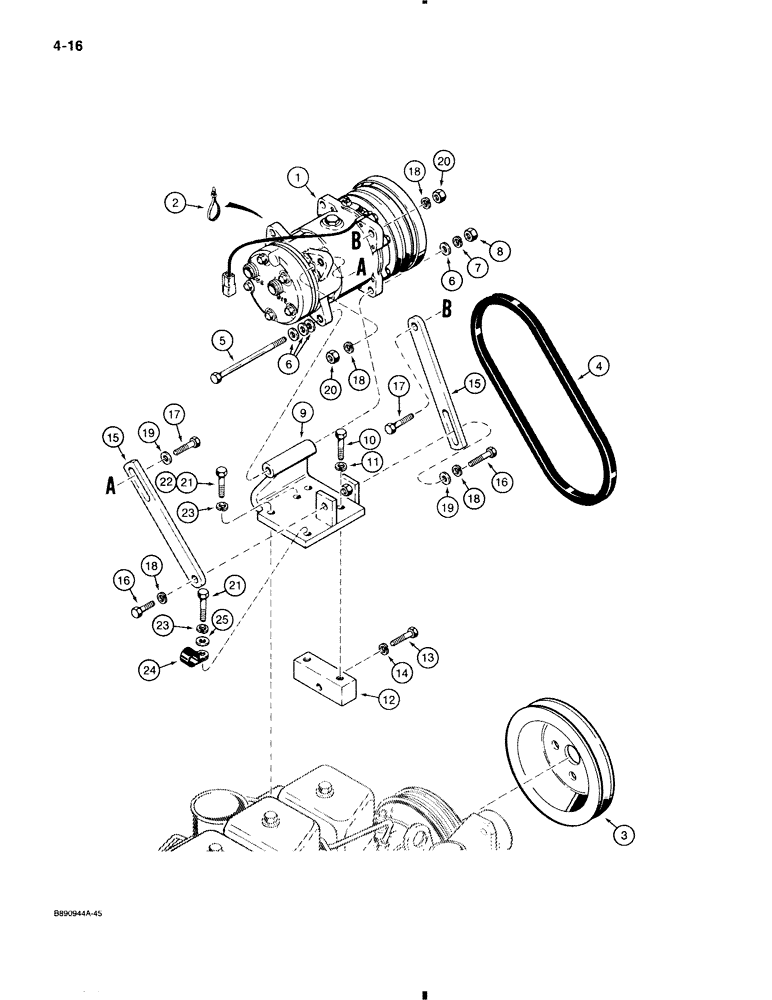

Запчасти Case 580K (4-016) - AIR CONDITIONING COMPRESSOR MOUNTING (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
97204C1
COMPRESSOR
ASSEMBLY, air conditioning, see Figure 4-012
1шт.
97204C1R
COMPRESSOR
Reman compressor
1шт.
97204C1C
COMPRESSOR
Return Number
1шт.
1
1977959C1R
REMAN-A/C COMPRESSOR
Reman For New PN 97204C1
1шт.
1
1977959C1C
CORE-A/C COMPRESSOR
Return Number
1шт.
2
L18337
CABLE TIE,9.95"-12.1" lg
STRAP tie, nylon, 15"
2шт.
3
A189284
PULLEY,151mm OD
air conditioner compressor drive
1шт.
4
A189285
V-BELT,12.70 mm W x 1060.00 mm L
Drive, Compressor 12.70 mm W x 1060.00 mm L
1шт.
5
827-10130
BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9
- hex, 10 - 1.5 x 130 mm, class 10.9
1шт.
6
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
4шт.
7
892-1110
LOCK WASHER,M10
WASHER lock, 10 mm
1шт.
8
825-1410
NUT,M10, Cl 8
1шт.
9
A189274
SUPPORT
BRACKET compressor mounting
1шт.
10
614-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
2шт.
11
892-1110
LOCK WASHER,M10
WASHER lock, 10 mm
2шт.
12
A184614
SUPPORT
BLOCK bracket support
1шт.
13
814-10040
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8
hex, 10 mm - 1.5 x 40 mm
1шт.
14
892-1110
LOCK WASHER,M10
WASHER lock, 10 mm
1шт.
15
A184932
TENSIONER
STRAP compressor adjusting
2шт.
16
614-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
2шт.
17
614-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
hex, 10 mm - 1.5 x 35 mm
2шт.
18
892-1110
LOCK WASHER,M10
WASHER lock, 10 mm
4шт.
19
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
2шт.
20
825-1110
NUT,M10, Cl 8
hex M10, Cl 8
2шт.
21
614-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
3 used on naturally aspirated engines and 1 used on turbocharged engines Hex, M10 x 30, 8.8
1-3шт.
22
614-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
hex, 10 mm - 1.5 x 35 mm, turbocharged engines
2шт.
23
892-1110
LOCK WASHER,M10
WASHER lock, 10 mm
3шт.
24
515-2363
CLAMP,M6.3, Insul, 3/8" Bolt
main engine harness to compressor bracket
1шт.
25
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
1шт.
Выбрано товаров: 29
