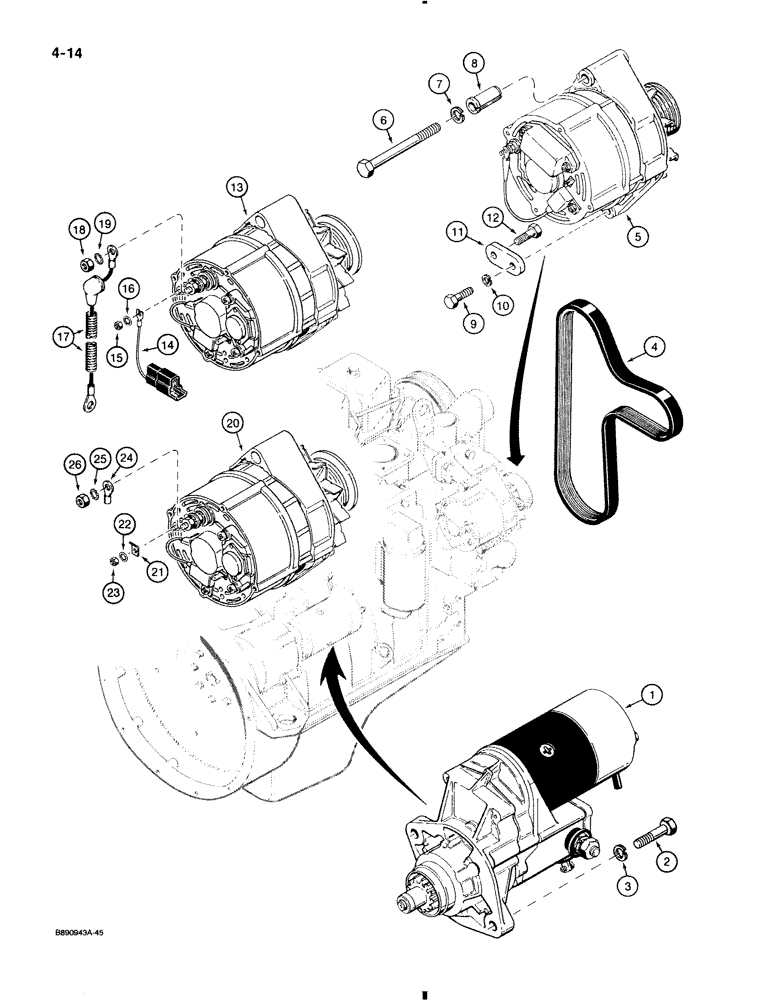

Запчасти Case 580K (4-014) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

A170746

STARTING MOTOR

STARTER ASSEMBLY, engine, see Figures 4-002 and 4-004

1шт.

A170746 is a dry clutch starter. The 580 Super K PTO units require A181056, which is a sealed wet clutch starter.

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, Starter

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

BOLT hex head, plated, 10 mm - 1.5 x 40 mm, 8.8

2шт.

3

892-1110

LOCK WASHER,M10

WASHER lock, plated, 10 mm

2шт.

4

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Fan and Alternator

1шт.

5

REF

INSTRUCTION

ALTERNATOR ASSEMBLY, 65 ampere, for correct assembly and components, see Figures 4-006 or 4-008

1шт.

6

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT - hex head, plated, 10 mm - 1.5 x 100 mm, 8.8

1шт.

7

892-1110

LOCK WASHER,M10

WASHER lock, plated, 10 mm

1шт.

8

J902469

SPACER

SPACER alternator

1шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT, Hex, M8 x 25, 8.8

1шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

J903089

SUPPORT

BRACE alternator mounting

1шт.

12

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

BOLT, Hex, M8 x 20, 8.8

1шт.

13

A187623

ALTERNATOR

ALTERNATOR ASSEMBLY, 95 ampere, see Figure 4-010, optional and related parts

1шт.

13

AR187623

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

13

AC187623

CORE-ALTERNATOR

Return Part Number

1шт.

13

A187623GV

ALTERNATOR

Value, 95 Amp

1шт.

14

D143831

CABLE

WIRE jumper, harness to alternator, used with D143732 or D147432 harness on Figure 4-018, optional 95 amp and related parts

1шт.

15

825-1105

NUT,M5, Cl 8

NUT hex, plated, 5 mm - 0.8, optional 95 amp alternator and related parts

1шт.

16

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16"), Optional 95 amp alternator and related parts Int Tooth, #10

1шт.

17

D143830

CABLE

WIRE, alternator to starter, optional 95 amp and related parts

1шт.

18

825-1108

NUT,Hex, M8, Cl 8

NUT hex, 8 mm - 1.25, plated, Optional 95 amp alternator and related parts

1шт.

19

493-21033

LOCK WASHER,Int Tooth, 5/16"

WASHER external tooth lock, 5/16", optional 95 amp alternator and related parts

1шт.

D149364

KIT

KIT service, to replace A186125 alternator with A187873 alternator, includes instructions, 65 amp replacement kit, Includes: Ref. 20 - 26

1шт.

20

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY, 65 amp, see Figure 4-008, replacement kit

1шт.

20

A187873GV

ALTERNATOR

Value, 65 Amp

1шт.

20

AR186125GV

ALTERNATOR

Value

1шт.

20

AR186125

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

20

AC186125

CORE-ALTERNATOR

Return Part Number

1шт.

21

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL , regulator stud to harness, 65 amp alternator replacement kit Male

1шт.

22

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16"), 65 amp alternator replacement kit Int Tooth, #10

1шт.

23

825-1405

NUT,M5, Cl 8

NUT, , Replaces 825-1105, 65 amp alternator replacement kit M5, Cl 8

1шт.

24

1964722C1

TERMINAL CONNECTOR

TERMINAL eyelet, alternator battery stud, 65 amp replacement kit

1шт.

25

493-21033

LOCK WASHER,Int Tooth, 5/16"

WASHER external tooth lock, 5/16", 65 amp alternator replacement kit

1шт.

26

825-1108

NUT,Hex, M8, Cl 8

NUT hex, 8 mm - 1.25, 65 amp alternator replacement kit

1шт.
