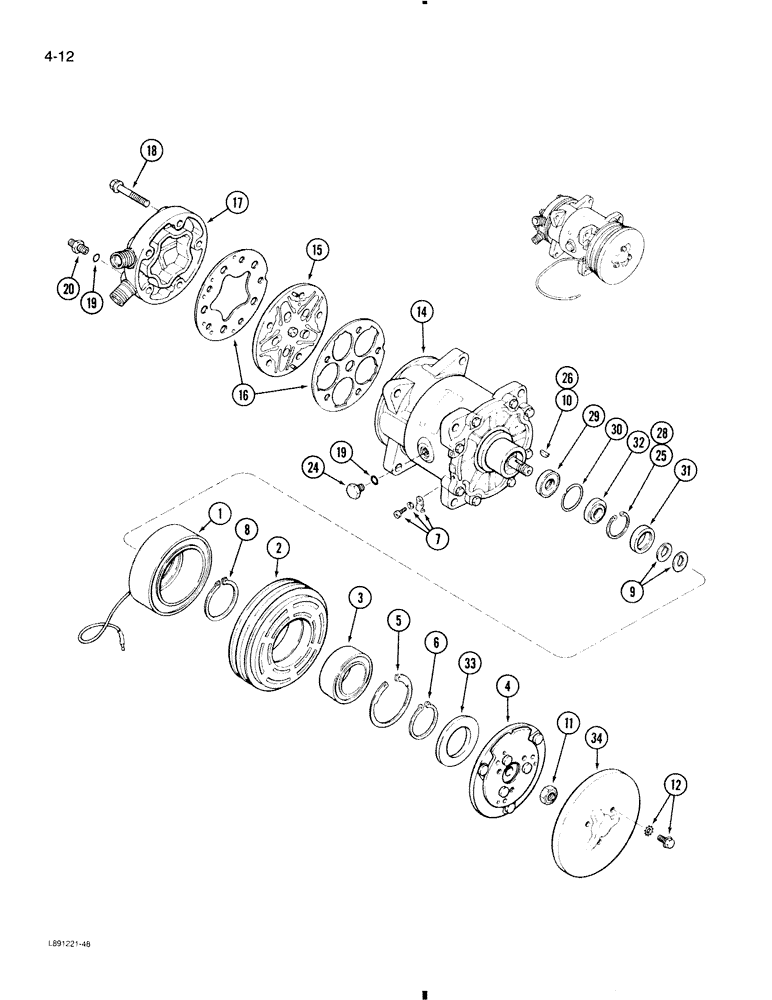

Запчасти Case 580K (4-012) - AIR CONDITIONING, COMPRESSOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

97204C1

COMPRESSOR

ASSEMBLY, air conditioning, complete, Sankyo-Sanden, Includes: clutch assembly below and Ref. 1 - 34

1шт.

97204C1R

COMPRESSOR

Reman compressor

1шт.

97204C1C

COMPRESSOR

Return Number

1шт.

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

83935C1

CLUTCH

ASSEMBLY, compressor, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

COIL ASSEMBLY, field, 12 volt

1шт.

See Figure 4-016 for correct illustration.

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY ASSEMBLY, drive, two-groove, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING pulley

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE front

1шт.

5

NSS

NOT SOLD SEPARAT

RING snap

1шт.

A49673

KIT

accessory, clutch, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

RING snap, pulley

1шт.

7

NSS

NOT SOLD SEPARAT

CLAMP ASSEMBLY, lead wire

1шт.

8

NSS

NOT SOLD SEPARAT

RING snap, clutch

1шт.

9

NSS

NOT SOLD SEPARAT

SHIM clutch

1шт.

10

NSS

NOT SOLD SEPARAT

KEY clutch drive

1шт.

11

NSS

NOT SOLD SEPARAT

NUT retainer

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW retainer

1шт.

14

NSS

NOT SOLD SEPARAT

BLOCK ASSEMBLY, compressor

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY, valve, Includes: Ref. 16 - 32

1шт.

16

A49668

GASKET KIT

KIT gasket, valve plate

1шт.

17

1958959C1

COVER

HEAD cylinder, Includes: Ref. 16

1шт.

18

A49669

SCREW,Cylinder

BOLT hex flanged, head

5шт.

19

A49666

O-RING

rubber

1шт.

20

A49670

PORT

service

1шт.

24

A49667

PLUG

oil filler

1шт.

26

A49671

KEY

shaft, compressor

1шт.

A49665

SEAL KIT

KIT seal, compressor, Includes: Ref. 28 - 31

1шт.

28

A49664

CIRCLIP

RING snap

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING housing

1шт.

31

NSS

NOT SOLD SEPARAT

RING felt

1шт.

32

NSS

NOT SOLD SEPARAT

SEAT seal, shaft

1шт.

33

A49674

BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm

COVER dust, bearing

1шт.

34

1958961C1

COVER

dust, clutch

1шт.

146461C1

RELAY

SWITCH relay, air conditioning clutch, see Figure 9-170, Ref. 21

1шт.
