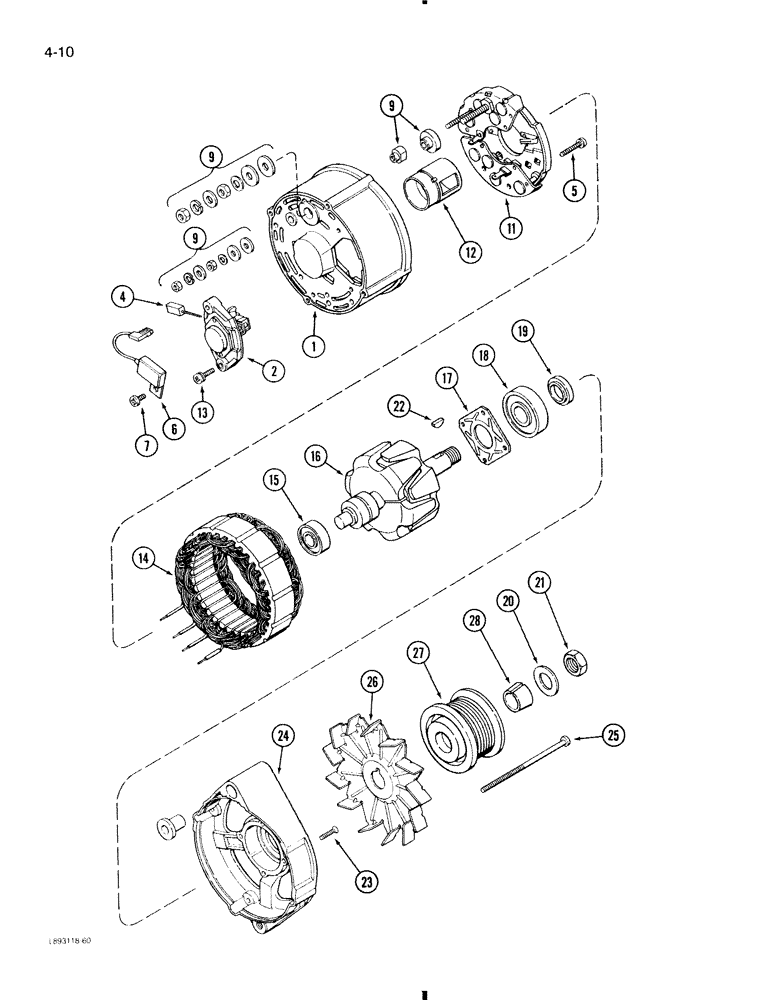

Запчасти Case 580K (4-010) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

A187623

ALTERNATOR

ALTERNATOR ASSEMBLY, engine, 95 ampere, Includes: Ref. 1 - 25

1шт.

AR187623

REMAN-ALTERNATOR

Reman For New P/N A187623

1шт.

AC187623

CORE-ALTERNATOR

Return Part Number

1шт.

A187623GV

ALTERNATOR

Value, 95 Amp

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Part Number\r\n, 12 VOLT, 61 AMP Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New P/N A187623

1шт.

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

A187903

COVER

HOUSING collector ring end

1шт.

2

A187906

VOLTAGE REGULATOR

REGULATOR voltage

1шт.

4

1964968C1

COMMUTATOR BRUSH

BRUSH ASSEMBLY, alternator

1шт.

5

A187898

SCREW

BOLT retaining, with washer

2шт.

6

3079134R1

CAPACITOR

CAPACITOR alternator

1шт.

7

1964969C1

SCREW

SCREW - capacitor retaining

1шт.

9

A187904

MULTIPOLE CONNECTOR

SET hardware, terminal

1шт.

11

A187905

DIODE ELEMENT

BRIDGE rectifier, alternator

1шт.

12

A187899

INNER SHIELD

SHIELD alternator

1шт.

13

A187907

CAPTIVE WASHER SCREW

BOLT retaining, with washer

2шт.

14

A187902

STATOR

STATOR ASSEMBLY, alternator

1шт.

15

A187908

BALL BEARING,12 mm ID x 32 mm OD x 10 mm

BEARING ball, rotor, collector ring end

1шт.

16

A187900

ROTOR

ROTOR ASSEMBLY, alternator

1шт.

17

A187901

FIXING PLATE

PLATE bearing retaining

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING ball, rotor, drive end

1шт.

3078897R1

SET OF PARTS

KIT rotor retaining, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

RING spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER lock, rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT rotor shaft

1шт.

22

NSS

NOT SOLD SEPARAT

KEY pulley retainer

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW bearing retaining plate

1шт.

24

A186182

HOUSING

HOUSING drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT cover retaining

4шт.

26

221425R1

FAN

FAN alternator

1шт.

27

J908560

PULLEY

PULLEY alternator

1шт.

28

J908563

RETAINER

RETAINER alternator pulley

1шт.
