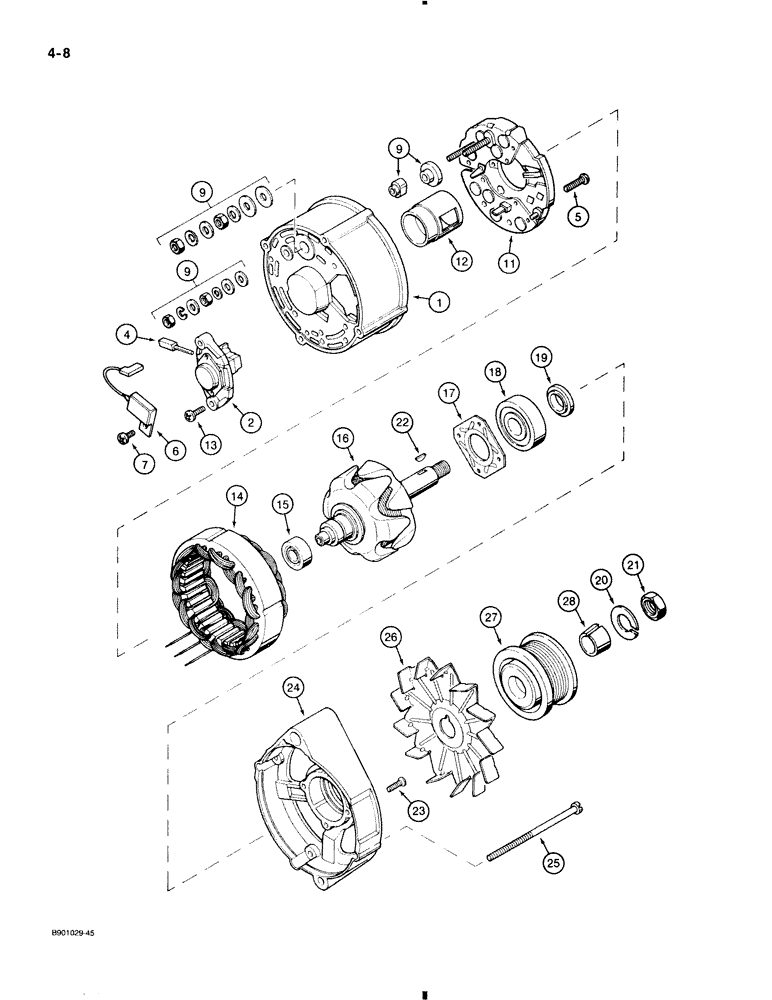

Запчасти Case 580K (4-008) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY, 14 volt, 65 ampere, Bosch No. 0120488205, Includes: Ref. 1 - 25

1шт.

AR187873

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 14 Volt, 65 Amp

1шт.

AR186125

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC186125

CORE-ALTERNATOR

Return Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

87297230

REMAN-ALTERNATOR

Remanufactured Bosch 12v 65a Alternator

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR

1шт.

1

A187903

COVER

HOUSING collector ring end

1шт.

2

A187906

VOLTAGE REGULATOR

REGULATOR voltage

1шт.

4

1964968C1

COMMUTATOR BRUSH

BRUSH ASSEMBLY, alternator

1шт.

5

A187898

SCREW

BOLT rectifier bridge retaining, with washer

2шт.

6

3079134R1

CAPACITOR

CAPACITOR alternator

1шт.

7

1964969C1

SCREW

SCREW - Fillister, capacitor retaining

1шт.

9

A187904

MULTIPOLE CONNECTOR

SET hardware, terminal

1шт.

11

A187917

RECTIFIER

BRIDGE rectifier, alternator

1шт.

12

A187899

INNER SHIELD

SHIELD alternator

1шт.

13

A187907

CAPTIVE WASHER SCREW

BOLT voltage regulator retaining, with washer

2шт.

14

1964966C1

STATOR

STATOR ASSEMBLY alternator

1шт.

15

A187908

BALL BEARING,12 mm ID x 32 mm OD x 10 mm

BEARING ball, rotor, collector ring end

1шт.

16

1964964C1

ROTOR

ROTOR ASSEMBLY, alternator

1шт.

17

A187901

FIXING PLATE

PLATE bearing retaining, drive end cover

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING ball, rotor, drive end

1шт.

3078897R1

SET OF PARTS

KIT retaining, rotor, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

RING spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT rotor shaft

1шт.

22

NSS

NOT SOLD SEPARAT

KEY pulley retainer, not used in A187873 alternator

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW bearing retaining plate

4шт.

24

A186182

HOUSING

COVER drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT cover retaining

4шт.

26

221425R1

FAN

FAN alternator, not included with alternator assembly, order separately

1шт.

27

J908560

PULLEY

PULLEY drive, not included with alternator assembly, order separately

1шт.

28

J908563

RETAINER

RETAINER pulley, not included with alternator assembly, order separately

1шт.
