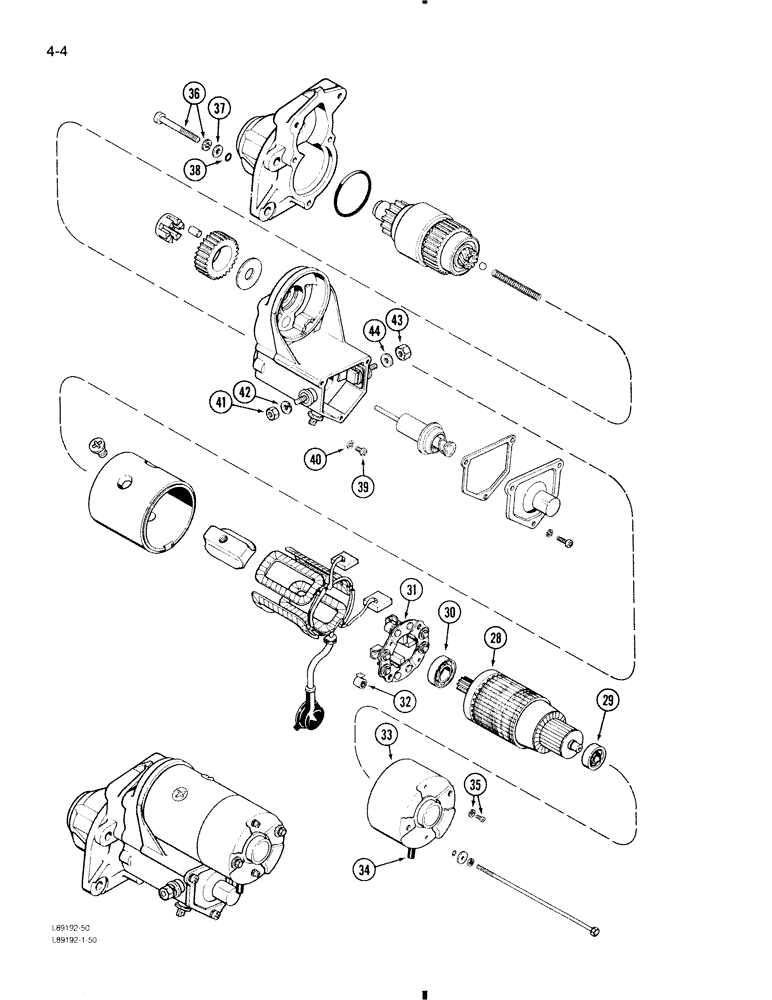

Запчасти Case 580K (4-004) - STARTER (04) - ELECTRICAL SYSTEMS

A170746

STARTING MOTOR

STARTER ASSEMBLY, engine, Includes: Ref. 28 - 44 and P/N 73-48

1шт.

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, STARTER

1шт.

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

28

A47242

ARMATURE

ARMATURE ASSEMBLY, Includes: Ref. 29 and 30

1шт.

29

S85601

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING commutator end

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

BEARING drive end

1шт.

31

A47239

HOLDER

HOLDER ASSEMBLY, brush, Includes two brushes, Includes: Ref. 32

1шт.

32

A47249

SPRING

SPRING brush tension

4шт.

33

A47237

FRAME

FRAME commutator end

1шт.

34

A47238

COVER

COVER end frame

1шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

SCREW ASSEMBLY, brush, Serial Range: holder-cover

2шт.

A47230

BOLT

BOLT ASSEMBLY, commutator end cover to drive end housing, Includes: Ref. 36 - 38

3шт.

36

NSS

NOT SOLD SEPARAT

BOLT with lock washer

1шт.

37

195-516

WASHER,#12

WASHER flat, 1/4" x 9/16" x 1/16"

1шт.

38

A47130

O-RING

O-RING bolt seal

1шт.

39

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

SCREW pan head, No. 8-32 x 3/8"

1шт.

40

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

1шт.

41

87016560

JAM NUT,Jam, 3/8"-16, G5

NUT, , Battery terminal Jam, 3/8"-16, G5

1шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

43

825-1110

NUT,M10, Cl 8

NUT, , Field coil terminal M10, Cl 8

1шт.

44

A10454

WAVE WASHER

WASHER field coil terminal

1шт.

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

SCREW flat head slotted, 1/4" NC x 1/2"

1шт.
