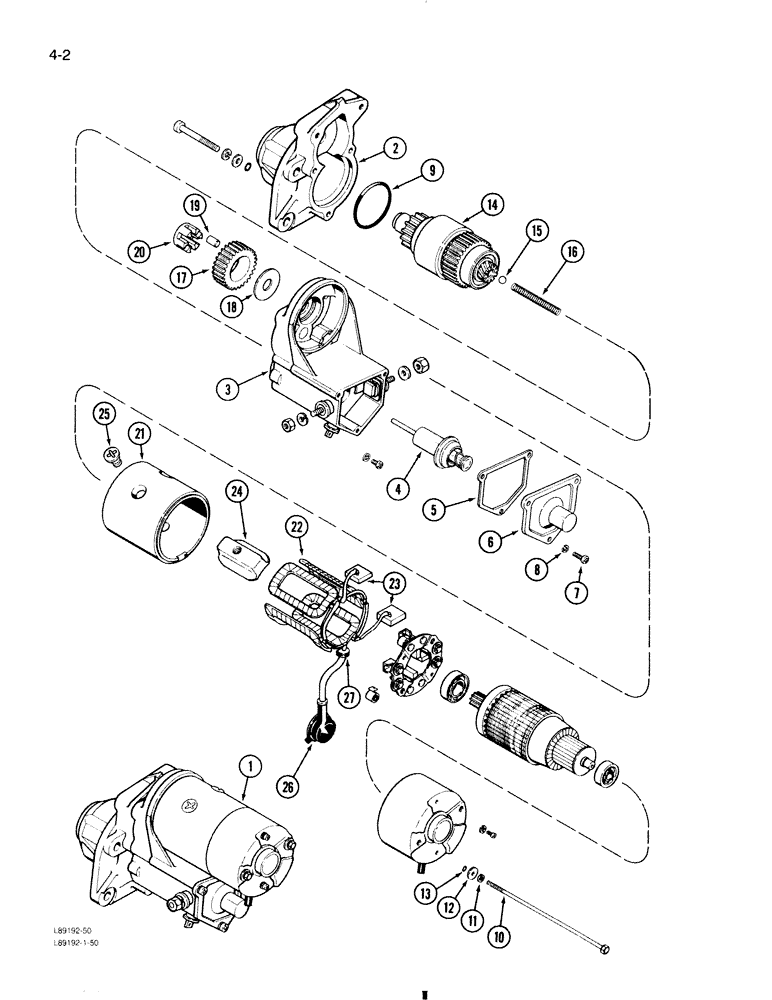

Запчасти Case 580K (4-002) - STARTER (04) - ELECTRICAL SYSTEMS

1

A170746

STARTING MOTOR

STARTER ASSEMBLY, new, Includes: Ref. 2 -27

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New P/N A170746

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

AR170746

STARTING MOTOR

STARTER ASSEMBLY, engine, remanufactured, North America only

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, Starter, 12 volt, 2.5KW

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

AC170746

CORE-STARTER

Number return, use this number when returning starter for credit

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

2

A46948

HOUSING

HOUSING drive end

1шт.

3

A46949

IGNITION SWITCH

SWITCH ASSEMBLY, magnetic, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

SOLENOID

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET solenoid cover

1шт.

6

NSS

NOT SOLD SEPARAT

COVER solenoid

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW, Serial Range: cover-switch

3шт.

8

NSS

NOT SOLD SEPARAT

WASHER cover screw

3шт.

9

A47229

O-RING,2.4mm Thk x 47.2mm ID

O-RING, Serial Range: switch-housing

1шт.

A47243

BOLT

BOLT ASSEMBLY, through, Includes: Ref. 10 - 13

2шт.

10

NSS

NOT SOLD SEPARAT

BOLT through

1шт.

11

892-1106

LOCK WASHER,M6

LOCK WASHER, (1/4") M6

1шт.

12

195-516

WASHER,#12

WASHER flat, 1/4" x 9/16" x 1/16"

1шт.

13

A47127

O-RING

O-RING bolt seal

1шт.

14

A47231

CLUTCH

CLUTCH ASSEMBLY, drive

1шт.

15

211-209

BALL

BALL thrust, steel, 3/8" diameter

1шт.

16

A47232

SPRING

SPRING clutch drive, 2-13/16" free length

1шт.

17

A47233

GEAR

PINION idler

1шт.

18

A47234

WASHER

WASHER thrust, idler pinion

1шт.

19

A47235

ROLLER BEARING

ROLLER idler pinion bearing

6шт.

20

A47236

RETAINER

RETAINER roller bearings

1шт.

A47240

HOUSING

HOUSING ASSEMBLY, with coil and brushes, Includes: Ref. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING starter

1шт.

22

NSS

NOT SOLD SEPARAT

COIL field

1шт.

23

NSS

NOT SOLD SEPARAT

BRUSHES starter

2шт.

24

NSS

NOT SOLD SEPARAT

SHOE pole

4шт.

25

NSS

NOT SOLD SEPARAT

SCREW pole shoes

4шт.

26

NSS

NOT SOLD SEPARAT

BOOT magnetic switch terminal

1шт.

27

A47241

PLATE

PLATE lock

1шт.
