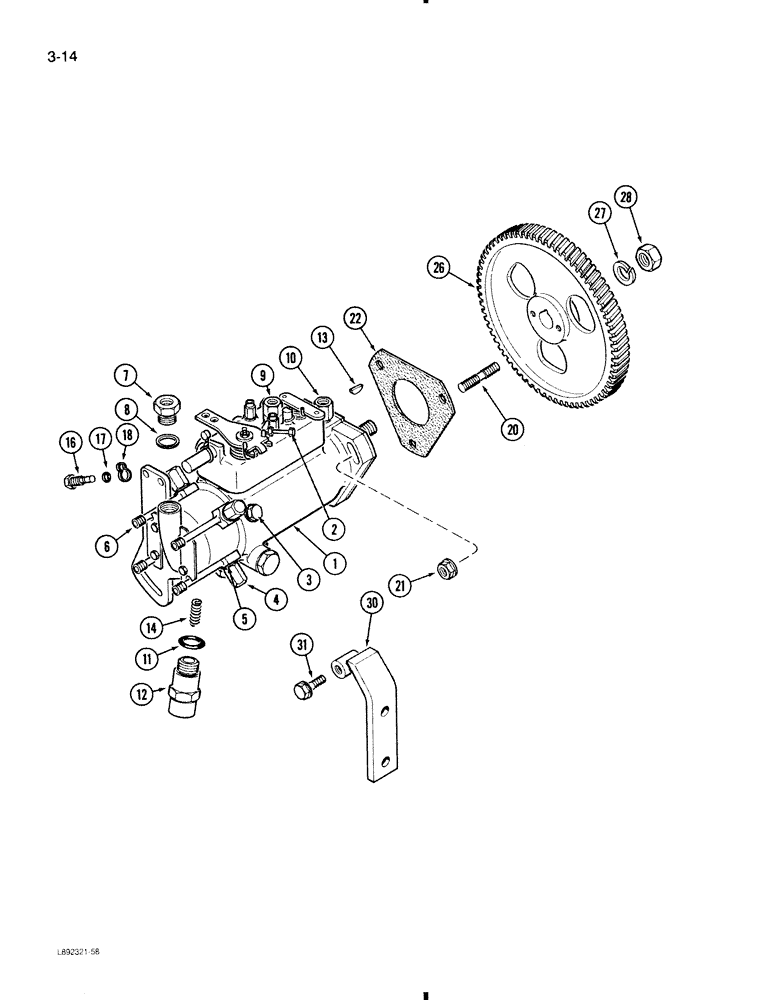

Запчасти Case 580K (3-014) - FUEL INJECTION PUMP AND DRIVE, 4-390 ENGINE, 4T-390 ENGINE (03) - FUEL SYSTEM

1

J916523

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY, fuel injection, new, 2200 RPM, 4-390

1шт.

1

JR916523

REMAN-INJECTION PUMP

Pump Assembly, fuel injection, remanufactured, 4-390

1шт.

1

JC916523

CORE-INJECTION PUMP

Return Part Number, use this part number to return pump core for credit

1шт.

1

J917063

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY, fuel injection, new, 2200 RPM, 4T-390, Includes: Ref. 2 - 18

1шт.

1

JR917063

REMAN-INJECTION PUMP

Pump Assembly, fuel injection, remanufactured, 4T-390

1шт.

1

JC917063

CORE-INJECTION PUMP

Return Part Number, use this part number to return pump core for credit

1шт.

2

J904637

SET SCREW

SCREW adjusting, low idle

1шт.

3

K963867

SCREW

SCREW ASSEMBLY, bleed, pump head

1шт.

4

J904646

BANJO BOLT

BOLT banjo

4шт.

5

J904644

WASHER

WASHER sealing

9шт.

6

K962755

ADAPTER

FITTING banjo

4шт.

7

J904641

FITTING

FITTING inlet

1шт.

8

K962748

WASHER

WASHER inlet fitting, copper

1шт.

9

J904640

VENT

ORIFICE bleed

1шт.

10

J904643

FITTING

FITTING return

1шт.

11

J904635

O-RING

O-RING solenoid

1шт.

12

J904630

SOLENOID

SOLENOID ASSEMBLY, shut down, 12 volt

1шт.

13

J902332

KEY

KEY retainer, pump gear

1шт.

14

J904777

SPRING

SPRING plunger

1шт.

16

J904778

BOLT

BOLT hex, locking device

1шт.

17

J904780

SEAL

SEAL locking bolt

1шт.

18

J904779

WASHER

WASHER locking

1шт.

20

J902501

STUD

STUD pump mounting, 8 mm - 1.25 x 48 mm

3шт.

21

J900589

NUT

NUT hex flange, 8 mm

3шт.

22

J914389

GASKET

GASKET pump mounting

1шт.

26

J912885

PINION

GEAR pump drive, Replaces: J914912

1шт.

27

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

28

J903738

NUT

NUT hex, 14 mm

1шт.

30

J916024

BRACE

BRACE fuel pump

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 20 mm

3шт.
