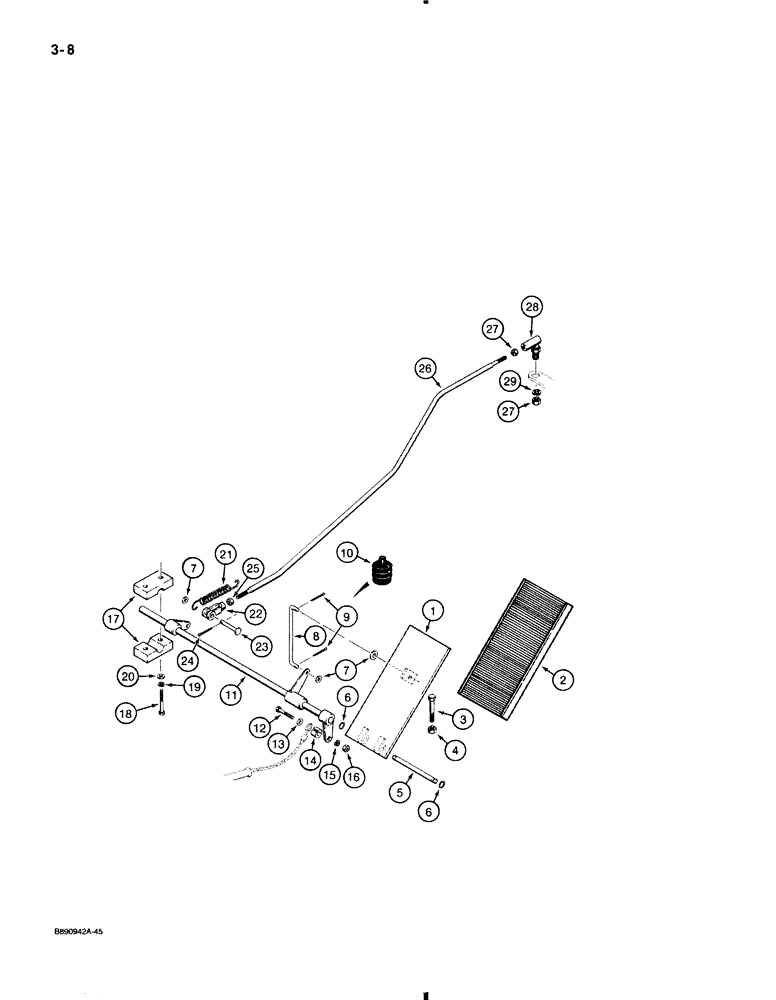

Запчасти Case 580K (3-008) - THROTTLE CONTROL LINKAGE, FOOT CONTROLS (03) - FUEL SYSTEM

1

D124863

PEDAL

accelerator

1шт.

2

D137499

COVER

accelerator pedal

1шт.

3

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

hex, 3/8" NC x 3-1/2"

1шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

D143413

PIN,9.52mm OD x 106mm L

pedal base

1шт.

6

D143414

CIRCLIP

RING retaining

2шт.

7

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

3шт.

8

D143428

STEM

ROD bent, accelerator pedal

1шт.

9

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

10

D85869

BELLOWS

BOOT accelerator pedal rod, at floor plate

1шт.

11

D124859

SHAFT

throttle

1шт.

12

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex head, plated, 5/16" - 18 NC x 1-1/4"

1шт.

13

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

14

D124865

SPACER

cable to cross shaft

1шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16

425-105

NUT,5/16"-18, G5

hex, plated, 5/16" - 18 NC

1шт.

17

D124857

CLAMP

BLOCK cross shaft

4шт.

18

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

4шт.

21

D93823

SPRING

throttle return

1шт.

22

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS adjustable, 5/16" - 24 NF

1шт.

23

141-65

CLEVIS PIN,5/16" x 1 1/8"

PIN clevis, plated, special length, 5/16"

1шт.

24

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

25

425-115

NUT,5/16"-24, G5

hex, 5/16" - 24 NF

1шт.

26

D147425

ROD

throttle, to injection pump

1шт.

27

425-114

NUT,1/4"-28, G5

2шт.

28

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ball, at injection pump

1шт.

29

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
