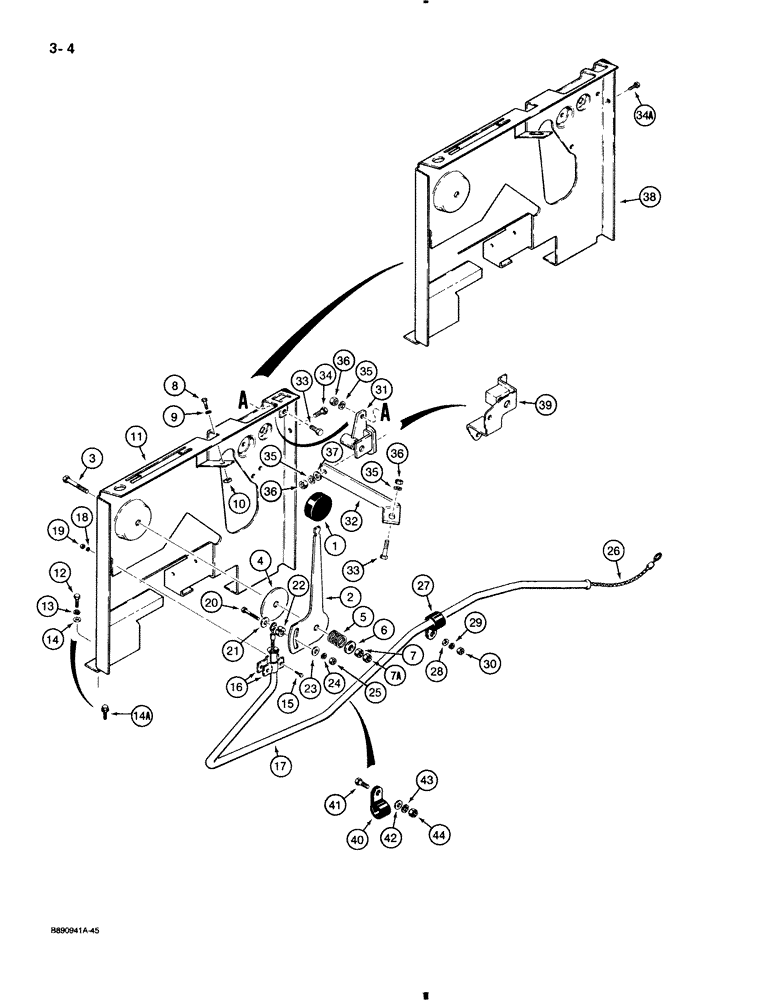

Запчасти Case 580K (3-004) - THROTTLE CONTROL LINKAGE, HAND CONTROL (03) - FUEL SYSTEM

1

A177435

BALL KNOB

KNOB hand throttle

1шт.

2

D135409

LEVER

hand throttle

1шт.

3

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex head, plated, 1/2" - 13 NC x 2-1/2"

1шт.

4

D139323

FRICTION WASHER

DISC friction, throttle bracket

1шт.

5

A34113

SPRING

throttle control lever

1шт.

6

495-11053

WASHER,1/2", SAE

1шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

7a

131-70

NUT,1/2"-13, GB

NUT hex, self locking, plated, 1/2" - 13 NC

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex head, plated, 5/16" - 18 NC x 3/4"

1шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

square, 5/16" - 18 NC

1шт.

11

D142169

SUPPORT

BRACKET throttle control, no longer available, for service order D147161 bracket and D146892 bellcrank, Ref. 38 and 39, D146895 plug and D148684 spring on Figure 6-032, Ref. 18A and 20

1шт.

12

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4", if used, may be replaced by self tapping screw, Ref. 14A

5шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Used with Ref. 12, if used 5/16"

5шт.

14

495-11034

WASHER,5/16", SAE

flat, Used with Ref. 12, if used 5/16", SAE

5шт.

14a

D141589

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW hex washer, self tapping, 5/16 NC x 3/4", if used

5шт.

15

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

hex head, plated, 1/4" - 20 NC x 1"

2шт.

16

D127819

CLAMP

cable guide tube

2шт.

17

D142057

TUBE

cable guide

1шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

425-104

NUT,1/4"-20, Cl 5

2шт.

20

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex head, plated, 5/16" - 18 NC x 1-1/4"

1шт.

21

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

22

D124865

SPACER

cable to throttle control lever

1шт.

23

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

1шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

25

425-105

NUT,5/16"-18, G5

hex, plated, 5/16" - 18 NC

1шт.

26

D142938

CABLE

hand throttle, 62-7/32", 1580 mm long

1шт.

27

49771

CLAMP

P-type, cable guide, Serial Range: tube-floorplate

1шт.

28

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

1шт.

29

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

30

425-105

NUT,5/16"-18, G5

hex, plated, 5/16" - 18 NC

1шт.

31

D145303

SUPPORT

BELLCRANK shift detent, see Figure 6-032 for attaching parts, if used

1шт.

32

D142395

LARGE PLATE

SUPPORT throttle brace, mounts at hole in right fender

1шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1"

1-2шт.

34

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8" NC x 1-1/4", if used

1шт.

34a

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

If used Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

35

492-11038

LOCK WASHER,3/8"

3шт.

36

425-106

NUT,3/8"-16, Cl 5

3шт.

37

495-21044

WASHER,3/8"

1шт.

38

D147161

SUPPORT

BRACKET throttle control

1шт.

39

D146892

SUPPORT

BELLCRANK shift detent, used with D147161 bracket, Ref. 38, see Figure 6-032 for attaching parts, if used

1шт.

40

D146409

CLAMP

throttle cable

1шт.

41

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

hex, 3/8" NC x 4"

1шт.

42

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, 3/8"

1шт.

43

492-11038

LOCK WASHER,3/8"

1шт.

44

425-106

NUT,3/8"-16, Cl 5

1шт.
