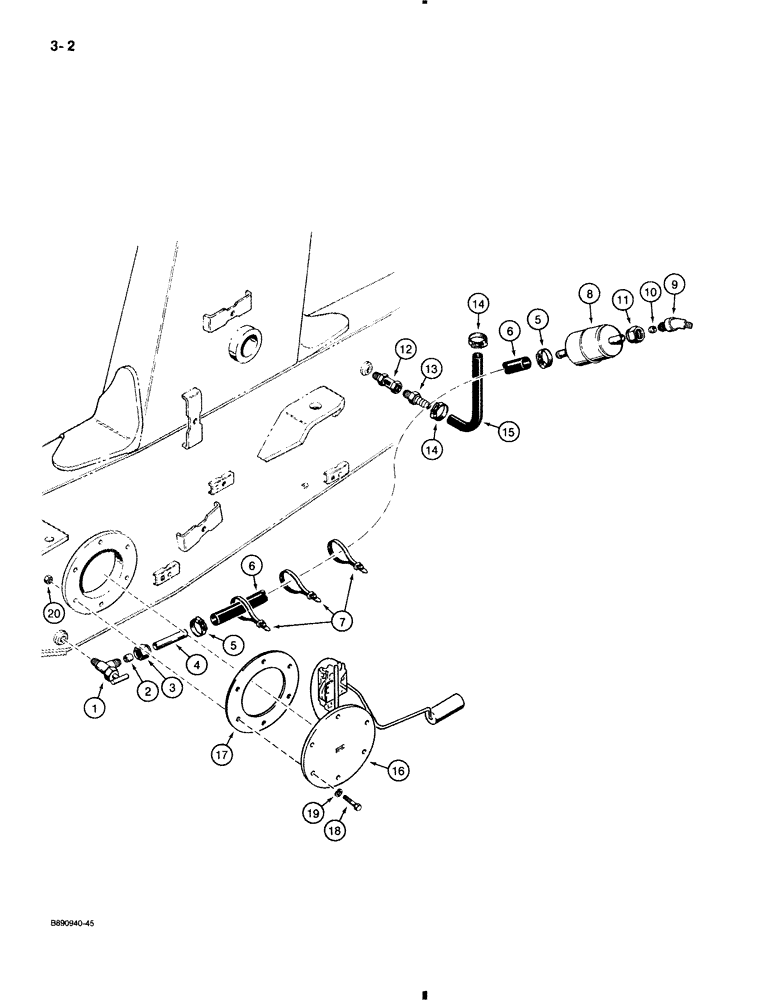

Запчасти Case 580K (3-002) - FUEL RESERVOIR LINES AND FUEL LEVEL SENDER (03) - FUEL SYSTEM

D74027

VALVE

ASSEMBLY, shutoff, fuel tank outlet, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BODY shutoff valve

1шт.

2

222-654

FERRULE,3/8" Tube, Comp

compression fitting

1шт.

3

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT compression fitting

1шт.

4

D145358

TUBE

fuel line

1шт.

5

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP hose

2шт.

6

D145096

FUEL HOSE,9.52 mm ID x 1260.00 mm

9.52 mm ID x 1260.00 mm

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, valve tube, 15"

3шт.

8

D145357

FILTER

fuel, in-line

1шт.

222-95

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

ASSEMBLY, compression fitting, to engine fuel pump, 45°, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

BODY elbow

1шт.

10

222-104

SLEEVE,3/8" Tube

compression fitting, for 3/8" OD tube

1шт.

11

222-114

NUT,5/8"-24

NUT compression fitting, for 3/8" OD tube

1шт.

12

A177556

CHECK VALVE,1/4" NPT x 1/4" NPT

VALVE check, anti-drain

1шт.

13

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

barb, straight

1шт.

14

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP engine injector return hose

2шт.

15

D141617

FUEL HOSE,6.35 mm ID x 241.00 mm, SAE J30, 30R6 or SAE 30R7

6.35 mm ID x 241.00 mm SAE J30, 30R6 Or SAE 30R7, Engine Injector Return Line, Cut From A21561 Bulk Hose, See Below

1шт.

16

D141953

GAUGE

SENDER fuel level, without lead wire

1шт.

17

D129228

GASKET

fuel level sender

1шт.

18

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Bulk

1шт.
