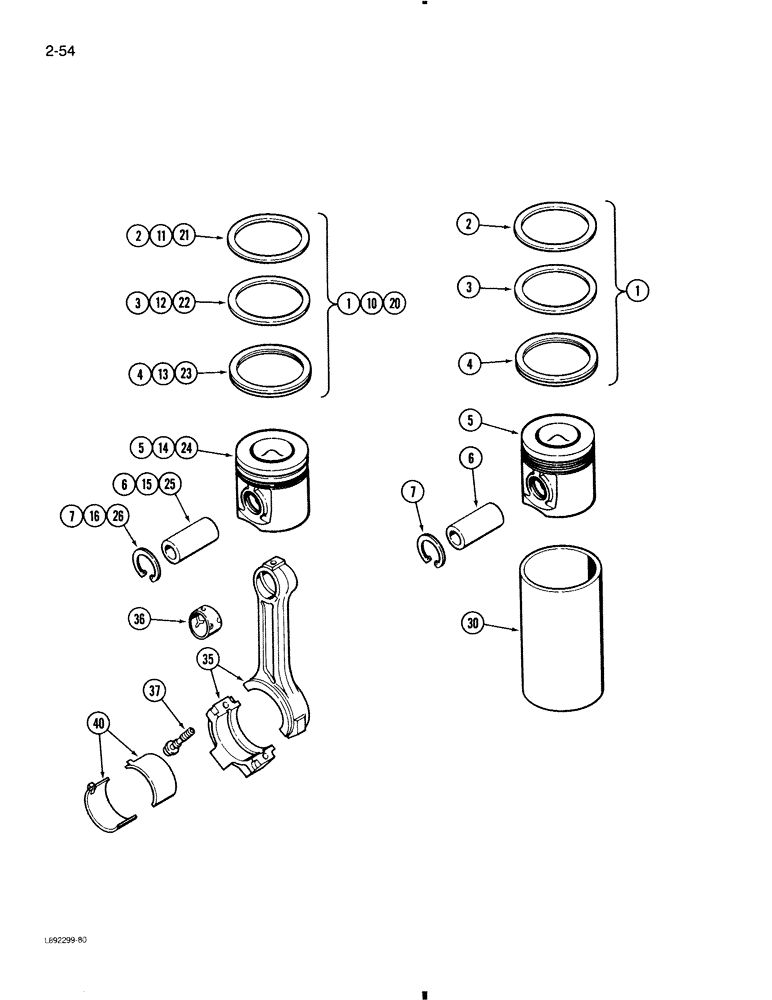

Запчасти Case 580K (2-054) - PISTONS, 4T-390 ENGINE (02) - ENGINE

A77419

PISTON

KIT engine, standard, Includes: Ref. 1 and 5 - 7

4шт.

1

A77500

PISTON RING SET

RING KIT piston, standard, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

3

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

4

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON engine, standard, stamped 7163

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J901706

RING

retainer, pin

2шт.

A77638

PISTON

KIT engine, 0.5 mm oversize, Includes: Ref. 10 and 14 - 16

4шт.

10

A77501

PISTON RING SET

RING KIT engine, 0.5 mm oversize, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

12

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

13

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON engine, 0.5 mm oversize, stamped 8815

1шт.

15

J901793

PISTON PIN

PIN - piston

1шт.

16

J901706

RING

retainer, pin

2шт.

A77637

PISTON

KIT engine, 1.0 mm oversize, Includes: Ref. 20 and 24 - 26

4шт.

20

A77502

PISTON RING SET

RING KIT engine, 1.0 mm oversize, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

22

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

23

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON engine, 1.0 mm oversize, stamped 8816

1шт.

25

J901793

PISTON PIN

PIN - piston

1шт.

26

J901706

RING

retainer, pin

2шт.

30

J904166

SLEEVE

LINER piston, used only in engine block repair, when liner is installed, use only A77419 piston kit

1шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY, connecting, new, Includes: Ref. 36 and 37

4шт.

35

JR901569

ROD

Assembly, connecting, remanufactured

4шт.

35

JC901569

CORE-ROD CONNECTING

Return Number, use this part number to return connecting rod for credit

4шт.

35

84145405R

REMAN-CONNECTING ROD

580K ASN JJG0020000, Reman For New PN J901569

4шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

35

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

35

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

36

J901085

BUSHING

connecting rod to piston pin, order J901569

1шт.

A special tool, CAS10900, is required to install bushing.

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT hex special, connecting rod, MJ11 - 1.25 x 59 mm

2шт.

40

A77465

BEARING SET

BEARING KIT connecting rod, upper and lower set, standard

4шт.

40

A77466

BEARING SET

BEARING KIT connecting rod, upper and lower set, 0.25 mm undersize

4шт.

40

A77467

BEARING LINER

BEARING KIT connecting rod, upper and lower set, 0.5 mm undersize

4шт.

40

A77468

BEARING SET

BEARING KIT connecting rod, upper and lower set, 0.76 mm undersize

4шт.

40

A77469

BEARING SET

BEARING KIT connecting rod, upper and lower set, 1.0 mm undersize

4шт.
