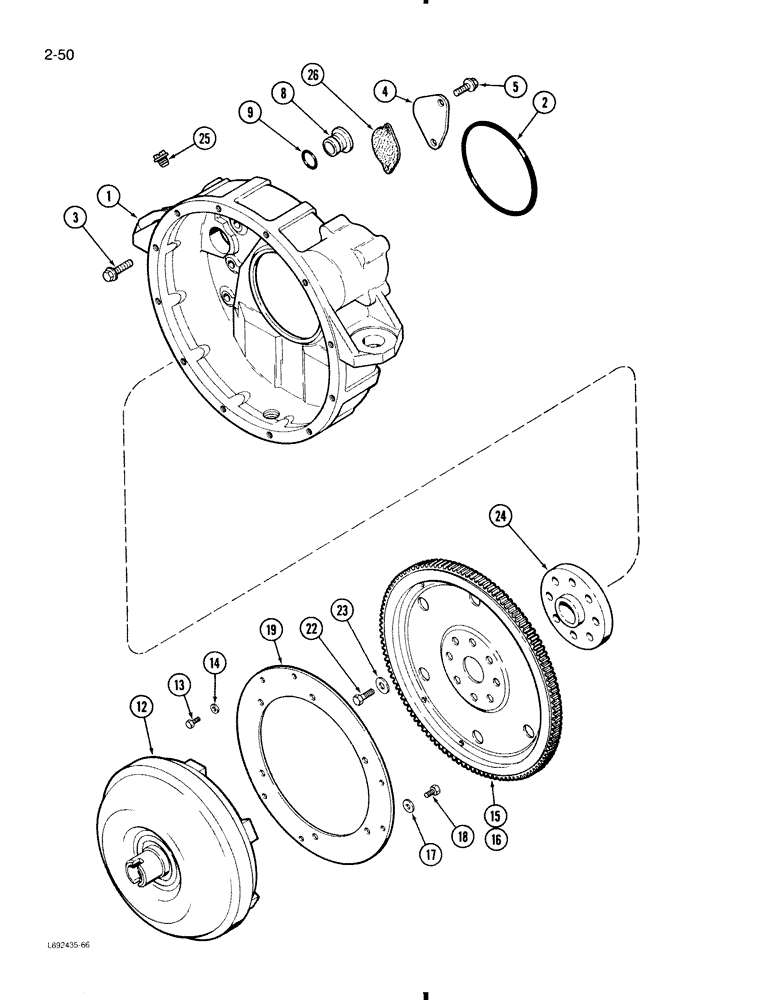

Запчасти Case 580K (2-050) - FLEX PLATE AND HOUSING, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J903287

CASE

HOUSING flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING, Serial Range: housing-block

1шт.

3

845-12040

BOLT,Hex Flg, M12 x 40, 8.8

hex flange, 12 mm - 1.75 x 40 mm

8шт.

4

J908095

PLATE

cover

1шт.

5

J902735

BOLT,M8 - 1.25 x 21 mm

hex, flange, self tapping, 8 mm - 1.25 x 21 mm

2шт.

8

J910248

PLUG

housing

1шт.

9

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Plug, flywheel housing -212, 70 Duro, .859" ID x .139" Thk

1шт.

12

A186701

CONVERTER

torque, without PTO

1шт.

See Figures 6-010 and 6-012 for the torque converter housing assembly.

1шт.

12

A186704

CONVERTER

torque, with PTO

1шт.

See Figures 6-010 and 6-012 for the torque converter housing assembly.

1шт.

13

28-510

BOLT,Hex, 5/16" - 24 x 5/8", Gr 8

6шт.

14

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

flat, hardened

6шт.

15

J907630

FLYWHEEL

PLATE ASSEMBLY, flex, Includes: Ref. 16

1шт.

16

J901774

GEAR,Flywheel

GEAR flywheel, 159-tooth

1шт.

P/N J901774 should not be a service part for 580K's. Service advises that the entire flex plate assembly should be ordered due to potential warping when welding ring gear to flex plate.

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

6шт.

18

826-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

6шт.

19

A178706

PLATE

adapter

1шт.

22

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, 12 mm - 1.25 x 32 mm

8шт.

23

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, flywheel bolt

8шт.

24

J913689

FLANGE

ADAPTER crankshaft

1шт.

25

353-225

PLUG,Sltd Hd, 3/4"-16

- hex head, 3/4 inch NF

1шт.

26

J908096

GASKET

cover plate

1шт.
