(2-048) - CRANKSHAFT, 4-390 ENGINE, 4T-390 ENGINE

Запчасти Case 580K (2-048) - CRANKSHAFT, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

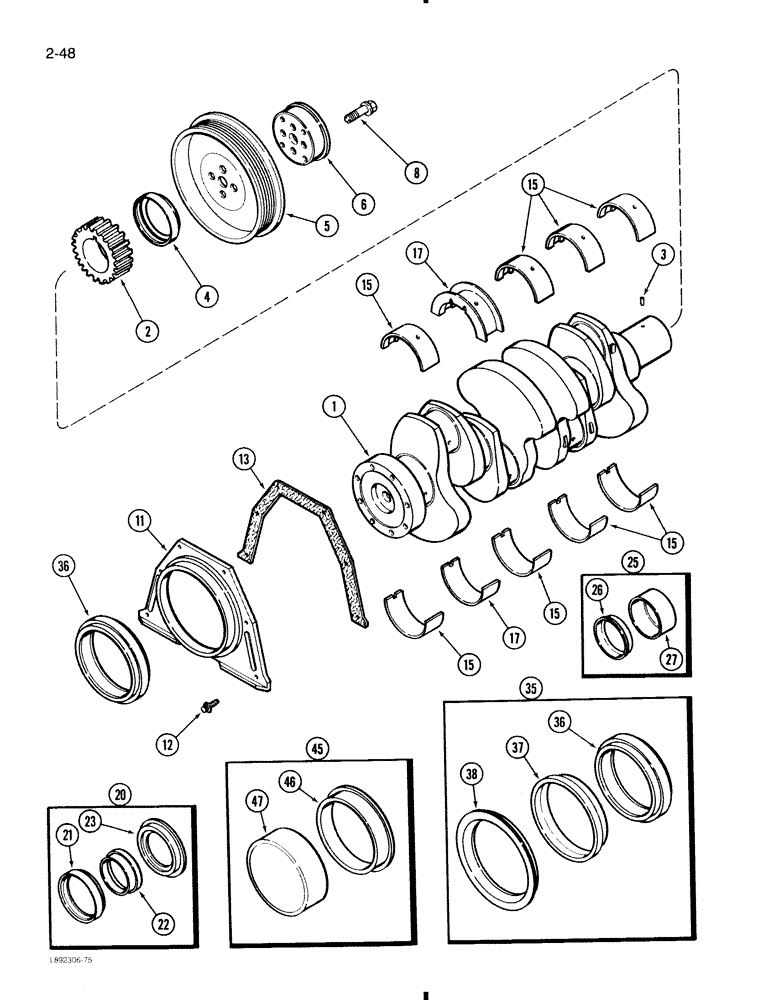

Схема запчастей Case 580K - (2-048) - CRANKSHAFT, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE
15
11
38
17
36
15
35
45
26
47
20
23
15
15
27
12
13
2
25
6
17
8
1
36
21
5
46
4
3
15
37
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

JR918323

CRANKSHAFT

ASSEMBLY, remanufactured, North America only

1шт.

J929036R

REMAN-CRANKSHAFT

580K ASN JJG0020000, Reman For New P/N JR918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

NUMBER return, use this part number to return crankshaft for credit

1шт.

1

J918323

CRANKSHAFT

ASSEMBLY, engine, new, Replaces: J916190, Includes: Ref. 2 and 3

1шт.

J929036R

REMAN-CRANKSHAFT

580K (ASN JJG0020000), Reman for New P/N J918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J912883

PINION

GEAR crankshaft, Replaces: J901258

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft, front, order Ref. 20

1шт.

5

J914494

PULLEY,181.25mm OD

crankshaft dampener

1шт.

6

J905820

ADAPTER

FLANGE adapter, pulley

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

hex flange, 12 mm - 1.75 x 36 mm

4шт.

11

J913447

SEAL RETAINER

RETAINER rear seal

1шт.

12

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

13

J914386

GASKET

seal retainer

1шт.

15

A77405

CRANKSHAFT BEARING

BEARING KIT main, upper and lower set, standard

4шт.

15

A77472

BEARING SET

BEARING KIT main, upper and lower set, 0.25 mm undersize

4шт.

15

A77474

BEARING SET

BEARING KIT main, upper and lower set, 0.5 mm undersize

4шт.

15

A77476

BEARING SET

BEARING KIT main, upper and lower set, 0.75 mm undersize

4шт.

15

A77478

BEARING SET

BEARING KIT main, upper and lower set, 1.0 mm undersize

4шт.

17

A77406

CRANKSHAFT BEARING

BEARING KIT thrust, main, upper and lower set, standard

1шт.

17

A77473

THRUST BEARING

BEARING KIT thrust, main, upper and lower set, 0.25 mm undersize

1шт.

17

A77475

THRUST BEARING

BEARING KIT thrust, main, upper and lower set, 0.5 mm undersize

1шт.

17

A77477

THRUST BEARING

BEARING KIT thrust, main, upper and lower set, 0.75 mm undersize

1шт.

17

A77479

THRUST BEARING

BEARING KIT thrust, main, upper and lower set, 1.0 mm undersize

1шт.

20

J904353

GASKET KIT

KIT oil seal, crankshaft, front, Includes: Ref. 21 - 23

1шт.

For dust shield, not used in production, P/N J926430 is available to help prevent dust from being ingested by J904353 crank seal.

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

25

J906080

PACKAGE, REPAIR

KIT wear sleeve, crankshaft, front, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

35

J909411

SEAL

KIT oil seal, crankshaft, rear, Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

38

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

45

J906081

SLEEVE

KIT wear sleeve, crankshaft, rear, Includes: Ref. 46 and 47

1шт.

46

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

47

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.
