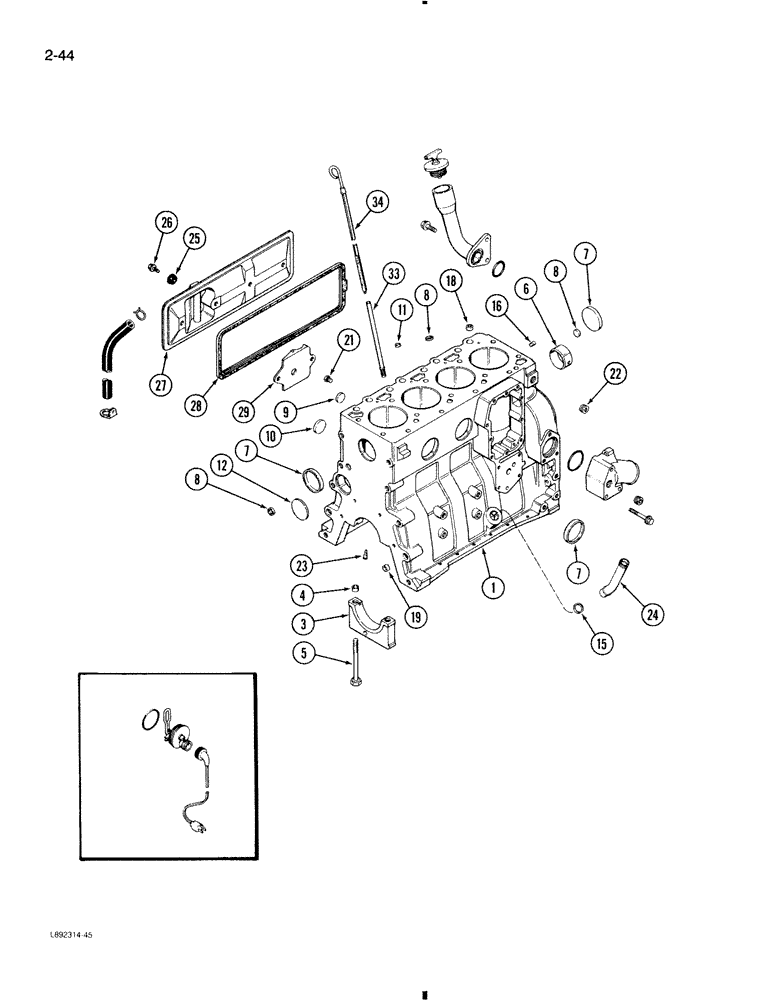

Запчасти Case 580K (2-044) - CYLINDER BLOCK, 4T-390 ENGINE (02) - ENGINE

A174227

ENGINE ASSEMBLY

4T-390 standard, complete, new, Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe

1шт.

1989068C2R

REMAN-REPLACEMENT EN

Remanufactured

1шт.

4T-390C

CORE-REPLACEMENT ENG

Return Part Number Complete

1шт.

A174255

ENGINE

ASSEMBLY, 4T-390 optional, complete, new, with security module, Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe

1шт.

A174352

BASIC ENGINE

ENGINE ASSEMBLY, basic, new

1шт.

Includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley and belt tensioner.

1шт.

AR174352

ENGINE, EXCHANGE

Engine Assembly, remanufactured

1шт.

AC174352

CORE-ENGINE

Return Part Number, use this part number to return engine assembly core for credit

1шт.

J905378

SKELETON ENGINE

BLOCK ASSEMBLY, short, engine, new, Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, order short block and J905813

1шт.

JR905378

BLOCK

Assembly, short, engine, remanufactured Includes: Ref. 1

1шт.

JC905378

CORE-ENGINE

Return Part Number, use this part number to return short block core for credit

1шт.

JR933236

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933236

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J905376

CRANKCASE

BLOCK ASSEMBLY, stripped, engine, order block and J905813, Includes: Ref. 3 - 9

1шт.

3

J900967

BEARING CAP

CAP main bearing

5шт.

4

J900068

BEARING WASHER

RING dowel, 18 mm OD

10шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

bearing cap, special

10шт.

6

REF

INSTRUCTION

BUSHING camshaft, front, see Figure 2-50

1шт.

7

J900965

PLUG

expansion, 58 mm OD

4шт.

8

J900956

PLUG

expansion, 18 mm OD

3шт.

9

A77539

PLUG

expansion, 26 mm

2шт.

J905813

PACKAGE, REPAIR

KIT block hardware, Includes: Ref. 10 - 23

1шт.

10

J900958

PLUG

expansion, 32 mm OD

2шт.

11

J900955

PLUG

expansion, 10 mm OD

1шт.

12

J900687

PLUG

expansion, Welch, 60 mm OD

1шт.

15

A77439

PLUG

expansion, 0.886 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long

2шт.

18

J902343

DOWEL

RING dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

hex socket pipe, 1/8"-27 PT

2шт.

22

J901020

NOZZLE CAP

NOZZLE piston cooling

4шт.

23

A77429

PLUG

hex socket pipe, 1/4"-18 PT

1шт.

24

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE drain, oil

1шт.

25

J900267

SEAL

ASSEMBLY, cover bolt

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

hex, 8 mm - 1.25 x 16 mm

2шт.

27

J916441

COVER

tappet

1шт.

28

J904056

GASKET

tappet cover

1шт.

29

J907586

BAFFLE

tappet cover

1шт.

33

J905779

TUBE,9.52 mm OD x 228 mm L

dipstick

1шт.

34

J905781

DIPSTICK

oil level gauge

1шт.
