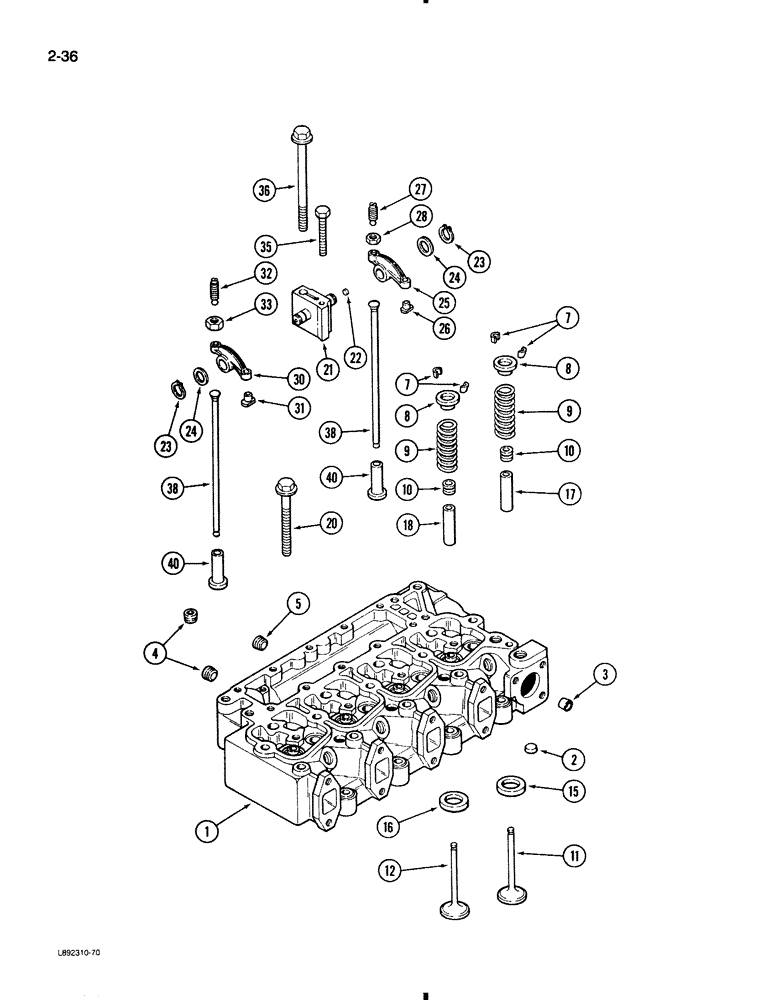

Запчасти Case 580K (2-036) - VALVE MECHANISM, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

JR910275

HEAD (CYLINDER)

HEAD cylinder, remanufactured, North America only

1шт.

JC910275

CORE-CYLINDER HEAD

NUMBER return, use this part number to return head core for credit

1шт.

1

J910275

HEAD (CYLINDER)

HEAD ASSEMBLY, cylinder, new, with valves, Includes: Ref. 1 (P/N J913389) and Ref. 4 - 12

1шт.

1

J913389

HEAD (CYLINDER)

HEAD ASSEMBLY, cylinder, without valves, Includes: Ref. 2 and 3

1шт.

2

J902606

PLUG

expansion, 21 mm OD

3шт.

3

J909403

BUSHING

SLEEVE cylinder head

1шт.

4

A77429

PLUG

hex socket pipe, 1/4-18 PT

5шт.

5

J906619

PLUG,1/8" - 27

hex socket pipe, 1/8-27 PT

2шт.

7

CASJ900250

RETAINER

KEEPER valve

16шт.

8

J900299

RETAINER

valve spring

8шт.

9

J900276

VALVE SPRING

SPRING valve

8шт.

10

J901097

SEAL

valve

8шт.

11

J901117

VALVE

intake

4шт.

12

J901607

VALVE

exhaust

4шт.

15

J906854

SEAT, VALVE

SEAT insert, intake valve, service repair only

4шт.

16

J904105

SEAT, VALVE

SEAT insert, exhaust valve, service repair only

4шт.

17

J904408

GUIDE

valve, intake, 14 mm OD, service repair only

4шт.

18

J904409

GUIDE

valve, exhaust, 14 mm OD, service repair only

4шт.

J906206

GUIDE

valve, intake and exhaust, 11 mm OD, service repair only

8шт.

20

J903938

BOLT

hex flange, 12 mm - 1.75 x 70 mm

4шт.

20

J903939

BOLT

hex flange, 12 mm - 1.75 x 120 mm

10шт.

21

J910814

SUPPORT

AND SHAFT ASSEMBLY, rocker arm, Includes: Ref. 22

4шт.

22

J907555

PLUG

rocker arm shaft, 1/4-18 PT

1шт.

23

J900242

SNAP RING

RING retaining, rocker arm

8шт.

24

J900245

WASHER

thrust, rocker arm

8шт.

25

J910811

ROCKER

ARM ASSEMBLY, rocker, intake, Includes: Ref. 26 - 28

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW slotted set adjusting, 3/8" NF x 40 mm

1шт.

28

25-116

NUT,Hex, 3/8"-24, G5

hex jam, 3/8" NF, Replaces A77558

1шт.

30

J910810

ROCKER

ARM ASSEMBLY, rocker, exhaust, Includes: Ref. 31 - 33

4шт.

31

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

32

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW slotted set adjusting, 3/8" NF x 40 mm

1шт.

33

25-116

NUT,Hex, 3/8"-24, G5

hex jam, 3/8" NF, Replaces A77558

1шт.

35

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

- hex, 8 mm - 1.25 x 75 mm

4шт.

36

J903940

BOLT

hex flange, 12 mm - 1.75 x 180 mm

4шт.

38

J904679

PUSH ROD

ROD push, rocker arm

8шт.

40

J907240

TAPPET

valve, push rod

8шт.
