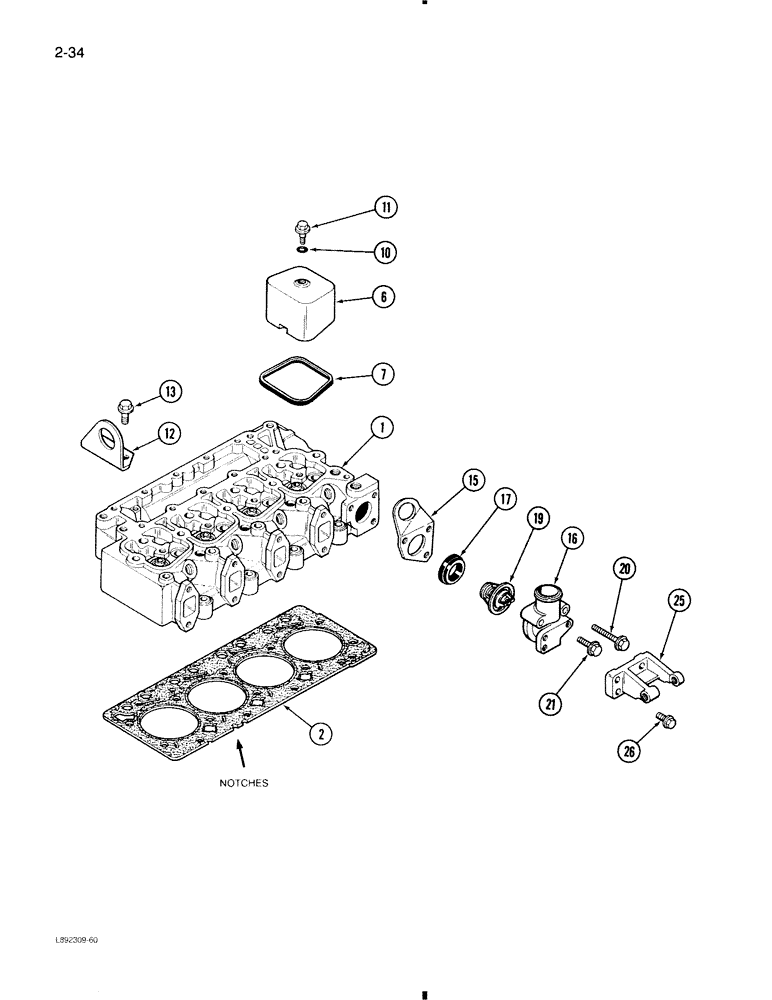

Запчасти Case 580K (2-034) - CYLINDER HEAD AND COVERS, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, engine, see Page 2-37

1шт.

2

J282999

GASKET

cylinder head, standard, one notch, Replaces: J917354

1шт.

2

J921395

CYLINDER HEAD GASKET

cylinder head, 0.23 mm thicker, two notches, Replaces: J917355

1шт.

2

J921397

GASKET

cylinder head, 0.51 mm thicker, three notches, Replaces: J917356

1шт.

6

J902604

COVER

rocker

4шт.

7

J902666

GASKET

SEAL rocker cover

4шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

4шт.

11

J907049

BOLT,Hex

special, 8 mm - 1.25 x 21.25 mm

4шт.

12

J908118

BRACKET

lifting, rear

1шт.

13

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

hex flange, 12 mm - 1.75 x 25 mm

2шт.

15

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

16

J914409

HOUSING

thermostat

1шт.

17

J903301

GASKET

housing, thermostat

1шт.

19

J917324

THERMOSTAT

water, housing, Replaces: J912587

1шт.

20

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 70 mm, Thermostat and housing

2шт.

21

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

hex flange, 8 mm - 1.25 x 35 mm, Thermostat and housing

1шт.

25

J910713

SUPPORT

alternator mounting, thermostat and housing

1шт.

26

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex flange, 8 mm - 1.25 x 25 mm, thermostat and housing

3шт.
