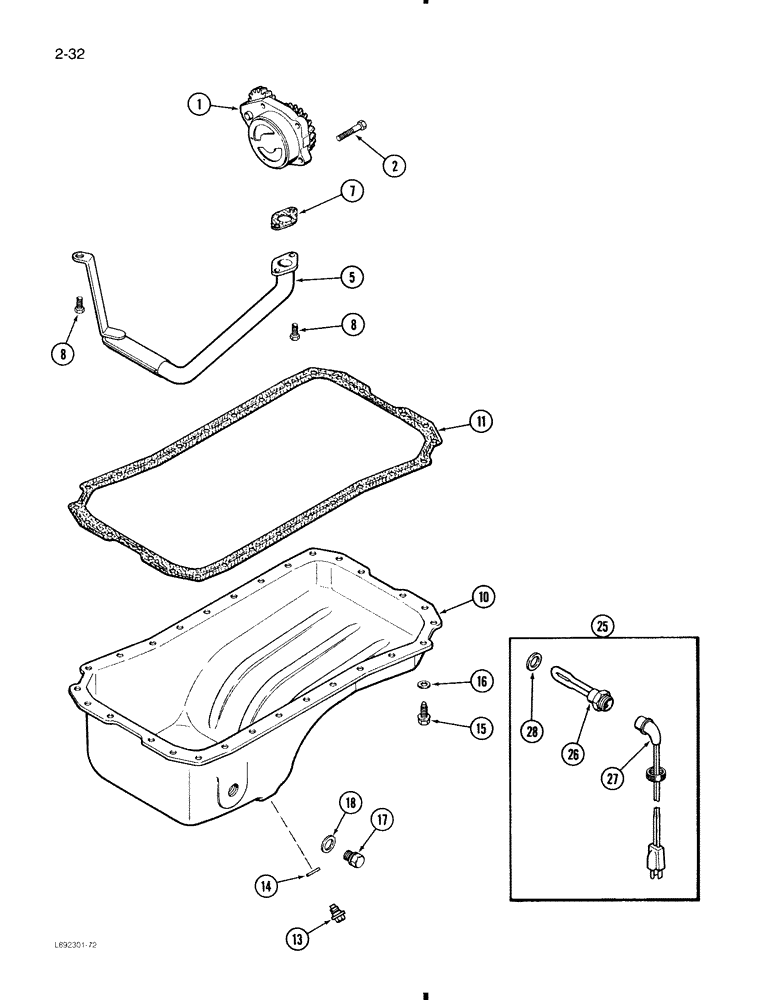

Запчасти Case 580K (2-032) - OIL PUMP AND OIL PAN, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J914005

PUMP, ENGINE OIL

PUMP ASSEMBLY, oil, engine

1шт.

JR914005

PUMP

PUMP oil, remanufactured, North America only

1шт.

JC914005

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP NUMBER return, use this part number to return pump core for credit

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT hex, 8 mm - 1.25 x 30 mm

4шт.

5

J905206

TUBE,1" OD

TUBE suction, oil

1шт.

7

J914383

GASKET

GASKET mounting, tube

1шт.

Part of oil pan gasket kit P/N A77673.

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT hex, 8 mm - 1.25 x 16 mm

3шт.

10

J901049

PAN, ENGINE OIL

PAN, OIL PAN oil, engine

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET oil pan

1шт.

Part of oil pan gasket kit P/N A77673.

1шт.

13

J911638

PLUG,M18 x 1.5

PLUG drain, oil magnetic

1шт.

14

J900216

PACKING RING

WASHER seal, drain plug

1шт.

Part of oil pan gasket kit P/N A77673.

1шт.

15

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange, special, 8 - 1.25 x 25 mm

28шт.

16

J907537

SPRING WASHER

WASHER spring, pan bolt

28шт.

17

J904386

PLUG

PLUG pipe

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER seal, plug

1шт.

A77673

GASKET KIT

KIT gasket, oil pan, Includes: Ref. 7, 11 and 14

1шт.

25

A77490

KIT

KIT heater, engine oil, Includes: Ref. 26 and 27

1шт.

When kit is ordered, J902425 washer, Ref. 28, must also be ordered.

1шт.

26

NSS

NOT SOLD SEPARAT

ELEMENT heater, 12 volt, order A77490, engine oil

1шт.

27

J905113

CABLE

CABLE heater electric, engine oil

1шт.

28

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER seal, engine oil heater

1шт.
