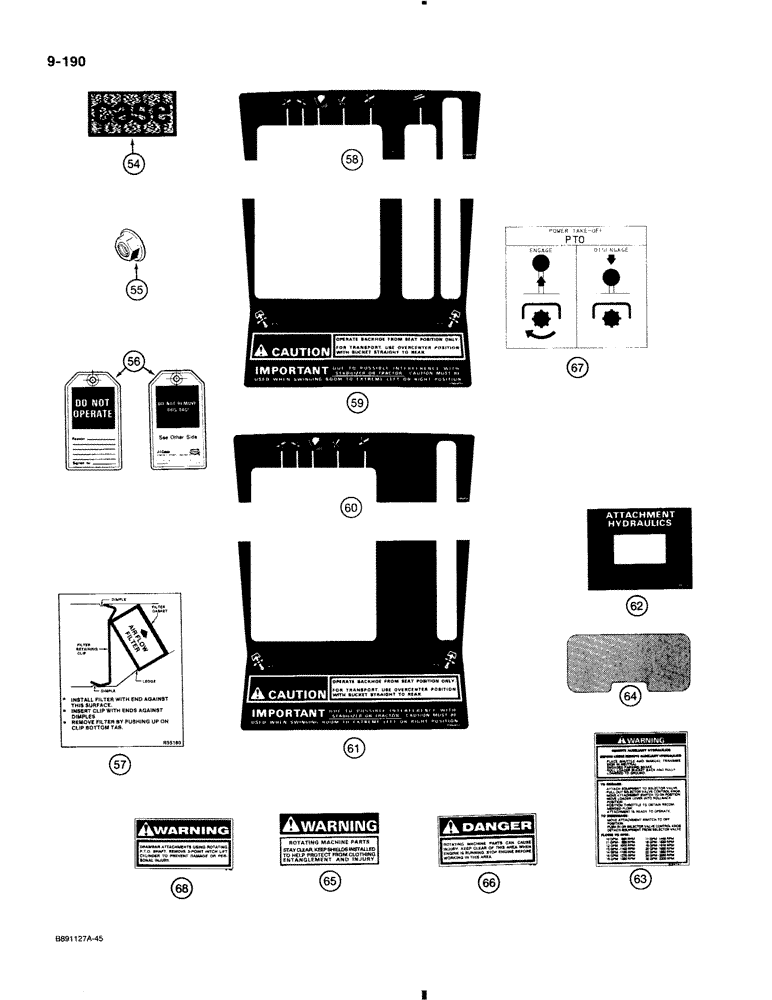

Запчасти Case 580K (9-190) - DECALS (09) - CHASSIS/ATTACHMENTS

54

321-4739

EMBLEM

Case, on grille

1шт.

55

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT push on type, plated, attaches emblem to grille, 1/4"

2шт.

56

321-4614

TAG

Do Not Operate

1шт.

57

R55180

DECAL

Air Flow Filter, cab models

1шт.

58

D140856

DECAL

tilt backhoe control pattern, upper, used on models without extendable dipper or with optional rear hydraulic attachments

1шт.

59

D140857

DECAL

tilt backhoe control pattern, lower, used on models without extendable dipper or with optional rear hydraulic attachments

1шт.

60

D140858

DECAL

tilt backhoe control pattern, upper, used on models with extendable dipper or with optional rear hydraulic attachments

1шт.

61

D140859

DECAL

tilt backhoe control pattern, lower, used on models with extendable dipper or with optional rear hydraulic attachments

1шт.

62

D143742

DECAL

Attachment Hydraulics, for use on models with hand held attachments

1шт.

63

D143741

DECAL

Warning, Remote Auxiliary Hydraulics, for use on models with hand held attachments

1шт.

64

D145370

DECAL

strip, prevents latch from scratching upright cover and hood

2шт.

65

321-3710

DECAL

Warning, rotating machine parts, stay clear, keep shields installed, for use on models with PTO

1шт.

66

321-7007

DECAL

Danger, rotating machine parts can cause injury, for use on models with PTO

2шт.

67

D148643

DECAL

PTO selector

1шт.

68

321-7008

DECAL

Warning, drawbar attachments using rotating PTO shaft

1шт.
