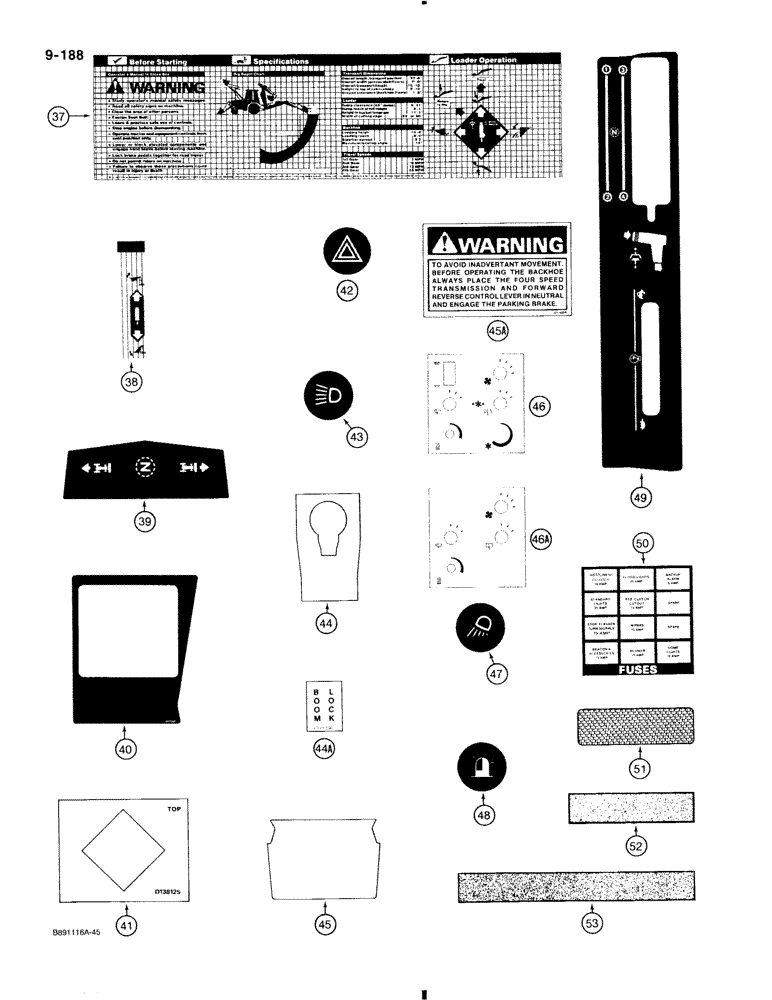

Запчасти Case 580K (9-188) - DECALS (09) - CHASSIS/ATTACHMENTS

37

D144215

DECAL

Warning, before starting engine study operator's manual messages/dig depth specs/loader control pattern, front instrument panel, storage compartment

1шт.

38

D138704

DECAL

clam bucket control pattern, front instrument panel, storage compartment

1шт.

39

D137615

DECAL

shuttle shift lever control pattern, on steering column cover

1шт.

40

D137399

DECAL

at loader control lever boot, front console

1шт.

41

D138125

DECAL

transparent green, under turn signal arrow symbols

2шт.

42

D141643

DECAL

flasher lamp symbol, front console switch plate

1шт.

43

D137272

DECAL

driving lamp symbol, front console switch plate

1шт.

44

R53911

DECAL

left hand cab console, upper, at cup holder

1шт.

44a

L111356

DECAL

boom lock

1шт.

45

R53912

DECAL

left hand cab console, lower

1шт.

45a

321-6958

DECAL

Warning, to avoid inadvertant movement before operating the backhoe

1шт.

46

97300C2

DECAL

instrument symbols, heater, air conditioner, blower, wipers, and dome lamp, cab control panel, models with air conditioning

1шт.

46a

97301C2

DECAL

instrument symbols, heater, blower, wipers, and dome lamp, cab control panel, models without air conditioning

1шт.

47

D137273

DECAL

optional work lamp symbol, right hand console switch plate

1шт.

48

D137279

DECAL

rotating beacon symbol, right hand console switch plate

1шт.

49

D140826

DECAL

hand throttle control pattern, right hand side console

1шт.

50

D148058

DECAL

fuse location, fuse box cover, Replaces D132958 decal

1шт.

51

D87870

DECAL

REFLECTOR red

2шт.

52

D55216

PAD,2" x 9"

STRIP anti-skid, steps

6шт.

53

D80270

ANTI-SKID STRIP,635mm / 25 Inch

STRIP, ANTI-SKID, Operators compartment

1шт.
