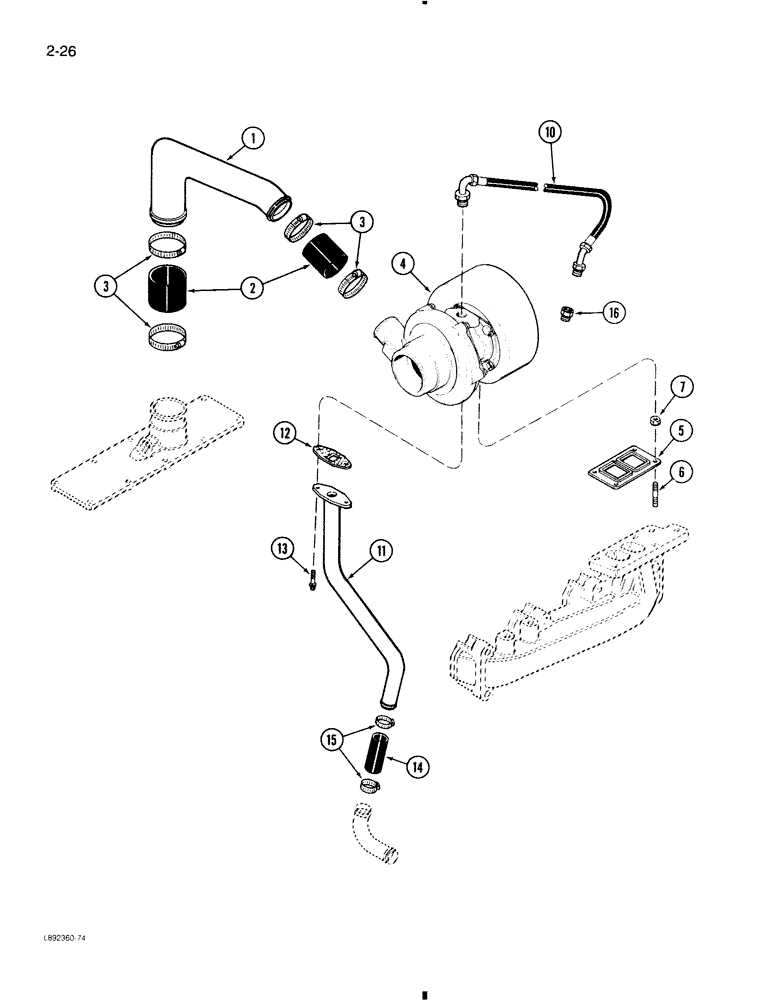

Запчасти Case 580K (2-026) - TURBOCHARGER SYSTEM, 4T-390 ENGINE (02) - ENGINE

1

J912240

TUBE,50.8 mm OD x 321.6 mm L

air intake

1шт.

2

J916166

INTAKE AIR HOSE

HOSE crossover, Replaces: J901804

2шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

4

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY, engine, see Figure 2-028

1шт.

5

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

6

J905417

STUD

mounting, turbocharger

4шт.

7

J901961

NUT

hex, stud

4шт.

10

J913759

HOSE

Oil Supply, Turbocharger

1шт.

11

J903740

TUBE

oil drain, turbocharger

1шт.

12

J914388

GASKET

drain tube

1шт.

13

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

2шт.

14

J903745

LARGE HOSE

HOSE oil drain, turbocharger

1шт.

15

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

16

A77457

FITTING

CONNECTOR supply hose

1шт.

P/N A77457 is a 5/8"-18 x 1/4" pipe. If you need a 5/8"-18 x 7/16" male, order J916857 connector and 238-5013 O-ring.

1шт.
