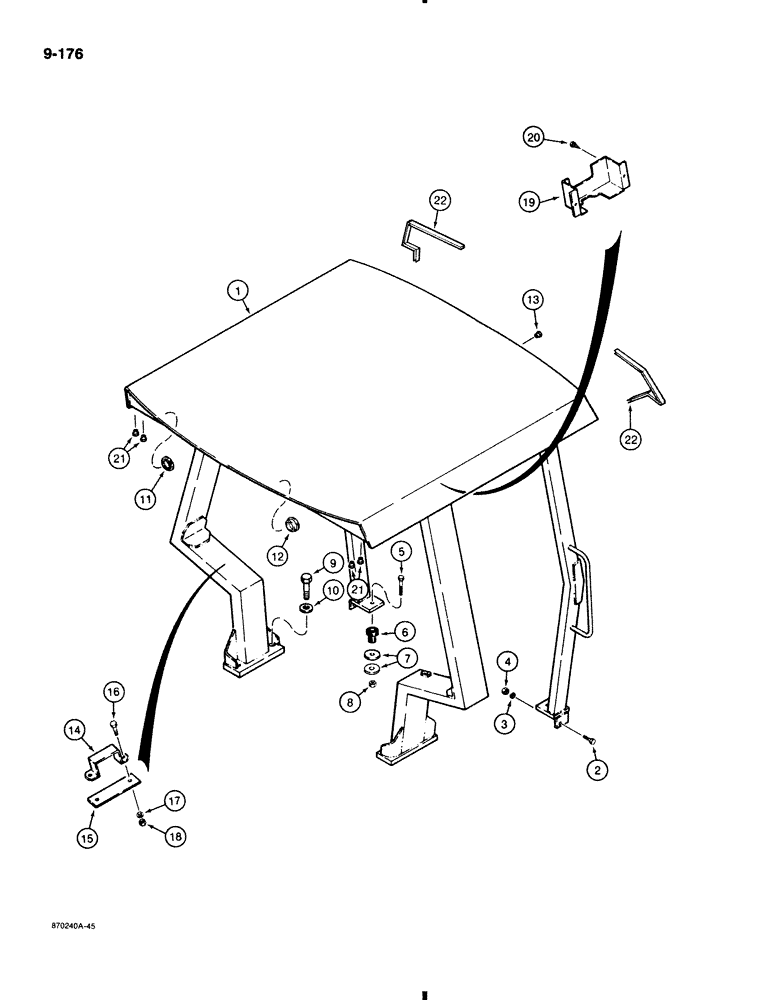

Запчасти Case 580K (9-176) - ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CANOPY ROPS, machinery item, order from Machinery Price List, Replaces: D104591

1шт.

No longer avail thru wholegoods, Replaces D104591, which now subs to primes

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex, attaches canopy to front corner of floor plate, 1/2" NC x 1-1/4"

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

23061R1

BOLT,Hex, 5/8" - 11 x 4", Gr 8

hex, mounts canopy to floor plate, 5/8" NC x 4"

2шт.

6

D138565

SHOCK ABSORBER

INSULATOR frame mounting

4шт.

7

D89007

WASHER

flat, hardened, special, 5/8"

2шт.

8

129-183

NUT,5/8"-11, G8

2шт.

9

426-1452

BOLT,Hex, 7/8" - 9 x 3-1/4", Gr 8

hex head, rear ROPS post mounting to fenders, 7/8" - 9 NC x 3-1/4", grade 8

4шт.

10

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

flat, hardened, 7/8"

4шт.

11

205-72

HOLE PLUG BUTTON,3"

PLUG button, steel, , 76 mm diameter, if used 3"

4шт.

12

353-417

PLUG,Dome, 2.000" hole, Nylon

nylon, 2", 51 mm diameter, if used

8шт.

13

353-405

PLUG,Dome, .562" hole, Nylon

nylon, 9/16" ,14 mm diameter, if used

4шт.

14

D136652

BRACKET

support, Serial Range: mounts-fenders

2шт.

15

D136653

PLATE

support bracket, mounts under fender

2шт.

16

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

425-106

NUT,3/8"-16, Cl 5

4шт.

19

D132337

COVER

wiring

1шт.

20

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW hex washer, self tapping, No. 10 - 24 x 3/8"

2шт.

21

353-405

PLUG,Dome, .562" hole, Nylon

nylon, 9/16", 14 mm diameter

4шт.

22

D60180

STRIP

TRIM edge, 14-1/2" long

2шт.
