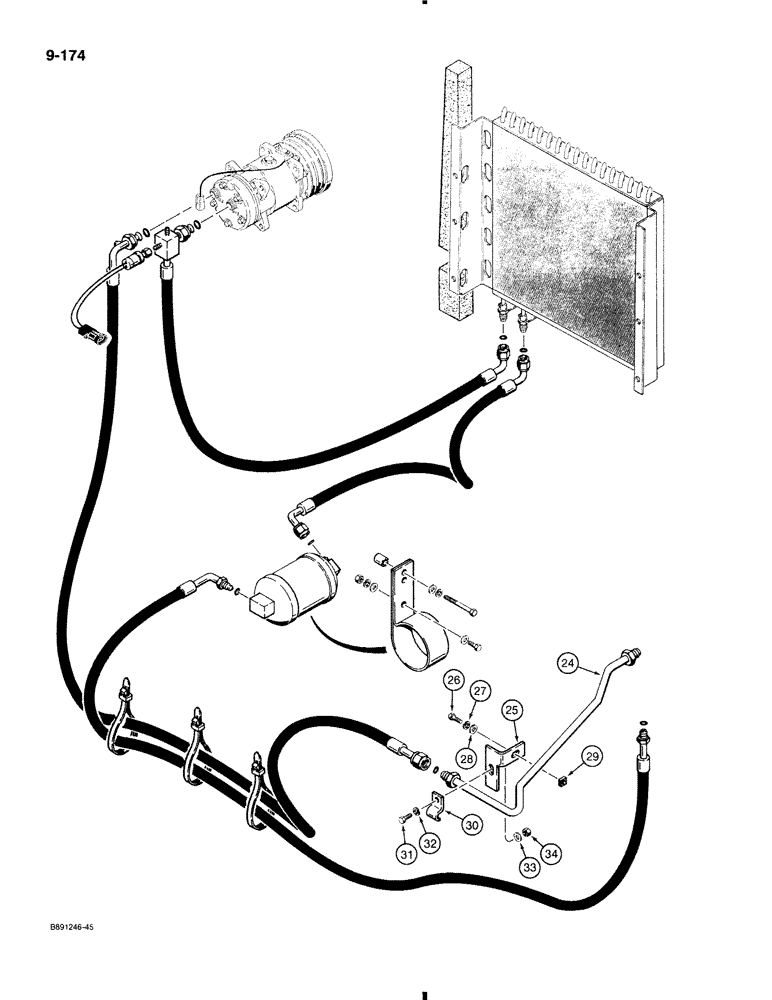

Запчасти Case 580K (9-174) - CONDENSER, RECEIVER-DRIER AND AIR CONDITTIONER LINES (09) - CHASSIS/ATTACHMENTS

24

D147486

PIPE

TUBE to cab tube

1шт.

25

D144908

SUPPORT

BRACKET air conditioner tube

1шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16" NC x 3/4"

1шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

28

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

1шт.

29

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

square, 5/16" NC

1шт.

30

D143430

CLAMP

tube

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8" NC x 1"

1шт.

32

492-11038

LOCK WASHER,3/8"

1шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

34

425-106

NUT,3/8"-16, Cl 5

1шт.
