(9-172) - CONDENSER, RECEIVER-DRIER AND AIR CONDITIONER LINES

Запчасти Case 580K (9-172) - CONDENSER, RECEIVER-DRIER AND AIR CONDITIONER LINES (09) - CHASSIS/ATTACHMENTS

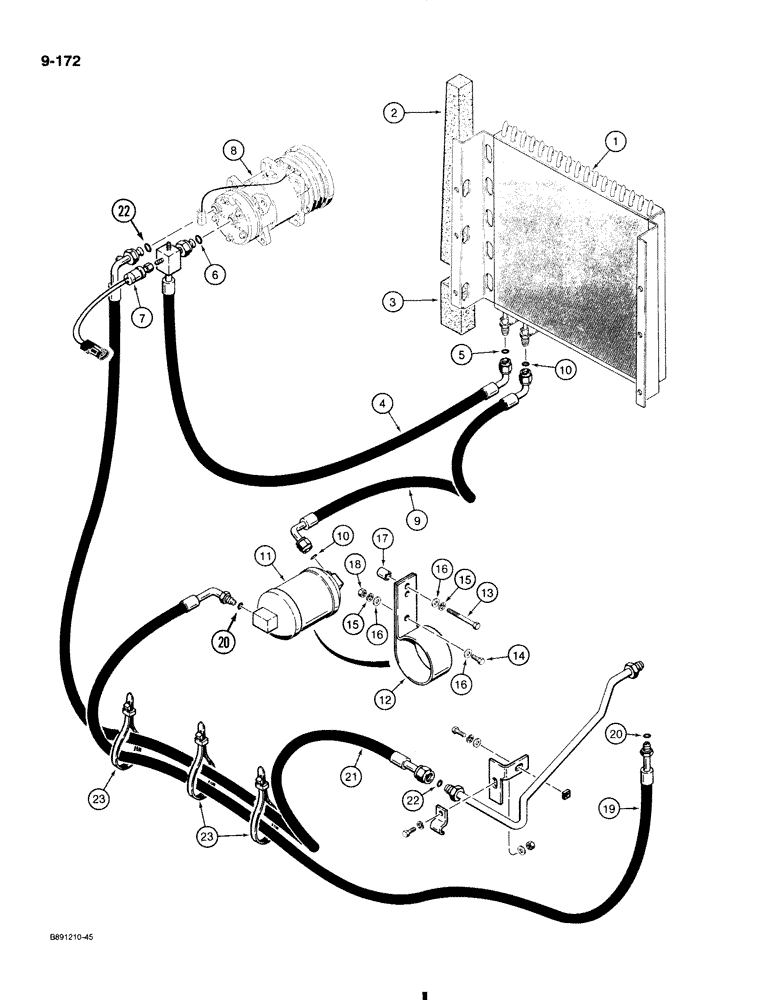

Схема запчастей Case 580K - (9-172) - CONDENSER, RECEIVER-DRIER AND AIR CONDITIONER LINES (09) - CHASSIS/ATTACHMENTS
10
11
17
16
13
5
23
15
6
10
22
14
20
18
7
2
8
4
9
16
15
3
12
22
1
20
23
21
16
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A189260

CONDENSER

coil, refrigerant cooler, uses existing oil cooler to radiator hardware

1шт.

2

D140840

FOAM

BAFFLE base size is 2-3/16", 55 mm x 17-3/4, 450 mm high, cut from D92228 bulk pad, see below

2шт.

3

D140841

FOAM

BAFFLE base size is 2-3/8", 60 mm x 3-15/16, 100 mm high, cut from D92228 bulk pad, see below

2шт.

4

1977418C1

A/C HOSE

compressor to condenser, 1160 mm long, Includes Ref. 5-6

1шт.

5

375271R1

O-RING,0.426" ID x 0.07" Width

7/16" x 9/16", Class 5

1шт.

6

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16" x 11/16", Class 5

1шт.

7

92038C1

SWITCH, A/C HIGH PRE

SWITCH air conditioning, high pressure cutout, attaches to main engine harness

1шт.

8

97204C1

COMPRESSOR

ASSEMBLY, air conditioning, parts list Figure 4-12, see Figure 4-16 for mounting

1шт.

97204C1R

COMPRESSOR

Reman compressor

1шт.

97204C1C

COMPRESSOR

Return Number

1шт.

8

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

8

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

9

1977419C1

HOSE

condenser to receiver-drier, 660 mm long, Includes Ref. 10

1шт.

10

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

2шт.

11

143469C2

RESERVOIR

RECEIVER-DRIER system

1шт.

12

D145289

SUPPORT

BRACKET receiver-drier

1шт.

13

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8" NC x 1"

1шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

17

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

bracket

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

1977420C1

HOSE

receiver-drier to cab tube, 3322 mm long, Includes Ref. 20

1шт.

20

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

2шт.

21

1977417C1

HOSE

compressor to cab base, 3050 mm long, Includes Ref. 22

1шт.

22

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16" x 11/16", Class 5

2шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15"

3шт.

D92228

BAFFLE

bulk pad, 900 mm x 1400 mm x 38 mm

1шт.

345-44

ADHESIVE

spray can, for attaching foam pads to metal surfaces

1шт.
