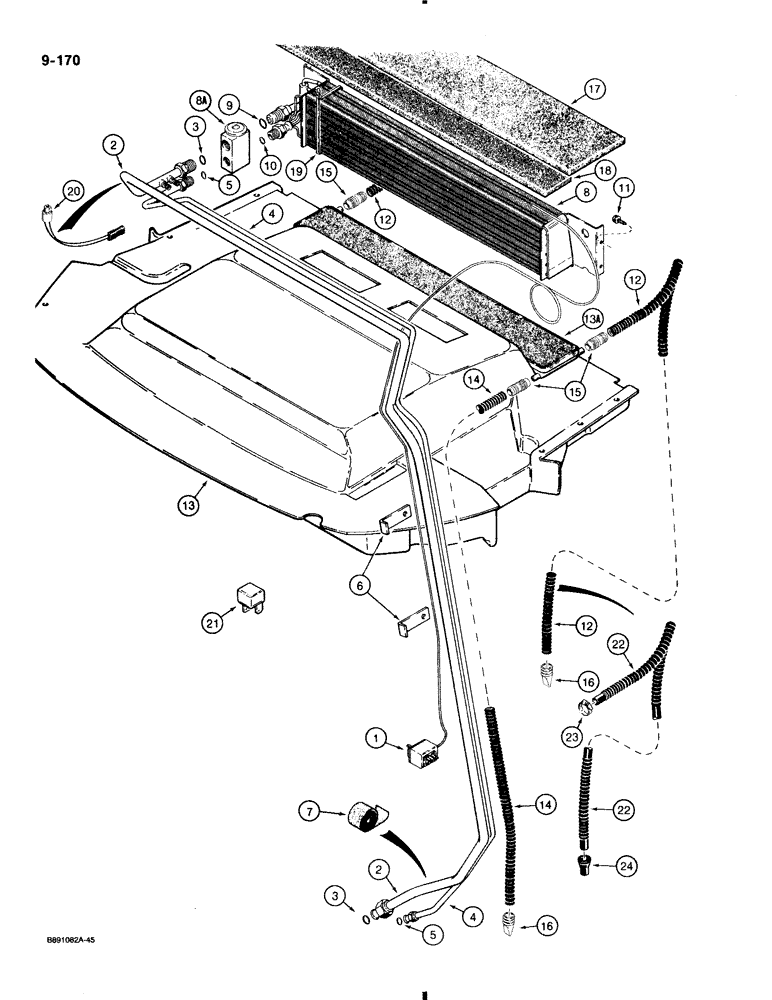

Запчасти Case 580K (9-170) - CAB AIR CONDITIONER (09) - CHASSIS/ATTACHMENTS

1

1340287C1

SWITCH

temperature control, air conditioning

1шт.

2

1977421C1

TUBE

suction, Includes Ref. 3

1шт.

3

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

tube

2шт.

4

1977422C1

TUBE

pressure, Includes Ref. 5

1шт.

5

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Tube

2шт.

6

R53634

SHIN

CLAMP bracket, mounts to ROPS post stud with existing heater tube mounting nut

2шт.

7

1954475C1

ROLL

TAPE cork, insulating, bulk roll, 30 ft, 9150 mm long

1шт.

8

1340493C3

EVAPORATOR

CORE evaporator, Includes Ref. 8A-10

1шт.

8a

98370C3

VALVE

evaporator

1шт.

9

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

upper, core

1шт.

10

375271R1

O-RING,0.426" ID x 0.07" Width

lower, core

1шт.

11

187-1310

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW hex flange, self-tapping, 1/4" NC x 3/4"

4шт.

12

1340449C1

HOSE front drain, 11/16" 17 mm OD x 110, 2794 mm long, no longer used, order Ref. 22 through 24

2шт.

13

R54009

LINING

HEADLINER rear section

1шт.

13a

1974613C2

HOUSING

PAN condensation drain, Includes foam

1шт.

14

1276525C1

FLAP

HOSE rear drain, 90", 2286 mm long, cut from 198091C2 bulk hose, Replaces: 80" long hose used on some models

2шт.

15

1250522C3

FITTING

TUBE adapter, drain

2-4шт.

16

109239C2

CHECK VALVE

VALVE, CHECK, Rubber, Ref 12 and 14 drain hose

2-4шт.

17

F45457

INSULATOR

SEAL heater and air conditioner cores, foam, adhesive back

1шт.

18

1338301C1

SEAL

SEAL core

1шт.

19

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP tie

2шт.

20

92153C1

SWITCH

low pressure

1шт.

21

146461C1

RELAY

30 ampere, connects to cab harness

1шт.

22

F45410

TUBE

HOSE front drain, 5/8 ,15 mm OD x 110 inch, 2794 mm long, cut from F64508, see below

2шт.

23

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

if used #4, 0.25/0.62 Type F Worm

2шт.

24

F44790

VALVE

END rubber, Ref. 22 drain hose, if used

2шт.

198091C2

HOSE

bulk, drain, 11/16, 17 mm OD x 50 ft, 15240 mm long

1шт.

F64508

HOSE,0.43" ID x 100' Bulk

drain 0.43" ID x 100' Bulk

1шт.
