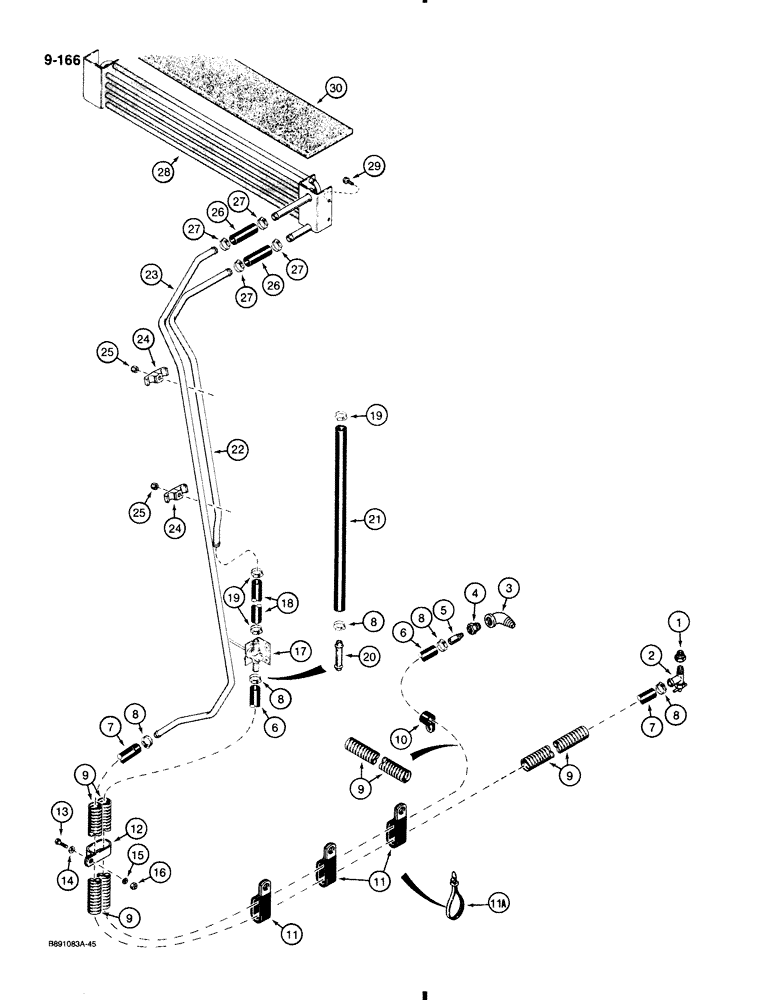

Запчасти Case 580K (9-166) - CAB HEATER (09) - CHASSIS/ATTACHMENTS

1

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

1/2" x 3/8" NPT, Replaces: existing plugs

1шт.

2

A16764

VALVE

shutoff, right hand side of engine, at water pump

1шт.

3

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

street, 90 degree, galvanized, 1/2" NPT

1шт.

4

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

1/2" x 3/8" NPT

1шт.

5

L17985

FITTING,3/8" - 18 NPT

NIPPLE left hand side of engine, 3/8" NPT

1шт.

6

D136068

LARGE HOSE,0.63" ID, SAE 20R3 Class D1

HEATER HOSE - LH, Mounts to heater temperature control valve, 104-1/16" (2642 mm), Cut to required length from A42610 bulk hose, See below 0.63" ID, SAE 20R3 Class D1

1шт.

Used in production with D136068 124 inch hose, Ref. 6, for ease of pod assembly; however, Refs. 20 and 21 are not required for service if Ref. 6 hose is cut to 146 inches instead of 124 inches.

1шт.

7

D132977

LARGE HOSE,0.63" ID, SAE 20R3 Class D1

HEATER HOSE - RH (112-21/64", 2853 mm), Cut to required length from A42610 bulk hose, See below 0.63" ID, SAE 20R3 Class D1

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP heater hoses

5шт.

9

D132982

PADDLE,26.87mm ID x 400mm L

SLEEVE hose guard

4шт.

10

R14668

CLAMP

left hand hose, uses existing mounting hardware

1шт.

11

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

hose

1-3шт.

11a

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, if used

1шт.

12

D132978

CLAMP

hose, at right hand console

1шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

14

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, plated, 3/8"

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

R52483

VALVE

temperature control, heater, see Figure 9-154 for mounting

1шт.

18

R54968

HEATER HOSE,15.50 mm ID x 205.00 mm

- Temperature control valve to heater inlet tube, Cut to required length from bulk hose, See below 15.50 mm ID x 205.00 mm

1шт.

19

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP worm screw type, hose

3шт.

20

S104739

TUBE,0.625" OD x 3" L

5/8", 16 mm ID x 22", 76 mm long, used in production, not required for service

1шт.

Used in production with D136068 124 inch hose, Ref. 6, for ease of pod assembly; however, Refs. 20 and 21 are not required for service if Ref. 6 hose is cut to 146 inches instead of 124 inches.

1шт.

21

R54969

HEATER HOSE,15.50mm ID x 292mm L

used in production, not required for service 15.50 mm ID x 292.00 mm

1шт.

Used in production with D136068 124 inch hose, Ref. 6, for ease of pod assembly; however, Refs. 20 and 21 are not required for service if Ref. 6 hose is cut to 146 inches instead of 124 inches.

1шт.

22

R52504

HEATER TUBE,15.88 mm OD

TUBE heater inlet

1шт.

23

R52505

HEATER TUBE,15.88 mm OD

TUBE heater outlet

1шт.

24

R52657

CLAMP

plastic, tube, mounts on stud on ROPS post

2шт.

25

131-206

NUT,3/8"-16

NUT hex, self locking, 3/8" - 16 NC

2шт.

26

R54967

HEATER HOSE,15.50 mm ID x 70.00 mm

- Heater core to tubes, Cut to required length from bulk hose 97252C1, See below 15.50 mm ID x 70.00 mm

2шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.

A42610

LARGE HOSE

HOSE bulk, 5/8", 16 mm x 1", 25 mm x 50 ft, 1524 cm

1шт.

27

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP worm screw type, hose

4шт.

28

1338312C2

HEATER

CORE heater, mounts to cab frame

1шт.

29

187-1310

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW hex flange head, self tapping, 1/4" NC x 3/4"

4шт.

30

F45457

INSULATOR

SEAL heater and air conditioner, foam, adhesive back

1шт.
