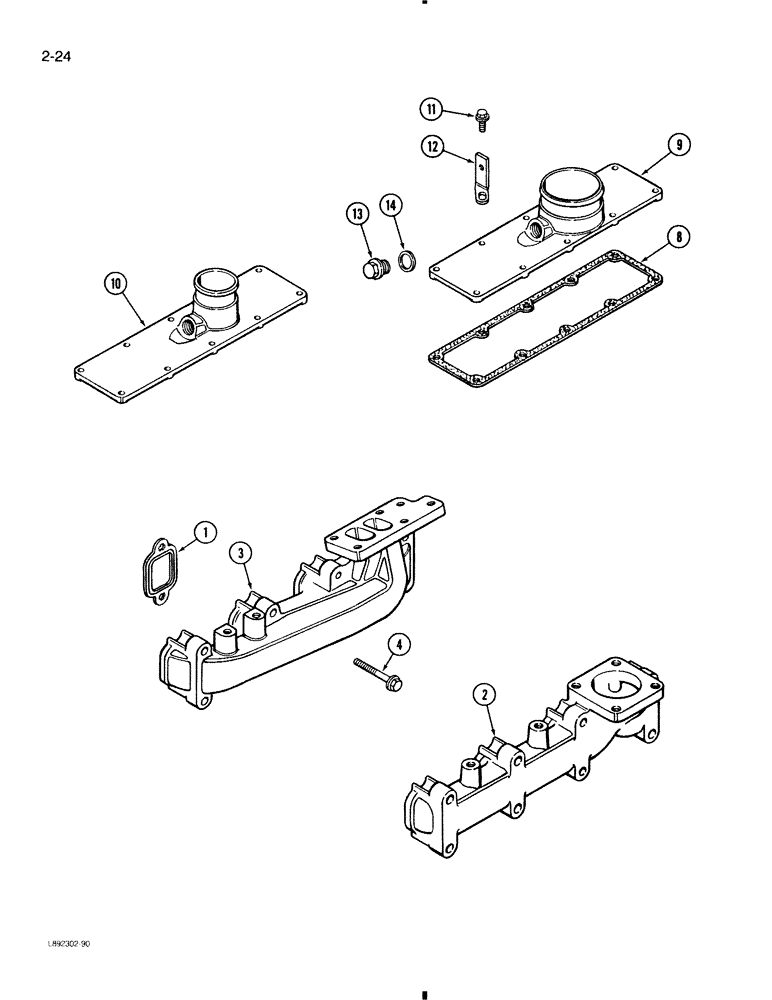

Запчасти Case 580K (2-024) - MANIFOLDS, EXHAUST, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J905443

MANIFOLD GASKET

exhaust manifold

4шт.

2

J901223

MANIFOLD

exhaust, natural aspirated

1шт.

3

J901919

MANIFOLD

exhaust, turbocharged

1шт.

4

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- hex flange, 10 mm - 1.50 x 65 mm, 10.9

8шт.

8

J914028

GASKET

intake manifold

1шт.

9

NSS

NOT SOLD SEPARAT

MANIFOLD intake, natural aspirated

1шт.

Part of intake manifold kit P/N A77415.

1шт.

10

NSS

NOT SOLD SEPARAT

MANIFOLD intake, turbocharged

1шт.

Part of intake manifold kit P/N A77416.

1шт.

11

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake manifold, Replaces J904341 Hex Flg Hd, M8 x 1.25 x 25

10шт.

12

NSS

NOT SOLD SEPARAT

BRACE fuel tube, intake, see Figure 3-010

1шт.

13

J907185

PLUG

ASSEMBLY, manifold, intake

1шт.

Part of intake manifold kit P/N A77415.

1шт.

Part of intake manifold kit P/N A77416.

1шт.

14

J906773

WASHER

plug sealing, intake

1шт.

Part of intake manifold kit P/N A77415.

1шт.

Part of intake manifold kit P/N A77416.

1шт.

A77415

COVER

KIT intake manifold, natural aspirated, Includes: Ref. 9, 13 and 14

1шт.

A77416

COVER

KIT intake manifold, turbocharged, Includes: Ref. 10, 13 and 14

1шт.
