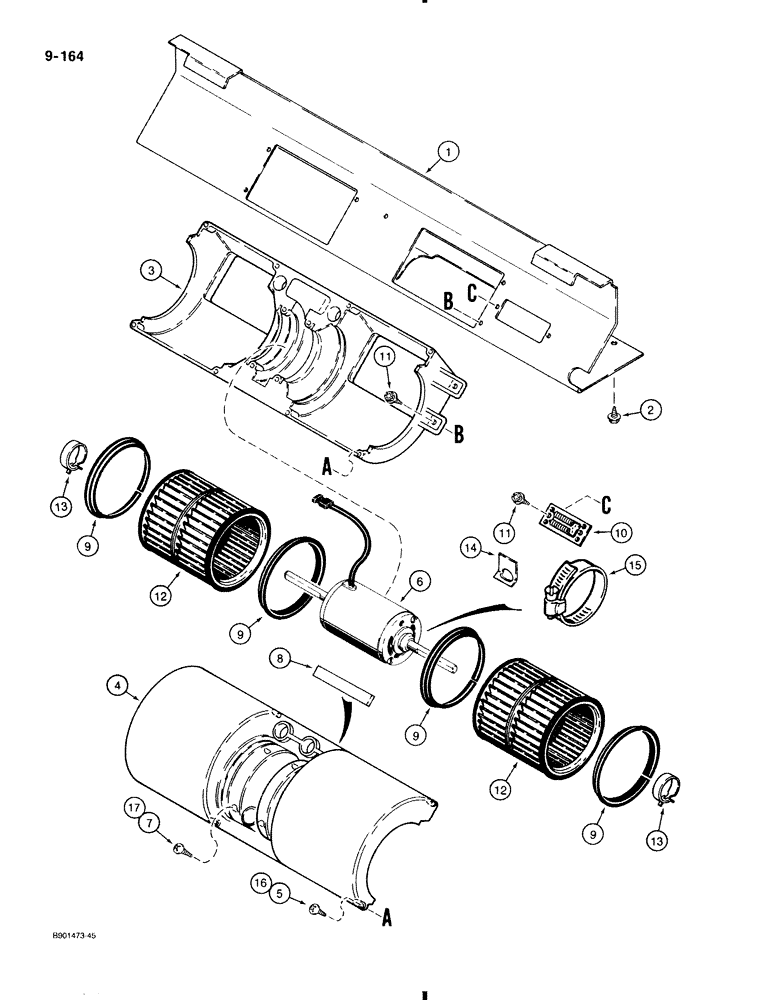

Запчасти Case 580K (9-164) - CAB BLOWER (09) - CHASSIS/ATTACHMENTS

1

D126301

BRACKET

blower mounting

1шт.

2

187-1310

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT hex flange head, self tapping, 1/4 NC x 3/4"

5шт.

3

F64740

HOUSING

fans, lower

1шт.

4

F64741

HOUSING

fans, upper

1шт.

5

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW pan head, self tapping, No. 8 - 16 x 3/4", if used

8шт.

6

R54415

MOTOR, ELECTRIC

MOTOR blower, 12 volt

1шт.

7

187-1920

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW pan head, self tapping, No. 8 - 16 x 1", if used

4шт.

8

F64816

FOAM

SEAL foam, upper fan housing, if used, 3/4" wide x 1/8" thick x 4" long, cut from F64119 bulk seal, see below

1шт.

9

F64739

RING

plastic, fan retaining

4шт.

10

F44900

RESISTOR

blower

1шт.

11

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW hex washer, slotted, self tapping, No. 10 - 16 x 1/2"

6шт.

12

F64935

BLOWER,Fan

FAN blower

2шт.

13

F64936

CLAMP

steel spring

2шт.

14

R51563

CLIP,ELECTRICAL

CLIP motor retaining clamp

1шт.

15

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP adjustable, motor retaining

1шт.

16

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, , If used Cross Pan Hd, M4.8 x 19, Coated

8шт.

17

187-1928

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW self tapping, pan Phillips, No. 10 - 16 x 1", if used

4шт.

F64119

SEALING STRIP

SEAL bulk, foam, 100 ft, 3048 cm long

1шт.
