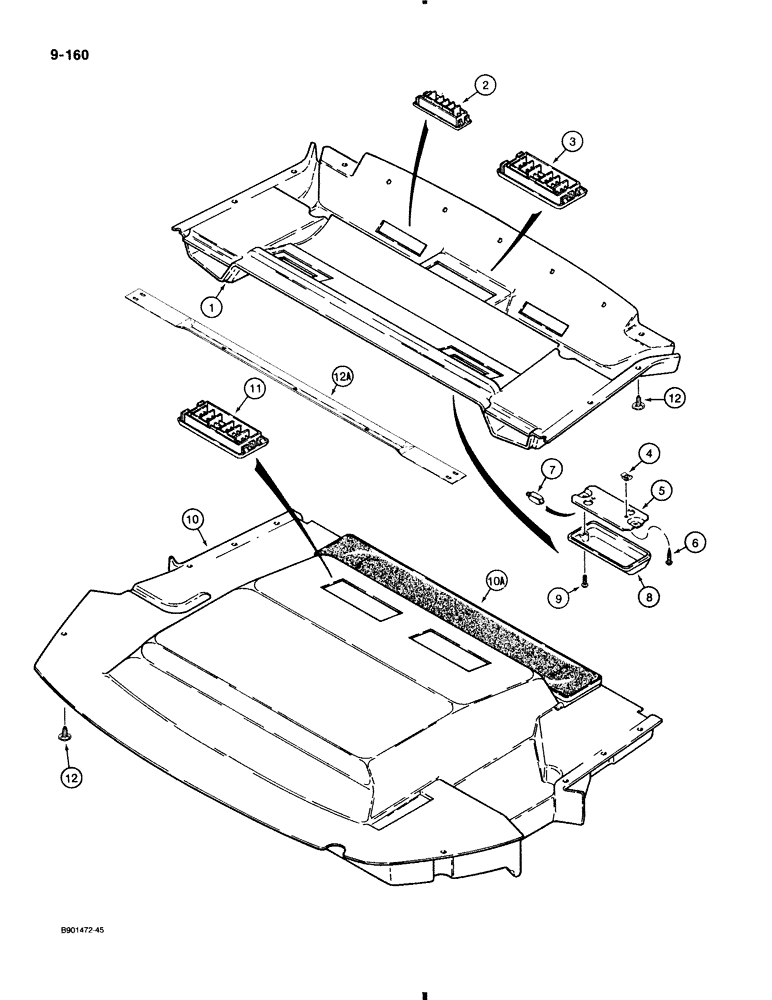

Запчасти Case 580K (9-160) - CAB HEADLINER, LOUVERS, AND DOME LAMPS (09) - CHASSIS/ATTACHMENTS

1

R54000

LINING

HEADLINER front section, two dome lamps, if used

1шт.

1a

1987100C1

ROOF LINING

HEADLINER front section, one dome lamp, if used, not shown

1шт.

2

R54201

GUARD

LOUVER front defrost

2шт.

3

L109555

GUARD

LOUVER main, front headliner

3шт.

4

131-861

SPRING NUT,Tinn, U, #10-24

Cab dome lamp retaining Tinn, U, #10-24

2-4шт.

Ok to use 131-121 nut instead

1шт.

R53755

LIGHT ASSY.,12V

LAMP ASSEMBLY dome, 12 volt, front headliner, Includes Ref. 5-8

1-2шт.

5

NSS

NOT SOLD SEPARAT

BASE dome lamp

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW special, Serial Range: base-headliner

2шт.

7

N14466

BULB

dome lamp

1шт.

8

N14465

LENS

dome lamp

1шт.

9

182-526

SCREW,Cross Pan Hd, #10 - 24 x 3/8"

machine, base to lens, pan Phillips head, No. 10 - 24 NC x 3/8"

2-4шт.

10

R54009

LINING

HEADLINER rear section, complete

1шт.

10a

1974613C2

HOUSING

PAN condensation, Includes foam

1шт.

11

L109555

GUARD

LOUVER recirculation and rear defrost, rear headliner

4шт.

12

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW self tapping, headliner to cab frame, Phillips, with washer, No. 10 - 16 x 3/4"

17шт.

12a

1981928C2

SUPPORT

headliner

1шт.

13

1954737C1

INSULATOR

HEADLINER cab, not shown, special parts used on models without air conditioning

1шт.

14

R54201

GUARD

LOUVER defrost, not shown, special parts used on models without air conditioning

2шт.

15

L109555

GUARD

LOUVER rectangular, not shown, special parts used on models without air conditioning

5шт.

16

1954784C1

BRACKET

headliner support, not shown, special parts used on models without air conditioning

1шт.

17

187-1310

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW hex flange head, self-tapping, 1/4" NC x 3/4", special parts used on models without air conditioning, not shown

4шт.
