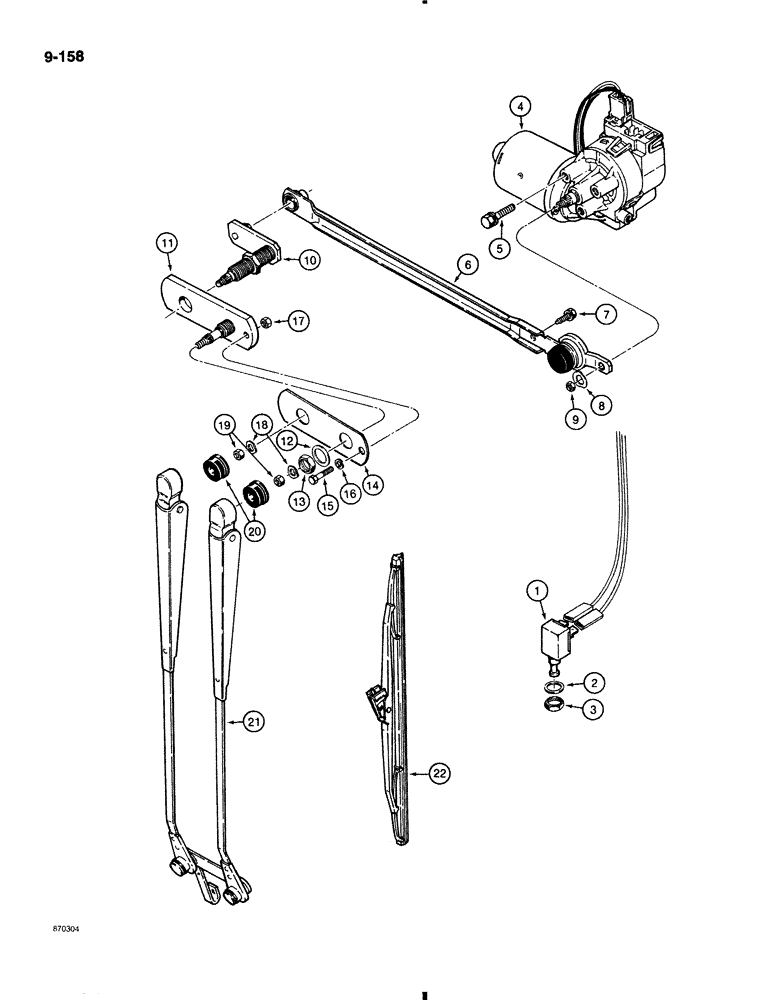

Запчасти Case 580K (9-158) - CAB REAR WINDSHIELD WIPER (09) - CHASSIS/ATTACHMENTS

1

A187714

PUSH BUTTON SWITCH

- wiper stop, mounts to window frame inside filter compartment

1шт.

2

A165395

WASHER,.50mm ID x 1.0mm OD x .060 Thk

flat, 1/2" x 1" x 1/16", used as a seal

1шт.

Reference artwork for Ref. 2 and 3 - there may also be a 2nd washer, 495-21044, installed between Ref. 2 and 3.

1шт.

3

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

1шт.

Reference artwork for Ref. 2 and 3 - there may also be a 2nd washer, 495-21044, installed between Ref. 2 and 3.

1шт.

4

D128017

WIPER MOTOR

MOTOR rear windshield wiper, 12 volt

1шт.

5

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW with washer, special, motor to cab frame

3шт.

D128018

LINK

rear wiper, motor to wiper pivot shafts, Includes Ref. 6-7

1шт.

6

NSS

NOT SOLD SEPARAT

LINK crank

1шт.

7

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW with washer special

1шт.

8

N8361

SPRING WASHER

wave, special

1шт.

9

L112090

NUT

hex, special, 8 mm

1шт.

10

D128020

SHAFT

pivot, with ball, Includes nut

1шт.

11

D128021

SHAFT

pivot

1шт.

12

L112088

WASHER

special, large, shaft

1шт.

13

L112087

NUT

special, large, shaft

1шт.

14

D128019

GASKET

black, if used

1шт.

15

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

18

L112089

WASHER

wave, special, shaft end

2шт.

19

L112090

NUT

hex, special, 8 mm, shaft end

2шт.

20

L112081

CAP

pivot shaft end

2шт.

21

R52408

WIPER ARM

ARM rear windshield wiper

1шт.

22

D128022

WIPER BLADE

BLADE rear windshield wiper

1шт.
